1001955166

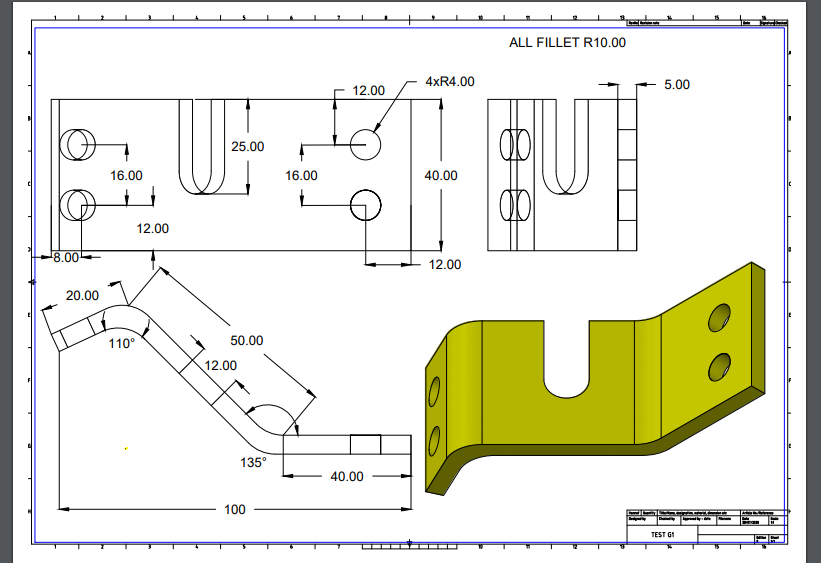

How do I bend the plate in the diagram? I did the whole object flat, sliced it and tried to rotate but it doesn't connect smoothly as shown.

Any help would be really appreciated.

Annotation 2020-07-28 195013.png

plate.dwg

Share this post


Link to post
Share on other sites
Dadgad

Model it with the curve already built in.

Draw the lower left corner view, then either use EXTRUDE or PRESSPULL to create the width of 40.

If you want to use EXTRUDE you will need to create a closed polyline when you draw it.

PRESSPULL is much more user friendly and forgiving.

After you have done one of those you will have the overall 3D Model from which you can either SUBTRACT or use PRESSPULL again for the holes and void.



Check out this tutorial.   https://www.cadtutor.net/tutorials/autocad/extrude-and-press-pull/
