Creating an extrude boss with an angle

Recommended Posts

MANcad

Hello to my Solid help friend,

I have a basic knowledge with the Solidworks software.

Recently I have been trying to return to use the software with some difficulties.

in my sketch I have created a 90° pipe configuration.

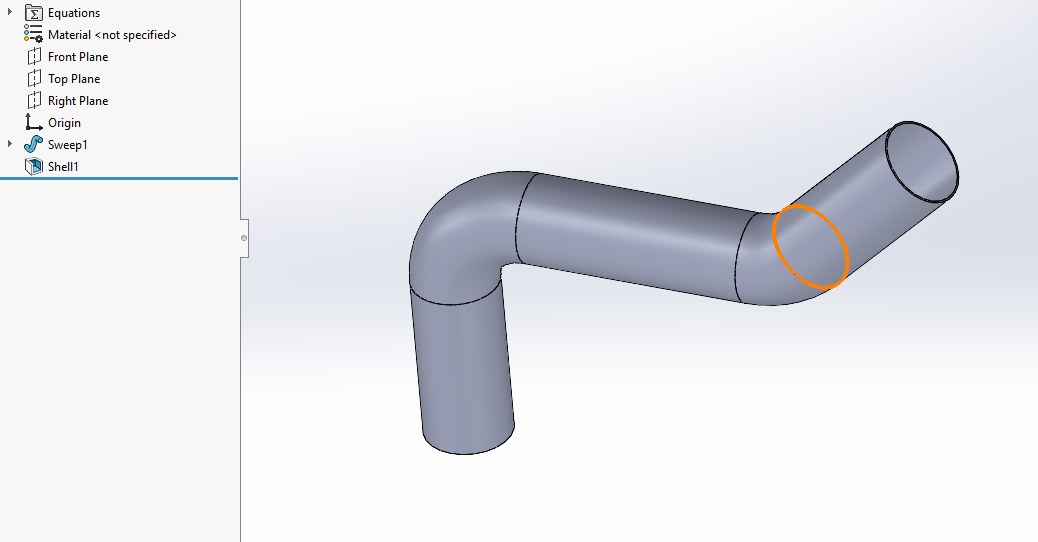

I am trying to add another pipe ( with same diameter and wall thickness ) with a 45° angle to the right of the assembly.

I will appreciate any tips/help to perform the task.

I am using a Solid 2016 Ver.

Regards,

MANcad.

Part3.SLDPRT

Share this post


Link to post
Share on other sites
Hrki

I will use different approach.

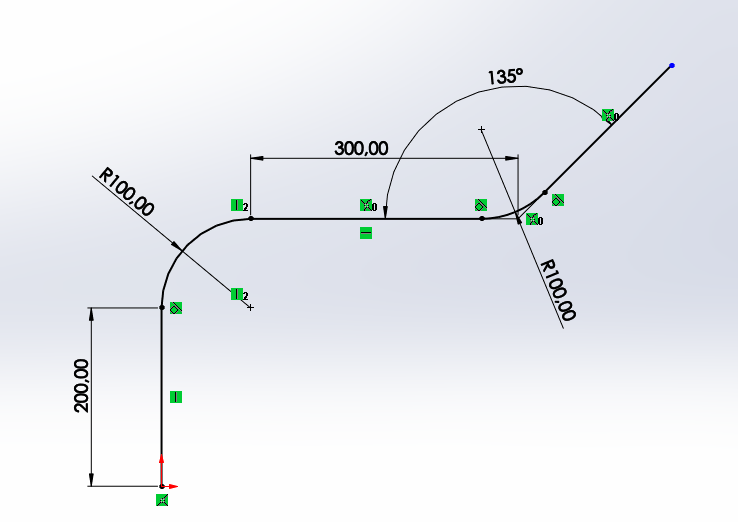

First draw center line axis for pipe (do not use construction lines because Sweep wont work).






And with Sweep + Shell u can do the rest.






EDIT: U can use Weldments as well.



Edited by Hrki

Share this post


Link to post
Share on other sites
