Circle, 2 Points, Along Axis of 2 Points - How to Orient?

[GregGleason]

I am trying to do a lisp routine  where I click on two points.  The center of the circle is on the first point and has a fixed radius or diameter.  The circle has as its axis an imaginary line between the two points.



Getting the two points is easy enough, but how do I orient the circle along the imaginary line?  The two points will be typically non-orthagonal (I don't know if that makes a difference though).



Greg

[ronjonp]

A before and after pic/dwg would help.

[lrm]

7 hours ago, GregGleason said:

I am trying to do a lisp routine  where I click on two points.  The center of the circle is on the first point and has a fixed radius or diameter.  The circle has as its axis an imaginary line between the two points.



Getting the two points is easy enough, but how do I orient the circle along the imaginary line?  The two points will be typically non-orthagonal (I don't know if that makes a difference though).



Greg





Should "The circle has as its axis an imaginary line between the two points" be interpreted to mean that the circle lies on a plane perpendicular to the line defined by the two points?

[GregGleason]

2 hours ago, lrm said:





Should "The circle has as its axis an imaginary line between the two points" be interpreted to mean that the circle lies on a plane perpendicular to the line defined by the two points?



Yes.  I should have been more clear, but that is it exactly.

Greg

[GregGleason]

10 hours ago, ronjonp said:

A before and after pic/dwg would help.

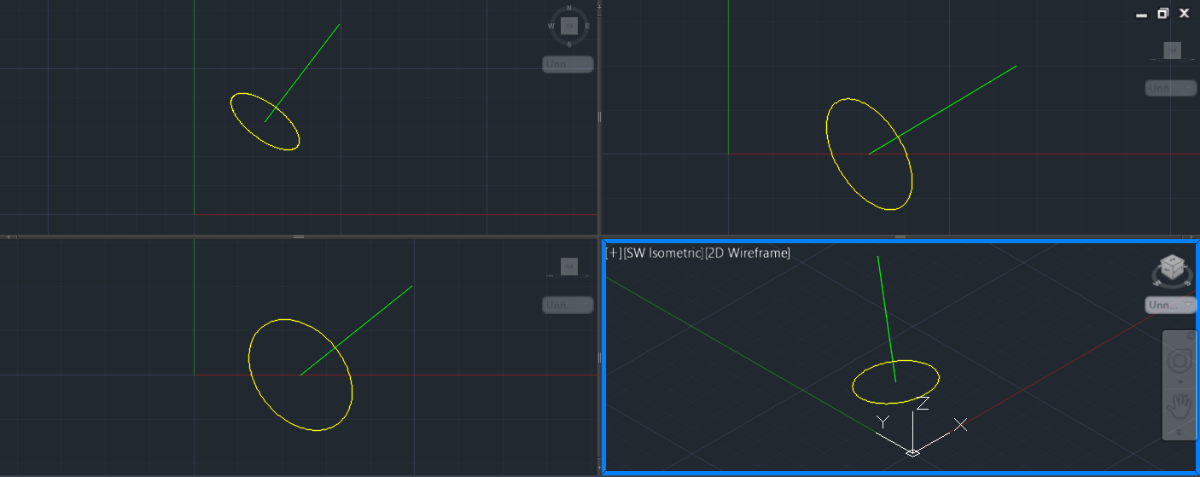

Here is a 4-view that is an "after".  Upper left is top.  Upper right is right, lower left is front, and lower right is isometric 1.  The green line represents two points.

Greg

[Jonathan Handojo]

Like this?



(defun c:foo ( / nrm p1 p2 rad)
    (and
	(setq rad 10)	; Can be modified to getdist if desired, or else this will do
	(setq p1 (getpoint "\nSpecify first point <exit>: "))
	(setq p2 (getpoint p1 "\nSpecify second point <exit>: "))
	(progn
	    (setq p1 (trans p1 1 0)
		  p2 (trans p2 1 0)
		  nrm (vx1 (mapcar '- p2 p1))
		  )
	    (entmake
		(list
		    '(0 . "LINE")
		    (cons 10 p1)
		    (cons 11 p2)
		    )
		)
	    (entmake
		(list
		    '(0 . "CIRCLE")
		    (cons 10 (trans p1 0 nrm))
		    (cons 40 rad)
		    (cons 210 nrm)
		    )
		)
	    )
	)
    )

;; Unit Vector  -  Lee Mac
;; Args: v - vector in R^2 or R^3

(defun vx1 ( v )
    (   (lambda ( n ) (if (equal 0.0 n 1e-10) nil (mapcar '/ v (list n n n))))
        (distance '(0.0 0.0 0.0) v)
    )
)



Edited August 7, 2021 by Jonathan Handojo

[GregGleason]

6 hours ago, Jonathan Handojo said:

Like this?



(defun c:foo ( / nrm p1 p2 rad)
    (and
	(setq rad 10)	; Can be modified to getdist if desired, or else this will do
	(setq p1 (getpoint "\nSpecify first point <exit>: "))
	(setq p2 (getpoint p1 "\nSpecify second point <exit>: "))
	(progn
	    (setq p1 (trans p1 1 0)
		  p2 (trans p2 1 0)
		  nrm (mapcar '- p2 p1)
		  )
	    (entmake
		(list
		    '(0 . "LINE")
		    (cons 10 p1)
		    (cons 11 p2)
		    )
		)
	    (entmake
		(list
		    '(0 . "CIRCLE")
		    (cons 10 (trans p1 '(0.0 0.0 1.0) (vx1 nrm)))
		    (cons 40 rad)
		    (cons 210 nrm)
		    )
		)
	    )
	)
    )

;; Unit Vector  -  Lee Mac
;; Args: v - vector in R^2 or R^3

(defun vx1 ( v )
    (   (lambda ( n ) (if (equal 0.0 n 1e-10) nil (mapcar '/ v (list n n n))))
        (distance '(0.0 0.0 0.0) v)
    )
)





Thank you Jonathan Handojo!  That is what I was shooting for!  I need to study the Unit Vector by Lee Mac to see if I can get an understanding of how this works.  Truly amazing solve and I appreciate it!



Greg

[BIGAL]

The Cal function NOR may be useful, "Calculating a Normal Vector", nor(p1,p2)
