Create Multiple View Frame on Polyline

[benzson11]

Hi Everyone,



I had been trying to modify a lsp that I found online.
1. create a viewframe layout on blocks with increment numbering. -lisp from online
2. create view frame along polyline - lisp is added but need to imrove
3. to be able to identify the starting point of view frame.

I have attached the lisp that I'm currently working on the view frame block is also included with the sample drawing.

I welcome any suggestion and comment to improve this routine.

Thanks

Create_Multiple_Viewframe(PP).lsp sample.dwg Model_Workspace_XREF_SC1-1000.dwg

[mhupp]

Another option from @maratovich





[maratovich]

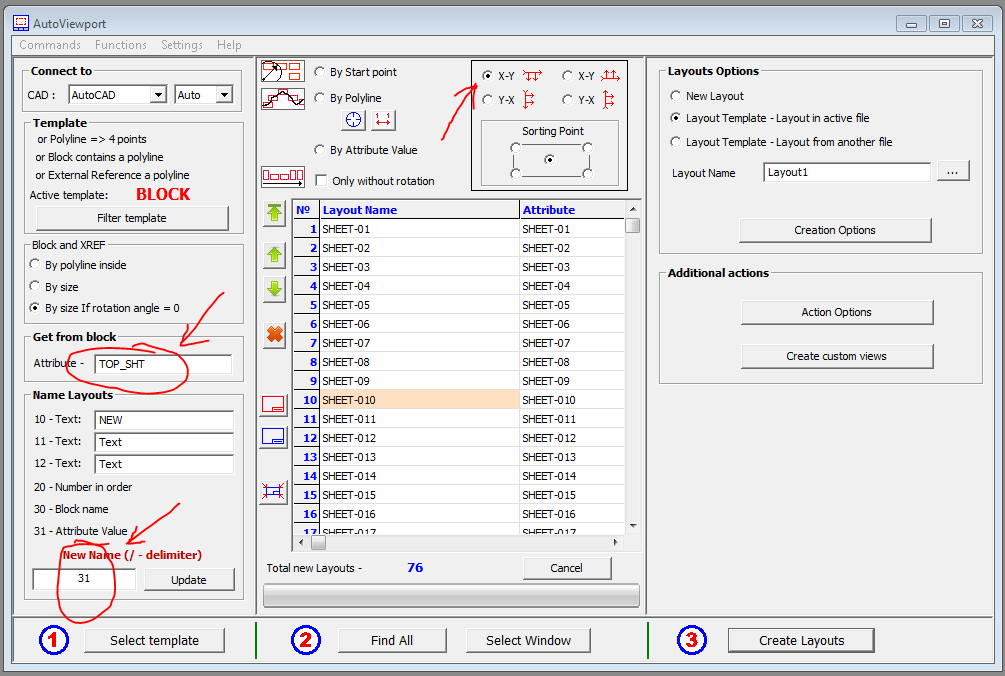

example

[benzson11]

@maratovich I think what your software will do is create a layout from the exisitng viewframe. what Im trying to achieve is to create a viewframe on the model space along the Polyline. I already have a lisp routine that will create a multiple layout from given viewframe.




Edited August 26, 2021 by benzson11

[maratovich]

1. I gave you a picture of an example - you did the opposite with different settings.
2. There are video tutorials - you need to watch.

Why did you choose "20"? Default Auto ...
Didn't select Template ...

[BIGAL]

You dont need a block just a rectang of the correct size based on your final plot scale for a titleblock. Using a repeat function that works out the spacing. Including how much to overlap. Happy to provide for a donation. Or look at measure and divide using a block.
