LISP FOR KEEP ORIGINAL LAYER WHEN USING COMMAND '' FLATSHOT''

[Trai]

Dear all,

In my model 3D solid have many layers. When I used the command '' FLATSHOT'' to make a 2D arrangement drawing. I want to make this command that all original layers will be kept. For example, in my model have 3 parts, each part will be one layer then I will FLATSHOT command. The 2D drawing will be layer similar vs layer in 3D model. Someone can help me a lisp to make it.

Thank all

[mhupp]

Make a copy of what you want to flatten.

switch to the view you want to see the flatten object. (top, sides, ortho)

Use flatten and overkill command on copied object.

[nekonihonjin]

command SECTIONPLANE

"T"  for type

"S" for slice

"O" for Orthographic

"T" for top

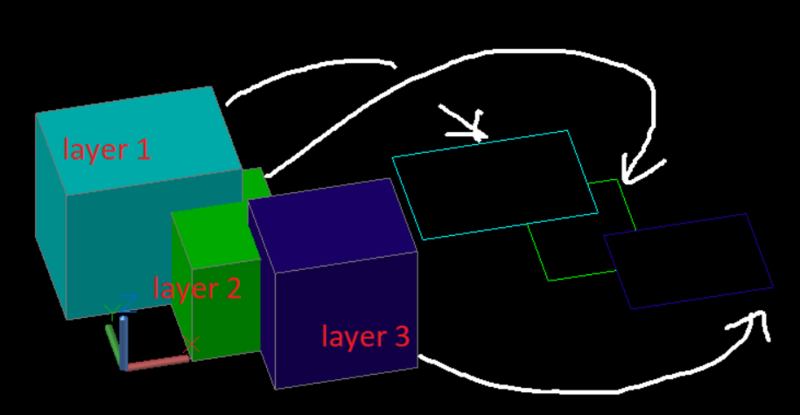

while livesection is on, select the sectionplane just created, a section tab should appear, there go up the slices until surpassing the highest point of your solids and in the slice widht put a number that can enclose all solids (for expla the highest cube in the example above is 100m tall, you put 150

now you have a slice the whole solid thick.



now click "generate section block"



in section settings, go to background lines:  show:yes

color: Bylayer

layer: go all the way up until *layerByObject*_backgroundlines   shows up and select it.



now "OK" and "Create"
