Dimension that has no lines still shows them with Over Ext Line set

[3dwannab]

The dim (attached) has this enabled and also has the lines suppressed in the Lines tab.

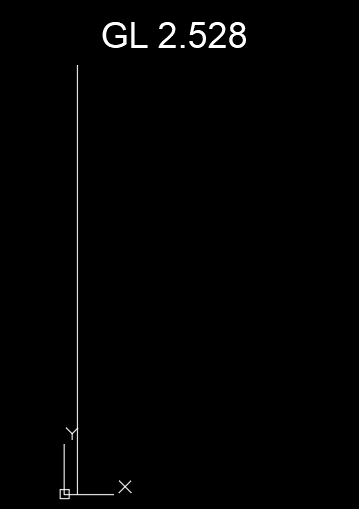

The lines still shows even though this is checked.



Is this a bug or any way to use Over Ext Line while not having the lines shown like below:

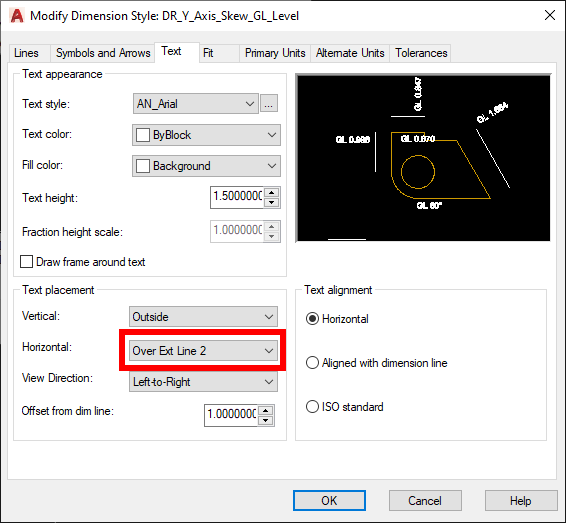

Settings of the dim style below. Note: If At Ext Line is chosen then it works and the lines don't appear.



Dim.dwg

[BIGAL]

You can push the dimension text to any where you want, you make the dim then move it.



May work not tested on your dwg set text to normal position



do a dim

(setq obj (vlax-ename->vla-object (entlast)))
(vlax-put obj 'TextMovement 1)
(setq tpos (mapcar '+ (vlax-get obj 'TextPosition) (list -50 -125.0 0.0)))
(vlax-put obj 'TextPosition tpos)





Edited April 28, 2022 by BIGAL

[3dwannab]

Thanks Bigal as always.



A lisp routine isn't really useful. I'm the only person in the office with AutoCAD and not LT so this wouldn't be ideal.



Do this appear to you as a bug?
