AutoLISP for polyline label with Layer Name and Length

Sun_CAD

By Sun_CAD
in AutoLISP, Visual LISP & DCL

 Share

Recommended Posts

Sun_CAD Newbie

Sun_CAD

Posted
Posted

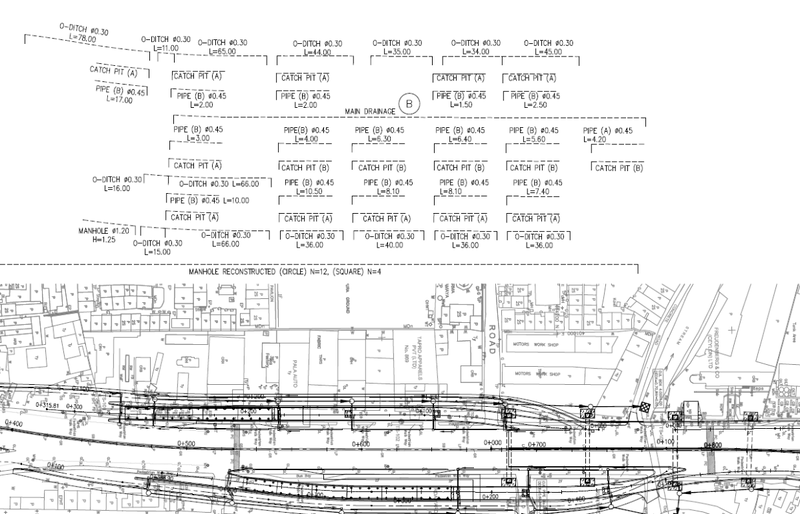

I need to make a label like the below image
offset a selected polyline, add a text label with the layer name and polyline length, and draw perpendicular lines at the start and end points of the new polyline.
Does anybody have AutoLisp for that?



Emmanuel Delay Proficient

Emmanuel Delay

Posted
Posted

Hi, could you provide a simplified drawing (dwg file), please?
