oZafin Posted April 21, 2009 Posted April 21, 2009 Could someone give me good tips how to create rubber belt that you see in pic (green). I think it should do with sweep but I cant create correct path for that. Quote
JD Mather Posted April 21, 2009 Posted April 21, 2009 Zip and attach what you have done so far - then I will show you how it can be done. Have you gone through the tutorials in my signature? Quote
oZafin Posted April 21, 2009 Author Posted April 21, 2009 Today I made that. That starts to be pretty good. Way I do it is uneasy, so if there is easier way I really like to know. RubberBelt.zip Quote

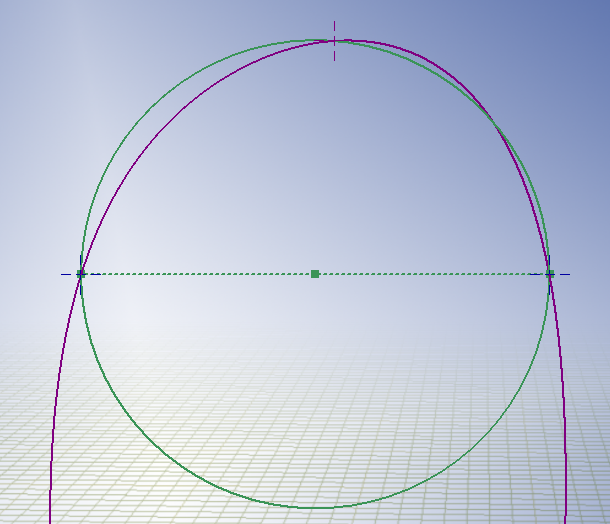

JD Mather Posted April 21, 2009 Posted April 21, 2009 Today I made that. That starts to be pretty good. Way I do it is uneasy, so if there is easier way I really like to know. Both Sketch1 and Sketch2 have an unconstrained construction line. You must apply a coincident constraint between the line and the center of the circle. Sketch3 is not constrained to the sweep path. You might want to read this document http://home.pct.edu/~jmather/AU2007/MA105-1L%20Mather.pdf Your 3D sketch does not follow the circles (see attached image) you might want to read this document http://home.pct.edu/~jmather/content/DSG322/Inventor%20Tutorials/Inventor%2011%20Tutorial%207.pdf iProperties indicate that you have not installed Service Pack 1. Quote
