Multileader - How update leader line Vertices - Updating Landing Position by adding xd and yd values?

[DavidP]

I would like to update the multi leader line landing x,y by reading the existing and adding an x,y shift. I need help with the updating part.



;; Update the landing start point (2nd point in the leader line)
(defun c:foo ( / ssA ss i ent obj obType verts ptList newPt flatList newSA dx dy pt1 pt2 NewLanding)

  (defun *error* ( msg )
    (if (not (member msg '("Function cancelled" "quit / exit abort")))
      (princ (strcat "\nError: " msg))
    )
    (princ)
  )

  ;Select Multileaders
  (setq ssA (ssget '((0 . "MULTILEADER"))))

  (if ssA
    (progn
      (setq ss (ssadd))
      (setq i 0)
      (while (< i (sslength ssA))
        (setq ent (ssname ssA i)
         obj (vlax-ename->vla-object ent)
         obType (vla-get-ContentType obj))
        (if (= obType 2) (ssadd ent ss))
        (setq i (+ i 1))
      )

      ;Define X and Y Shfits
      (setq pt1 (getpoint))
      (prompt "\nPick 1st point (base): ")
      (setq pt2 (getpoint pt1 "\nPick second point (target): "))

      (setq dx (- (car pt2) (car pt1)))
      (setq dy (- (cadr pt2) (cadr pt1)))

      (princ (strcat "\nX shift: " (rtos dx 2 4)))
      (princ (strcat "\nY shift: " (rtos dy 2 4)))


      (setq i 0)
      (while (< i (sslength ss))
        (setq ent (ssname ss i)
              obj (vlax-ename->vla-object ent)
            verts (vlax-invoke obj 'GetLeaderLineVertices 0))

        (princ (length verts))
        (princ "\n") (princ verts)
        (setq NewLanding (list (+ (nth 3 verts) dx) (+ (nth 4 verts) dy) 0 ))
        ; Update PoVerticiesint Here

        ;; End of Verticies Update
        (setq i (+ i 1))
      ) ; End loping Through SS
    )
    (princ "\nNo MLeaders found.")
  )

  (princ)
)



[DavidP]

Here is an update that works. (not sure how robust it is ) - Currently my ML only has a single leader line...



;; Update the landing start point (2nd point in the leader line)
(defun c:foo ( / ssA ss i ent obj obType verts ptList newPt flatList newSA dx dy pt1 pt2 newVerts)

  (defun *error* ( msg )
    (if (not (member msg '("Function cancelled" "quit / exit abort")))
      (princ (strcat "\nError: " msg))
    )
    (princ)
  )

  ;Select Multileaders
  (setq ssA (ssget '((0 . "MULTILEADER"))))

  (if ssA
    (progn
      (setq ss (ssadd))
      (setq i 0)
      (while (< i (sslength ssA))
        (setq ent (ssname ssA i)
         obj (vlax-ename->vla-object ent)
         obType (vla-get-ContentType obj))
        (if (= obType 2) (ssadd ent ss))
        (setq i (+ i 1))
      )

      ;Define X and Y Shfits
      (setq pt1 (getpoint))
      (prompt "\nPick 1st point (base): ")
      (setq pt2 (getpoint pt1 "\nPick second point (target): "))

      (setq dx (- (car pt2) (car pt1)))
      (setq dy (- (cadr pt2) (cadr pt1)))

      (princ (strcat "\nX shift: " (rtos dx 2 4)))
      (princ (strcat "\nY shift: " (rtos dy 2 4)))


      (setq i 0)
      (while (< i (sslength ss))
        (setq ent (ssname ss i)
              obj (vlax-ename->vla-object ent)
            verts (vlax-invoke obj 'GetLeaderLineVertices 0))

        (princ (length verts))
        (princ "\n") (princ verts)
        ; Update PoVerticiesint Here
        (setq newVerts (list (nth 0 verts)
                                 (nth 1 verts)
                                 (nth 2 verts)
                                 (+ (nth 3 verts) dx)  ; X shift
                                 (+ (nth 4 verts) dy)  ; Y shift
                                 (nth 5 verts)))       ; Keep Z coordinate
        (vlax-invoke obj 'SetLeaderLineVertices 0 newVerts)
        ;; End of Verticies Update
        (setq i (+ i 1))
      ) ; End loping Through SS
    )
    (princ "\nNo MLeaders found.")
  )

  (princ)
)



Edited May 23 by DavidP

[DavidP]

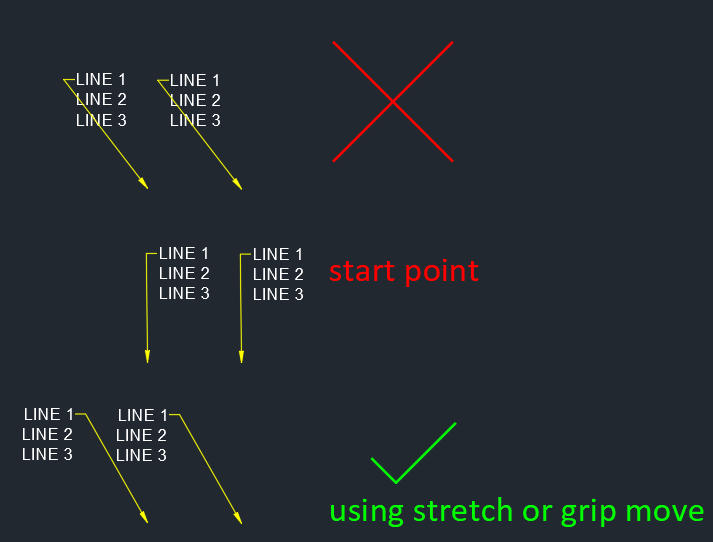

Although it works I end up with a line over strike issue (as show in the image bellow - Top scenario) any ideas how to solve this?
