Quickly grab outline only

[Discus84]

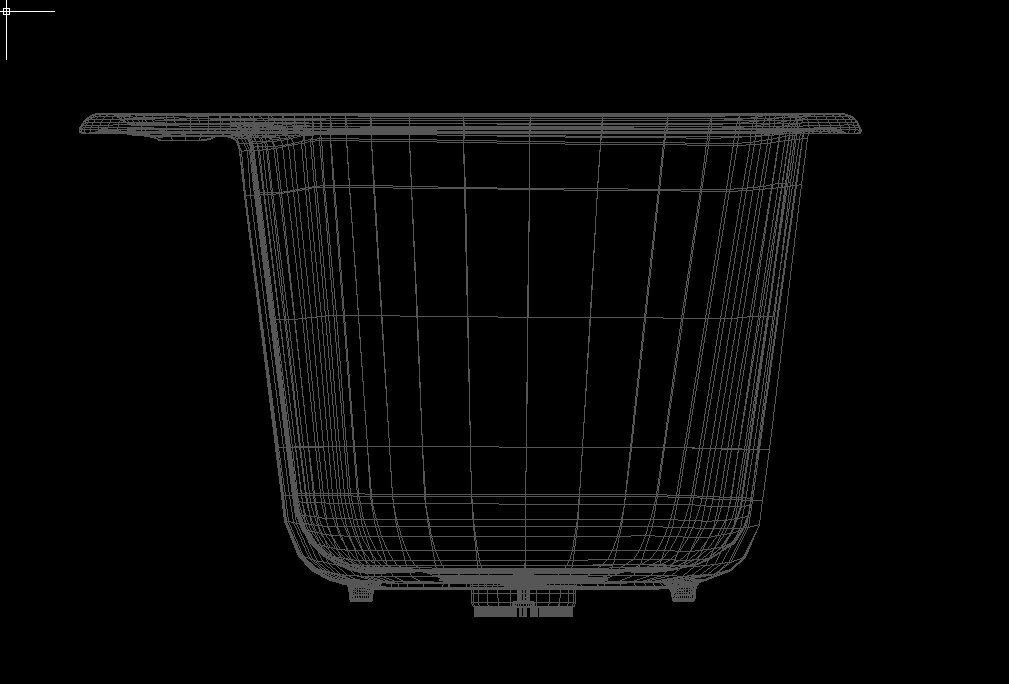

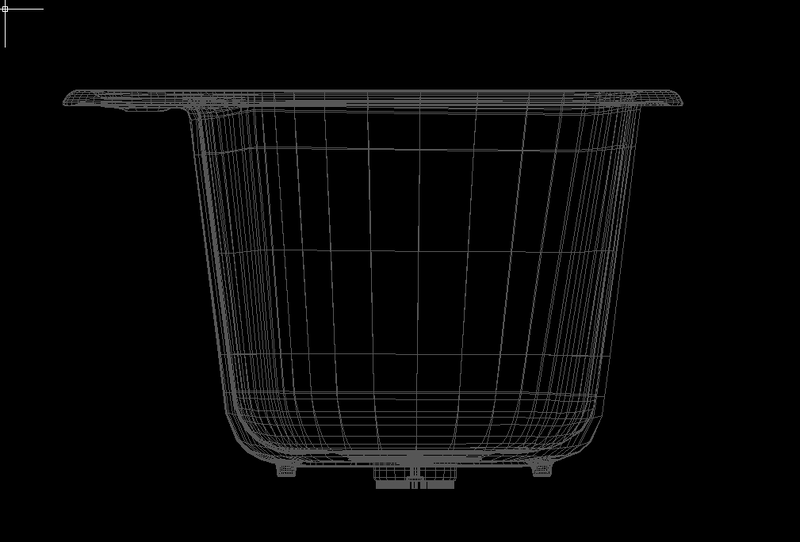

How to quickly select outline of this?

Thanks,

Lu

[SLW210]

It's an image, you'll need something like Illustrator/Inkscape to make an outline.



In AutoCAD you'll need to use Spline and/or Pline and trace around it.

[Discus84]

Thanks. This picture is just for reference. The source is a .dwg file, but since it's a single item I think there must be a way to capture the perimeter only- maybe with lisp?

Lu

Edited May 30 by Discus84

[BIGAL]

Draw a big rectang around it then use BPOLY pick a point between the rectang and the object. It should create boundary.

[SLW210]

13 hours ago, BIGAL said:

Draw a big rectang around it then use BPOLY pick a point between the rectang and the object. It should create boundary.



That could work depending on what it is, which is unknown at this time.

[SLW210]

Somewhere here there is a Superboundary routine by @Debalance IIRC.

[Discus84]

On 5/30/2025 at 7:10 PM, BIGAL said:

Draw a big rectang around it then use BPOLY pick a point between the rectang and the object. It should create boundary.

This works, the object is too complicated and the program crashes.After flattening (source is a 3d dwg)  the boundary was outlined, but not selectable in autocad 12 (selectable in autocad clone)

.

I expected the boundary to be easily selectable but for some reason it isn't.

Thanks,

Lu

[SLW210]

AutoCAD 12?



Which AutoCAD clone?



Can you post an actual .dwg?

[Discus84]

Works in GSTAR.

Lu
