  2. Thank you very much Steven P for your reply
  3. Today
  4. I tested both files: the 2nd one (the one that allows renaming), I don't understand how it works: I can't rename the block already present on the first drawing. ... but the first lisp is more than sufficient: from now on, whenever I want to do a "Copy and paste at the original coordinates", I will definitely use 'capdf.lsp'! An 'Alert' that warns me there are blocks with the same name already present in the 2nd drawing... is more than enough to avoid making dangerous mistakes! I thank you immensely, RLX, for all the work you have done! A note (I also say this for other users): remember to add (vl-load-com), if it is not already included in the auto start when launching AutoCAD.

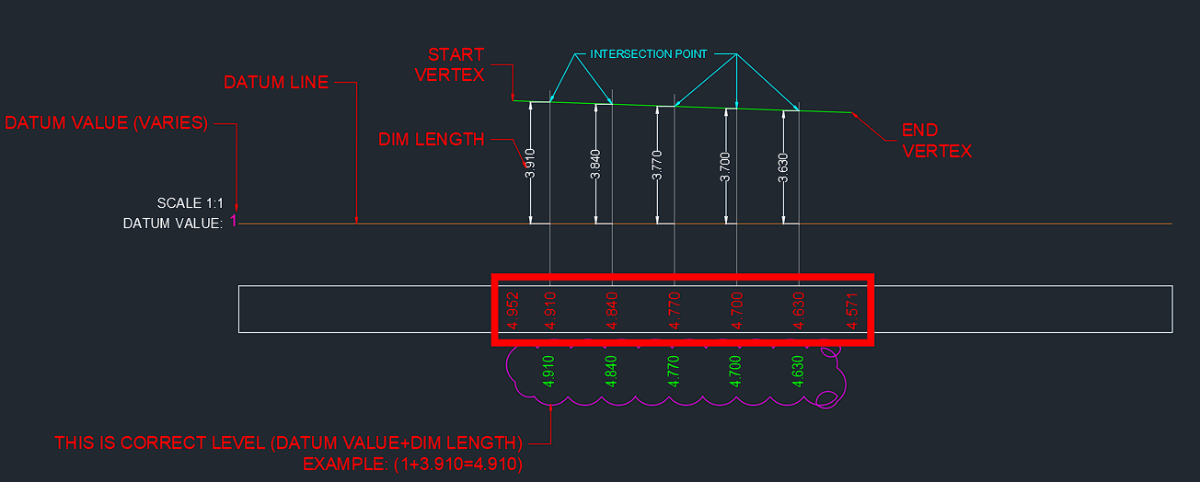

  5. @Ish, I modified the code from the fist post, just copy it again and try it. Now, you will get the desired elevation values (picture 1, the red rectangle). Best regards.
  6. swanny89

    LISP Assistance

    no problem thanks for demonstrating how to do it,
  7. venkitesh

    Pyramid rotation

    I need to draw hexagonal pyramid like this in AutoCAD. So i used Pyramid command where I got hexagon as top view and a triangular shape at the front view at first. Now I need to turn the first front view as shown in the figure (attached). When I used rotate command, the tracking lines showing angles is not coming. here there is no angle specified. we need to turn it manually so that the o'd' line should be horizontal in the second front view. help me drawing like this in AutoCAD. What i mean is, while in rotate3D command, i selected the object, then VIEW, then specified the base point, then its asking for angle. here angle is not specified. we need to rotate the first front view such that the line O'D' becomes horizontal. any way of doing it. please help. The angle tracking lines are not coming as we rotate. Polar tracking is ON. please help. I need to rotate first front view like the one as in second front view in image shown. Thank you Rotate3D.mp4
  8. Yesterday
  9. Can you post a drawing?
  10. SLW210

    LISP Assistance

    Please place Code in Tags in the future. (<> in the editor toolbar)
  11. Steven P

    Hatching change of proprieties

    It might be the way it downloaded for me, but the original hatch, 1, appears to be a block (anonymous block), so when you apply the format painter all it will copy are settings common to a block and a hatch - layer, line type and so. Explode the block and it turns into lines rather than a hatch.
  12. maybe something like this (untested) ;;; copy & paste for dummies - rlx 2025-10-18 (defun c:capfd ( / this-dwg ss other-dwg blocknames-in-selectionset blocknames-in-other-dwg duplicate-blocknames) (setq this-dwg (vla-get-ActiveDocument (vlax-get-acad-object))) (if (and (setq ss (ssget)) (setq other-dwg (getfiled "Copy SS to:" "" "dwg" 0))) (progn (setq blocknames-in-selectionset (Get_SS_BlockNames ss)) (setq blocknames-in-other-dwg (Get_DBX_Blocknames other-dwg)) (setq duplicate-blocknames (compare_block_names blocknames-in-selectionset blocknames-in-other-dwg)) (if (vl-consp duplicate-blocknames) (progn (dplm duplicate-blocknames "Duplicated block names : ") (if (yes_no "Copy anyway?") (ctd ss other-dwg) (princ"\nBite me...") ) ) (ctd ss other-dwg) ) ) ) (princ) ) (defun compare_block_names (a b / c) (and (vl-consp a) (vl-consp b) (foreach item a (if (member item b) (setq c (cons item c))))) c) (defun Get_SS_BlockNames ( ss / n l) (foreach o (ss->ol ss) (if (and (block-p o)(not (member (setq n (block-n o)) l))) (setq l (cons n l)))) l) (defun SS->OL (ss / i l)(setq i 0)(repeat (sslength ss)(setq l (cons (vlax-ename->vla-object (ssname ss i)) l) i (1+ i))) l) ; (block-p (vlax-ename->vla-object (car (entsel)))) (defun block-p (o) (and (= 'vla-object (type O))(eq (vla-get-objectname O) "AcDbBlockReference"))) (defun block-n (o) (if (and (= 'vla-object (type O))(eq (vla-get-objectname O) "AcDbBlockReference")) (if (vlax-property-available-p o 'EffectiveName)(vla-Get-EffectiveName o)(vla-Get-Name o)) nil)) ; (yes_no "Do you like snow") (defun yes_no ( $m / f p i r ) (and (= (type $m) 'STR) (setq f (vl-filename-mktemp ".dcl")) (setq p (open f "w")) (write-line (strcat "yesno:dialog{label=\"" $m "?\";ok_cancel;}") p) (progn (close p)(gc) t) (setq i (load_dialog f)) (new_dialog "yesno" i) (progn (action_tile "accept" "(done_dialog 1)")(action_tile "cancel" "(done_dialog 0)") (setq r (start_dialog))(unload_dialog i)(vl-file-delete f) t)(if (= r 1) t nil))) ;;; display list (plus message) (defun dplm (l m / f p d w) (and (vl-consp l) (setq l (mapcar 'vl-princ-to-string l)) (setq w (+ 5 (apply 'max (mapcar 'strlen l)))) (setq p (open (setq f (vl-filename-mktemp ".dcl")) "w")) (princ (strcat "cfl:dialog{label=\"" m "\";:list_box {key=\"lb\";" "width="(itoa w)";}ok_only;}") p)(not (setq p (close p)))(< 0 (setq d (load_dialog f)))(new_dialog "cfl" d)(progn (start_list "lb") (mapcar 'add_list l)(end_list)(action_tile "accept" "(done_dialog)")(start_dialog)(unload_dialog d)(vl-file-delete f)))) ;;; copy to drawing (defun ctd ( ss dwg / ss->ol dbx_ver acApp acDoc dbx object-list object-safe-array) (defun SS->OL (ss / i l) (setq i 0)(repeat (sslength ss)(setq l (cons (vlax-ename->vla-object (ssname ss i)) l) i (1+ i))) l) (defun dbx_ver ( / v) (strcat "objectdbx.axdbdocument" (if (< (setq v (atoi (getvar 'acadver))) 16) "" (strcat "." (itoa v))))) (setq acApp (vlax-get-acad-object) acDoc (vla-get-ActiveDocument acApp)) (setq dbx (vl-catch-all-apply 'vla-getinterfaceobject (list acApp (dbx_ver)))) (vla-open dbx dwg) ; put all block objects in a list (setq object-list (ss->ol ss)) ; put list with objects in a safe array (setq object-safe-array (vlax-make-safearray vlax-vbobject (cons 0 (1- (length object-list))))) (vl-catch-all-apply 'vlax-safearray-fill (list object-safe-array object-list)) ; copy objects to dbx-drawing (vla-CopyObjects acDoc object-safe-array (vla-get-ModelSpace dbx)) (vl-catch-all-apply 'vla-saveas (list dbx dwg)) (vl-catch-all-apply 'vlax-release-object (list dbx)) (setq object-list nil object-safe-array nil) (princ) ) ; test : (setq lst (GetDocBlockNames (vla-get-ActiveDocument (vlax-get-acad-object)))) ; returns sorted list (uppercase) like : ("BLOCK_A" "BLOCK_B" ...) (defun GetDocBlockNames (d / o n l) (vlax-for o (vla-get-blocks d)(if (and (= :vlax-false (vla-get-isxref o))(= :vlax-false (vla-get-islayout o)) (snvalid (setq n (vla-get-name o)) 0))(setq l (cons (strcase n) l))))(if (vl-consp l)(acad_strlsort l))) (defun Get_DBX_Blocknames ( doc-name / lst v objectdbx-document) (cond ((not (eq (type doc-name) 'STR)) (princ (strcat "\nInvalid filename : " (vl-princ-to-string doc-name)))) ((not (findfile doc-name)) (princ (strcat "\nFile not found : " (vl-princ-to-string doc-name)))) (t (vlax-for doc (vla-get-Documents (vlax-get-acad-object)) (and (eq (strcase (vla-get-fullname doc)) (strcase doc-name))(setq objectdbx-document doc))) (cond ((eq (type objectdbx-document) 'VLA-OBJECT)) ((not (setq objectdbx-document (vlax-create-object (strcat "objectdbx.axdbdocument" (if (< (setq v (atoi (getvar 'acadver))) 16) "" (strcat "." (itoa v))))))) (princ "\nUnable to start object dbx")) ((vl-catch-all-error-p (vl-catch-all-apply 'vla-open (list objectdbx-document doc-name))) (princ (strcat "\nOdbx error - unable to acces : " doc-name))) (t (setq lst (GetDocBlockNames objectdbx-document))) ) ) ) (vl-catch-all-apply 'vla-close (list objectdbx-document :vlax-False)) (if (and (= 'vla-object (type objectdbx-document))(not (vlax-object-released-p objectdbx-document))) (vlax-release-object objectdbx-document)) (if (vl-consp lst) (mapcar 'strcase lst)) ) and if you want the rename version : ;;; copy for lazy dummies - rlx 2025-10-18 (defun c:cfld ( / this-dwg ss other-dwg blocknames-in-selectionset blocknames-in-other-dwg duplicate-blocknames) (setq this-dwg (vla-get-ActiveDocument (vlax-get-acad-object))) (if (and (setq ss (ssget)) (setq other-dwg (getfiled "Copy SS to:" "" "dwg" 0))) (progn (if (vl-consp (setq blocknames-in-selectionset (Get_SS_BlockNames ss))) (setq blocknames-in-selectionset (mapcar 'strcase blocknames-in-selectionset))) (if (vl-consp (setq blocknames-in-other-dwg (Get_DBX_Blocknames other-dwg))) (setq blocknames-in-other-dwg (mapcar 'strcase blocknames-in-other-dwg))) (setq duplicate-blocknames (compare_block_names blocknames-in-selectionset blocknames-in-other-dwg)) (if (vl-consp duplicate-blocknames) (progn (dplm duplicate-blocknames "Duplicated block names : ") ;;; (if (yes_no "Copy anyway?") (ctd ss other-dwg) (princ"\nBite me...") ) (if (yes_no "Rename duplicates?") (progn (foreach b duplicate-blocknames (rename_block_definition b)) (ctd ss other-dwg) ) (princ"\nBite me...") ) ) (ctd ss other-dwg) ) ) ) (princ) ) ; check if $member exists in (vla-) %collection (defun Collection-Member ( $member %collection / result) (if (vl-catch-all-error-p (setq result (vl-catch-all-apply 'vla-item (list %collection $member)))) nil result)) (defun create_unique_blockname ( $bn / i bn) (setq i 0)(while (tblsearch "block" (setq bn (strcat $bn "_" (itoa (setq i (1+ i))))))) bn) (defun rename_block_definition ( $bn / bn ) (if (and (not (void $bn)) (tblsearch "block" $bn)) (vla-put-name (Collection-Member $bn (vla-get-blocks (vla-get-ActiveDocument (vlax-get-acad-object)))) (setq bn (create_unique_blockname $bn)))) bn) (defun compare_block_names (a b / c) (and (vl-consp a) (vl-consp b) (foreach item a (if (member item b) (setq c (cons item c))))) c) (defun Get_SS_BlockNames ( ss / n l) (foreach o (ss->ol ss) (if (and (block-p o)(not (member (setq n (block-n o)) l))) (setq l (cons n l)))) l) (defun SS->OL (ss / i l)(setq i 0)(repeat (sslength ss)(setq l (cons (vlax-ename->vla-object (ssname ss i)) l) i (1+ i))) l) ; (block-p (vlax-ename->vla-object (car (entsel)))) (defun block-p (o) (and (= 'vla-object (type O))(eq (vla-get-objectname O) "AcDbBlockReference"))) (defun block-n (o) (if (and (= 'vla-object (type O))(eq (vla-get-objectname O) "AcDbBlockReference")) (if (vlax-property-available-p o 'EffectiveName)(vla-Get-EffectiveName o)(vla-Get-Name o)) nil)) ; (yes_no "Do you like snow") (defun yes_no ( $m / f p i r ) (and (= (type $m) 'STR) (setq f (vl-filename-mktemp ".dcl")) (setq p (open f "w")) (write-line (strcat "yesno:dialog{label=\"" $m "?\";ok_cancel;}") p) (progn (close p)(gc) t) (setq i (load_dialog f)) (new_dialog "yesno" i) (progn (action_tile "accept" "(done_dialog 1)")(action_tile "cancel" "(done_dialog 0)") (setq r (start_dialog))(unload_dialog i)(vl-file-delete f) t)(if (= r 1) t nil))) ;;; display list (plus message) (defun dplm (l m / f p d w) (and (vl-consp l) (setq l (mapcar 'vl-princ-to-string l)) (setq w (+ 5 (apply 'max (mapcar 'strlen l)))) (setq p (open (setq f (vl-filename-mktemp ".dcl")) "w")) (princ (strcat "cfl:dialog{label=\"" m "\";:list_box {key=\"lb\";" "width="(itoa w)";}ok_only;}") p)(not (setq p (close p)))(< 0 (setq d (load_dialog f)))(new_dialog "cfl" d)(progn (start_list "lb") (mapcar 'add_list l)(end_list)(action_tile "accept" "(done_dialog)")(start_dialog)(unload_dialog d)(vl-file-delete f)))) ;;; copy to drawing (defun ctd ( ss dwg / ss->ol dbx_ver acApp acDoc dbx object-list object-safe-array) (defun SS->OL (ss / i l) (setq i 0)(repeat (sslength ss)(setq l (cons (vlax-ename->vla-object (ssname ss i)) l) i (1+ i))) l) (defun dbx_ver ( / v) (strcat "objectdbx.axdbdocument" (if (< (setq v (atoi (getvar 'acadver))) 16) "" (strcat "." (itoa v))))) (setq acApp (vlax-get-acad-object) acDoc (vla-get-ActiveDocument acApp)) (setq dbx (vl-catch-all-apply 'vla-getinterfaceobject (list acApp (dbx_ver)))) (vla-open dbx dwg) ; put all block objects in a list (setq object-list (ss->ol ss)) ; put list with objects in a safe array (setq object-safe-array (vlax-make-safearray vlax-vbobject (cons 0 (1- (length object-list))))) (vl-catch-all-apply 'vlax-safearray-fill (list object-safe-array object-list)) ; copy objects to dbx-drawing (vla-CopyObjects acDoc object-safe-array (vla-get-ModelSpace dbx)) (vl-catch-all-apply 'vla-saveas (list dbx dwg)) (vl-catch-all-apply 'vlax-release-object (list dbx)) (setq object-list nil object-safe-array nil) (princ) ) ; test : (setq lst (GetDocBlockNames (vla-get-ActiveDocument (vlax-get-acad-object)))) ; returns sorted list (uppercase) like : ("BLOCK_A" "BLOCK_B" ...) (defun GetDocBlockNames (d / o n l) (vlax-for o (vla-get-blocks d)(if (and (= :vlax-false (vla-get-isxref o))(= :vlax-false (vla-get-islayout o)) (snvalid (setq n (vla-get-name o)) 0))(setq l (cons (strcase n) l))))(if (vl-consp l)(acad_strlsort l))) (defun Get_DBX_Blocknames ( doc-name / lst v objectdbx-document) (cond ((not (eq (type doc-name) 'STR)) (princ (strcat "\nInvalid filename : " (vl-princ-to-string doc-name)))) ((not (findfile doc-name)) (princ (strcat "\nFile not found : " (vl-princ-to-string doc-name)))) (t (vlax-for doc (vla-get-Documents (vlax-get-acad-object)) (and (eq (strcase (vla-get-fullname doc)) (strcase doc-name))(setq objectdbx-document doc))) (cond ((eq (type objectdbx-document) 'VLA-OBJECT)) ((not (setq objectdbx-document (vlax-create-object (strcat "objectdbx.axdbdocument" (if (< (setq v (atoi (getvar 'acadver))) 16) "" (strcat "." (itoa v))))))) (princ "\nUnable to start object dbx")) ((vl-catch-all-error-p (vl-catch-all-apply 'vla-open (list objectdbx-document doc-name))) (princ (strcat "\nOdbx error - unable to acces : " doc-name))) (t (setq lst (GetDocBlockNames objectdbx-document))) ) ) ) (vl-catch-all-apply 'vla-close (list objectdbx-document :vlax-False)) (if (and (= 'vla-object (type objectdbx-document))(not (vlax-object-released-p objectdbx-document))) (vlax-release-object objectdbx-document)) (if (vl-consp lst) (mapcar 'strcase lst)) ) (c:cfld)
  13. Hello, in the attached DWG drawing there was already a hatch, I drew a new one at the bottom, which should have the same properties, but I can't assign them. I tried with the brush, it doesn't work; with edit hatch I can't identify the exact scale of the original hatch, and if I try to change the scale of the new hatch, it disappears. I would like to ask how I could solve the problem. Thank you. Tratteggi.dwg
  14. Could do it with pure LISP rather than reactors, a new name though ("CopyWithBlocks" and "PasteWithBlocks" or something like that. CwB, PwB) Weekend so CAD is off but something like this Copy: Select all the entities required in a selection set Select the basepoint (or use a nominal one if necessary) Loop through the selection set to find all the block names Save this list as a variable - or if you want to be really clever - add this list to the copied information (never tried that but I think it is possible), perhaps as xdata in a point or something that can later be found and deleted Copy to clipboard: (vl-cmdf "_.copyclip" basepoint MySS "") (vl-cmdf "_.copybase" basepoint MySS "") Paste: Find the list of blocks from the xdata, and create a list of blocks in the target drawing Compare the 2 lists and give any warnings necessary If OK, paste. If not OK don't paste.
  15. Thank you very much, I also thought that the solution was to use Reactors... but creating a Lisp of this kind is way beyond my abilities! I hope that someone among the 'gurus' of this forum can help me. Thank you.
  16. It would be nice to add a request along with the warning.: (setq choice (getkword "[Continue/caNcel/Rename/Add-index-1] <Rename>: "))
  17. Sir, just I change date value 0 to 1, because dautm value and line is always varies. Program working perfectly for zero 0 datum value and line, if dautm value and line change, not getting accurate level , this attachment. Thanks DATUM VALUE CHANGE.dwg
  18. Perhaps someone knows a better way. In my opinion, this could be done with reactors. That is, in your AutoCAD session, there should be two latent reactors: one that activates after "copyclip" is executed and looks for the most recent DWG in the "temp" folder and saves its name in a global variable; and another that activates just before "pasteclip" is executed (:vlr-commandWillStart) and tracks the blocks of the DWG where the "copyclip" was created and the blocks of the current drawing. There may already be a Lisp published in this forum that does this job, and some veteran can help you locate it.
  19. swanny89

    LISP Assistance

    Thanks for the assistance guys. I managed to get another version working after some trial and error (code below) @Lee Mac Yes, I had the variables defined but I just couldn't crack it with my limited LISP knowledge. Can I just add that I'm super thankful for all your work! Your LISP routines have had an immesurably beneficial impact on my workflow! If you have time, could you please take a look at this topic....it's the last LISP I need to 'complete' my LISP library! Thank you in advance if you can Polyline modification LISP - AutoLISP, Visual LISP & DCL - AutoCAD Forums Code that worked for me in the original post: (defun c:CLIENTDWG () (vl-load-com) (setq doc (vla-get-ActiveDocument (vlax-get-Acad-Object))) (setq fullpath (vla-get-FullName doc)) (if (and fullpath (/= fullpath "")) (progn (setq fname (vl-filename-base fullpath)) (setq fext (vl-filename-extension fullpath)) (setq fdir (vl-filename-directory fullpath)) (setq exportDir (strcat fdir "\\Exported Versions")) ;; Create EXPORTED folder if it doesn't exist (if (not (vl-file-directory-p exportDir)) (vl-mkdir exportDir) ) ;; Avoid duplicate suffix (if (wcmatch (strcase fname) "* - EXPORTED VERSION") (setq baseName fname) ; already has suffix (setq baseName (strcat fname " - EXPORTED VERSION")) ) ;; Construct new file path (setq newname (strcat exportDir "\\" baseName "." fext)) ;; Delete existing file if it exists (if (findfile newname) (vl-file-delete newname) ) ;; Save the drawing with the new name (vla-SaveAs doc newname) (princ (strcat "\nDrawing exported and saved as: " newname)) ) (princ "\nDrawing must be saved before exporting.") ) (princ) )
  20. Hi all, Long story short, I waste tens of hours per year creating "quirks" in polylines, and I'm hoping that this could be automated using a LISP....problem is I have no idea where to start when it comes to manipulating geometry with LISP (or even if what I'm trying to achieve is possible). I'm wondering if anyone has a lisp, or could create a lisp (I will be eternally grateful) that can modify a polyline in a specific manner. The image below shows what I'm trying to achieve. I'd love to have 2 lisps. One to do corners (type 1 - calld "quirkc" ) and another to do lines (type 2 - called "quirkl"). The functionality I'd like to achieve in these LISPS is as follows; 1. Activate the lisp 2. Pick a point on the line or the corner (these geometries are polylines or closed polylines) 3. Have a prompt appear asking for width (x) and height (y) 4. modify the polyline as shown (create additional points in the polyline offset the required x and y distances) Thank you in advance for any help you can provide (or simply telling me this is not possible).
  21. @Ish, if you don't mind, can you please attach video, gif, picture, etc. of the problem which you issued, because I'm not sure to fully understand the problem. Thanks
  22. I made a stupid mistake and now I would like to find a way to avoid it: I copied a portion of a drawing (using CTRL+C) and pasted it into another (CTRL+V). The problem is that the copied part contained blocks that were already present with the same name in the new drawing. However, the blocks in the new drawing were slightly different. Is it possible to create a lisp or something that warns: 'Attention: the drawing already contains blocks named XXXX'?
  23. Thanks for your help sir, one issue I notice, if I change the datum value and keep datum line same ,value of intersection point not coming accurate, only start vertex and and vertex is accurate. Note : Same section but change datum value.
  24. Last week
  25. This takes into account a datum and scale, metric only. You need dummy text as it updates the text. Note this was written in 2014. SurfaceRL.lsp
  26. I'm looking to automate the removal of unreferenced XREFs. However, I can't even find them. They don't exist in the "block" table with the other XREFs/blocks, so I'm a bit lost as I couldn't find any solutions online.
  27. GLAVCVS

    subfix in dimension...

    I think this code should meet what you need. ;************************ G L A V C V S ************************* ;************************** F E C I T *************************** (defun c:subTexta (/ e n le vlae txu tx cj g? tg) (vl-catch-all-apply '(lambda () (while (or (/= (setq tx (getstring (strcat "\nType TEXT to add to DIMENSION (escape to EXIT) " (if tx (strcat "<" tx ">") "") ": "))) "") txu) (set (if (= tx "") 'tx 'txu) (if (= tx "") txu tx)) (setq n nil cj (ssget "_:L" '((0 . "*DIMENSION")))) (while (setq e (ssname cj (setq n (if n (1+ n) 0)))) (setq g? (/= (setq tg (vla-get-Textoverride (setq vlae (vlax-ename->vla-object e)))) "")) ;(vla-put-Textoverride vlae (if g? (strcat tg (if (wcmatch tg "*\\X*") "\n" "\\X") tx) (strcat tg "<>\\X" tx)));ACTIVA ESTA LÍNEA SI QUIERES EVITAR QUE PONGA EL SIGNO + DELANTE DEL PRIMER TEXTO Y DESACTIVA LA SIGUIENTE LÍNEA DE CODIGO (vla-put-Textoverride vlae (if g? (strcat (if (wcmatch tg "+*") "" "+") tg (if (wcmatch tg "*\\X*") "\n" "\\X") tx) (strcat "+" (rtos (vla-get-Measurement vlae) 2 (vla-get-PrimaryUnitsPrecision vlae)) "\\X" tx))) ) ) ) ) (princ) )
  28. thank you for your suggestion
  29. Long time I'm nothing written in Lisp. So, I hoppe it will serve you. Also, you can saw a short video how it works. The code: (prompt "\nTo run a LISP type: yval") (princ) (defun c:yval ( / old_osmode pline spt ept spt_pline ept_pline datum_line yval_datum_line yval_start_pline yval_end_pline txt_position ang_spt_pline ang_ept_pline datum_value intersecting_lines len i int_pt_pline int_pt_datum_line dist yval_position ang) (setq old_osmode (getvar 'osmode)) (setq pline (car (entsel "\nSelect Polyline to get an Elevation:"))) (while (or (equal pline nil) (not (equal "LWPOLYLINE" (cdr (assoc 0 (entget pline)))))) (prompt "\nSelected entity must be LWPOLYLINE. Try again...\n") (setq pline (car (entsel "\nSelect Polyline to get an Elevation:"))) ) (setq spt_pline (vlax-curve-getStartPoint pline) ept_pline (vlax-curve-getEndPoint pline) ) (if (> (car spt_pline) (car ept_pline)) (progn (command-s "_reverse" pline "") (setq spt_pline (vlax-curve-getStartPoint pline) ept_pline (vlax-curve-getEndPoint pline) ) ) ) (setq datum_line (car (entsel "\nSelect Datum Line:"))) (while (or (equal datum_line nil) (not (equal "LINE" (cdr (assoc 0 (entget datum_line)))))) (prompt "\nSelected entity must be LINE. Try again...\n") (setq datum_line (car (entsel "\nSelect Datum Line:\n"))) ) (setq yval_datum_line (cadr (vlax-curve-getStartPoint datum_line)) yval_start_pline (- (cadr spt_pline) yval_datum_line) yval_end_pline (- (cadr ept_pline) yval_datum_line) ) (setq txt_position (getpoint "\nPick the lower-left corner of the box for elevation value:\n")) (setvar 'osmode 0) (setq datum_value (car (entsel "\nSelect Datum value:"))) (if (equal "MTEXT" (cdr (assoc 0 (entget datum_value)))) (setq datum_value (LM:UnFormat (cdr (assoc 1 (entget datum_value))) T)) (setq datum_value (cdr (assoc 1 (entget datum_value)))) ) (setq ang_spt_pline (angle (setq yval_position_one (list (car spt_pline) (+ (cadr txt_position) 0.1) (caddr txt_position))) spt_pline) ang_ept_pline (angle (setq yval_position_two (list (car ept_pline) (+ (cadr txt_position) 0.1) (caddr txt_position))) ept_pline) ) (entmake (list (cons 0 "TEXT") (cons 100 "AcDbEntity") (cons 100 "AcDbText") (cons 1 (rtos (+ yval_start_pline (atof datum_value)) 2 3)) (cons 10 yval_position_one) (cons 11 yval_position_one) (cons 40 0.35) (cons 72 0) (cons 73 2) (cons 50 ang_spt_pline))) (entmake (list (cons 0 "TEXT") (cons 100 "AcDbEntity") (cons 100 "AcDbText") (cons 1 (rtos (+ yval_end_pline (atof datum_value)) 2 3)) (cons 10 yval_position_two) (cons 11 yval_position_two) (cons 40 0.35) (cons 72 0) (cons 73 2) (cons 50 ang_ept_pline))) (princ "\nSelect intersecting lines:") (setq intersecting_lines (ssget (list (cons 0 "LINE") (cons 8 "DATUM-GRID"))) len (sslength intersecting_lines) i 0 ) (while (< i len) (setq int_pt_pline (vlax-safearray->list (vlax-variant-value (vla-IntersectWith (vlax-ename->vla-object pline) (vlax-ename->vla-object (ssname intersecting_lines i)) acExtendNone))) int_pt_datum_line (vlax-safearray->list (vlax-variant-value (vla-IntersectWith (vlax-ename->vla-object datum_line) (vlax-ename->vla-object (ssname intersecting_lines i)) acExtendNone))) dist (distance int_pt_pline int_pt_datum_line) yval_position (list (car int_pt_pline) (+ (cadr txt_position) 0.1) (caddr txt_position)) ang (angle yval_position int_pt_pline) i (1+ i) ) (entmake (list (cons 0 "TEXT") (cons 100 "AcDbEntity") (cons 100 "AcDbText") (cons 1 (rtos (+ dist (atof datum_value)) 2 3)) (cons 10 yval_position) (cons 11 yval_position) (cons 40 0.35) (cons 72 0) (cons 73 2) (cons 50 ang_spt_pline))) ) (setvar 'osmode old_osmode) (prompt "\nAn elevation values were added!") (princ) ) ;;-------------------=={ UnFormat String }==------------------;; ;; ;; ;; Returns a string with all MText formatting codes removed. ;; ;;------------------------------------------------------------;; ;; Author: Lee Mac, Copyright © 2011 - www.lee-mac.com ;; ;;------------------------------------------------------------;; ;; Arguments: ;; ;; str - String to Process ;; ;; mtx - MText Flag (T if string is for use in MText) ;; ;;------------------------------------------------------------;; ;; Returns: String with formatting codes removed ;; ;;------------------------------------------------------------;; (defun LM:UnFormat ( str mtx / _replace rx ) (vl-load-com) (defun _replace ( new old str ) (vlax-put-property rx 'pattern old) (vlax-invoke rx 'replace str new) ) (if (setq rx (vlax-get-or-create-object "VBScript.RegExp")) (progn (setq str (vl-catch-all-apply (function (lambda ( ) (vlax-put-property rx 'global actrue) (vlax-put-property rx 'multiline actrue) (vlax-put-property rx 'ignorecase acfalse) (foreach pair '( ("\032" . "\\\\\\\\") (" " . "\\\\P|\\n|\\t") ("$1" . "\\\\(\\\\[ACcFfHLlOopQTW])|\\\\[ACcFfHLlOopQTW][^\\\\;]*;|\\\\[ACcFfHLlOopQTW]") ("$1$2/$3" . "([^\\\\])\\\\S([^;]*)[/#\\^]([^;]*);") ("$1$2" . "\\\\(\\\\S)|[\\\\](})|}") ("$1" . "[\\\\]({)|{") ) (setq str (_replace (car pair) (cdr pair) str)) ) (if mtx (_replace "\\\\" "\032" (_replace "\\$1$2$3" "(\\\\[ACcFfHLlOoPpQSTW])|({)|(})" str)) (_replace "\\" "\032" str) ) ) ) ) ) (vlax-release-object rx) (if (null (vl-catch-all-error-p str)) str ) ) ) ) The short video: YVAL.mp4 Best regards.
