Bill of Materials in AutoCAD MEP?

Recommended Posts

Siberian

Anyone know how to make a BOM (bill of materials) in AutoCAD MEP? Can't seem to find any command or other way to achieve this...

Share this post


Link to post
Share on other sites
RFRUSSO

AutoCAD MEP?! Thjis is the Revit section my brotha'

Share this post


Link to post
Share on other sites
tzframpton

This is what I use. It creates an Excel Spreadsheet for all MvParts, and other tools used. Great program. Just add/enable it in your Macro Load menu (Cad Manager > Macro > Load Project...) and then run the file named "Main" at the end under your Macros Dialog Box. :)

MEP_Information_Report.zip

Share this post


Link to post
Share on other sites
Siberian

So there really isn't a built-in thing for this...? Wierd...

I can't seem to make your program work proparly. It keeps telling me "Can't find project or library". I so don't get VB :(

Share this post


Link to post
Share on other sites
tzframpton
So there really isn't a built-in thing for this...? Wierd...

I can't seem to make your program work proparly. It keeps telling me "Can't find project or library". I so don't get VB :(



Here is how you run it:



Go to CAD Manager > Macro > Load Project.




Now browse for the file and Open it from whatever directory you saved it under.






Next, go to CAD Manager > Macro > Macros... and select the 4th option down as in the picture below (the modMain.main file) and hit the Run button.






Then it will create the Excel BOM that you're wanting. :)

Share this post


Link to post
Share on other sites
chee_dee

book marked

Share this post


Link to post
Share on other sites
chee_dee

tells me it can't find project or library as well :(

Share this post


Link to post
Share on other sites
SEANT

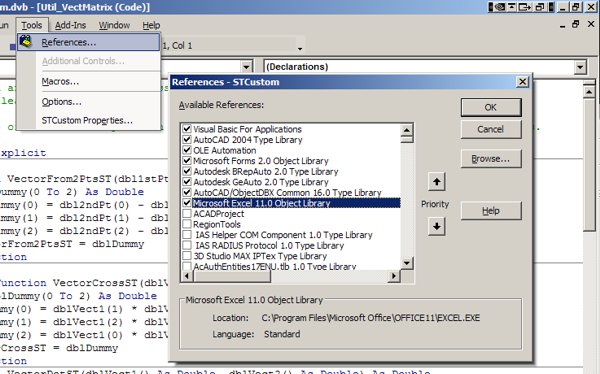

One of the reason this will happen is if the project (.dvb) references a version of Excel different from what is on the current machine. From within the VBAIDE, look if anything is listed as "Missing" in References. If it is Excel, select the correct version (may have to scroll down to locate it) for the machine.


Share this post


Link to post
Share on other sites
chee_dee

these are whats missing:



AEC MEP 5.5 Application Library

AEC MEP 5.5 Base Object Library

AEC MEP Plumbing 5.5 Base Object Library

Share this post


Link to post
Share on other sites
SEANT

Apparently this VBA project is very AEC MEP specific. If you are trying to use it with Standard AutoCAD 2007, the project will likely need modification to avoid tripping up on those missing libraries.

Share this post


Link to post
Share on other sites
ZERYAB
Here is how you run it:



Go to CAD Manager > Macro > Load Project.




Now browse for the file and Open it from whatever directory you saved it under.






Next, go to CAD Manager > Macro > Macros... and select the 4th option down as in the picture below (the modMain.main file) and hit the Run button.






Then it will create the Excel BOM that you're wanting. :)



Can you please add calculated plumbing lines size (in dia) also. Regards, ZERYAB

Share this post


Link to post
Share on other sites
ZERYAB

I need to include Plumbing lines Dia also in your macro. Can u? please

Share this post


Link to post
Share on other sites
ZERYAB

Great Program! It will be more useful if it can generate plumbing lines lengths with calculated pipe sizes (dia). Can you modify it and send it to me.

Regards,

ZERYAB

Share this post


Link to post
Share on other sites
buzz

I created a Duct Material Schedule that calculates sheet metal area, weight, liner area, lengths, etc. - it was done with the use of Property Set Definitions. You could accomplish the same thing for Piping.



-Buzz

Share this post


Link to post
Share on other sites
ZERYAB

Plumbing ducts do have parameters like length, dia meters etc, but plumbing lines do not, can you please check it, if there is any option?

Share this post


Link to post
Share on other sites
buzz

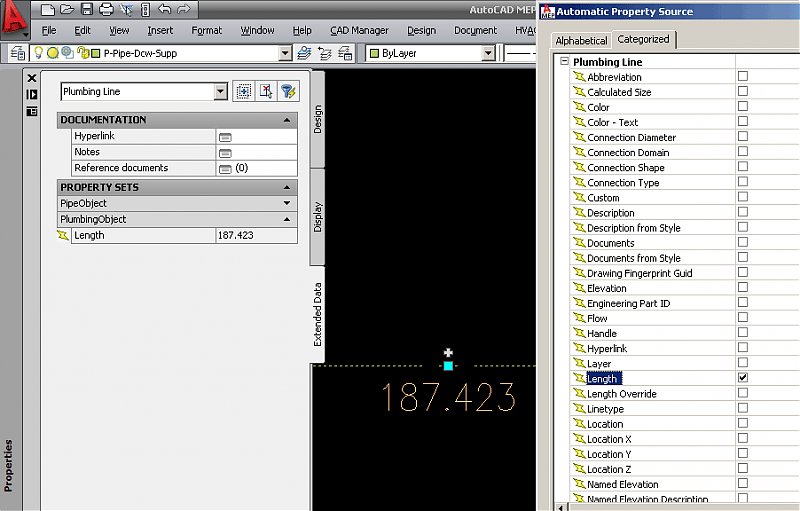

Piping objects do have Length, plumbing lines do too, but you have to add them to the Property Set Definitions...



-Buzz


Share this post


Link to post
Share on other sites
ZERYAB

You are genius, the information you have provided me really worked... thank you

Share this post


Link to post
Share on other sites
ZERYAB

but can you tell me the next procedure to create schedule for plumbing lines as its not available in the Shedule and Tag option for plumbing. please your quick reply is needed

Share this post


Link to post
Share on other sites
jameslove2012

When the length of a pipe or duct is over 50000 units, the VB programme stopped, it said 'Overflow'. The problem line is follow:



arrABS_Object(2, i) = CInt(arrABS_Object(2, i)) + aDuct.Length 'add one to the # of same column to the identical Duct



Please correct it if you can, thank you.

Share this post


Link to post
Share on other sites
