Cutting hole in Roof

Recommended Posts

profcad

I can't seem to cut out the roof where the walls of the 2nd floor extrude up past the roof.



what is the best way to accomplish this. See below. The red line indicates where I want to cut the roof





Share this post


Link to post
Share on other sites
qbi

I think You have two ways

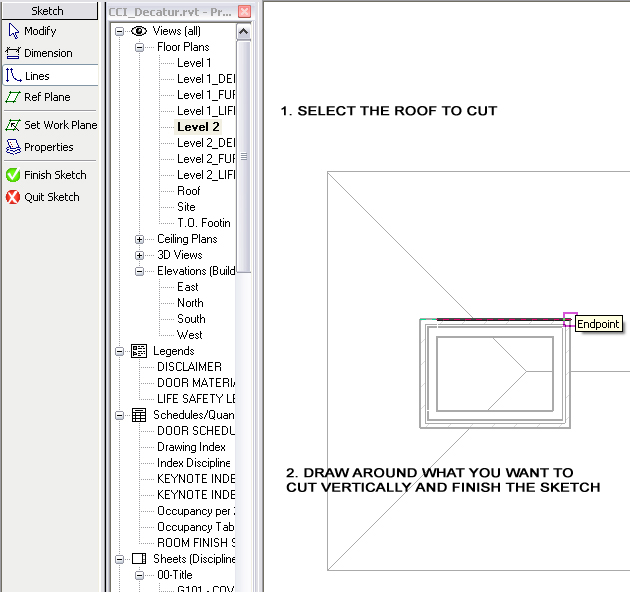

1st. Go to Modify----> openieng---->opening by face, mark roof draw the lines and finnish



2nd. Go to the family create an void extrusion ( with demand size) form Genreric face based family, load it into the project and add to the roof.

Share this post


Link to post
Share on other sites
ruchiarch

Its better to follow :



Modeling - Creat family - void - extrusion

Share this post


Link to post
Share on other sites
ARCHdoc

Yiu could also use a shaft opening

Share this post


Link to post
Share on other sites
boofredlay

Use the Vertical Opening.

This is how it looks in 2009.



Share this post


Link to post
Share on other sites
profcad

Thanks for all the help. The vertical opening worked great.
