Drawing a truss with inventor (structural members??)

Recommended Posts

Guest Hendrik

Hello everyone,



I have to draw a truss with inventor and i hav no idea how i can do this the best way. I want to draw it in such a way that i can easily modify the angle of the braces, the number of braces, the lengthe of the main chords etc...

drawing of a truss:

http://members.home.nl/hendrikwitting/truss.jpg



I know how to draw a truss in solidworks, i sketch the braces in 1 sketch and afterwards i place structural members on top of them, a repetition, and voila, the truss is ready.

I also know of a add-in program for inventor called vectrasteel http://www.vectrasys.com

With the help of this program you can place structural members in a similar way as with solidworks.

However, is there a way to draw a truss without using this add-in??, or do you HAVE to make workplanes for EVERY brace?



Many thanks in advance



Hendrik Witting

Share this post


Link to post
Share on other sites
Guest Hendrik

hmmz, not many people are looking/responding this forum...

Share this post


Link to post
Share on other sites
CADTutor

I'm affraid our resident Inventor expert is not here at the moment. He should be back shortly. :(

Share this post


Link to post
Share on other sites
Mr T

Not been around since I was flamed......... :x



Just draw a spar, then start an Assembly. Now assemble and

mate/cosntrain each spar. Bear in mind that you would

have to have holes in the three main tubes. Or weld them.



Nick

Share this post


Link to post
Share on other sites
caddman6425

I've got a Truss Creator routine that I wrote. Putting finishing touches on it. Respond to nah@truevine.net

Share this post


Link to post
Share on other sites
MarkFlayler

What's wrong with using Frame Generator with a Skeletal Part? That works fine for me. Otherwise you can use iCopy with an Adaptive Assembly with spar components.

Share this post


Link to post
Share on other sites
caddman6425

I don't use inventor, I use ACA 2012. So what is this frame generator, something in Inventor only?

Share this post


Link to post
Share on other sites
JD Mather
I don't use inventor, I use ACA 2012. So what is this frame generator, something in Inventor only?



Frame generator is standard in Inventor (I didn't look at original information since it wasn't posted here).



It works essentially the same as in SolidWorks, exept that in Inventor you place the skeleton in an assembly and place the frame members in assembly while in SWx you do in a single part file and then push out the individual parts.

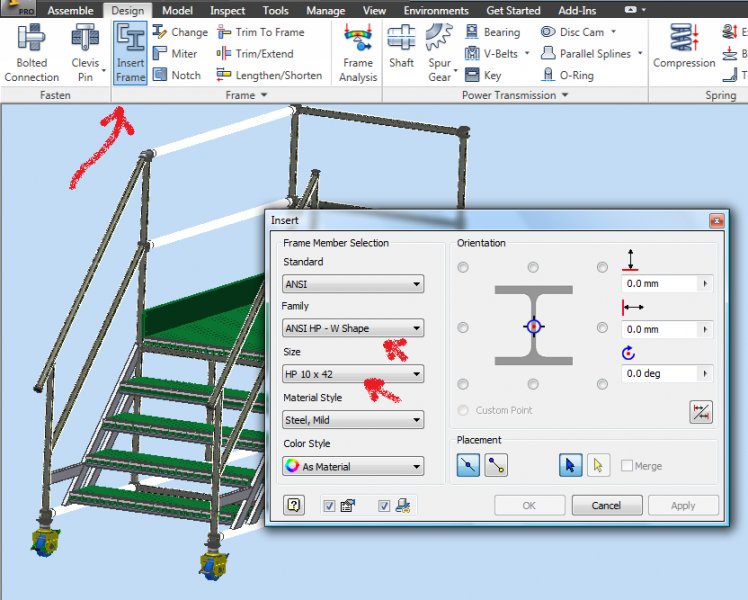

Frame Generator.jpg

Share this post


Link to post
Share on other sites
caddman6425

OH, OK. I like that, too bad ACA doesn't have that

Share this post


Link to post
Share on other sites
abccad

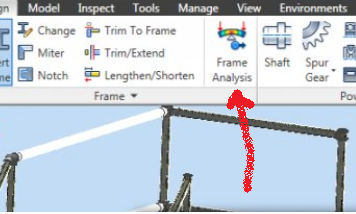

Is it possible to analyze a 2D Truss structure using the "Frame analysis" module?



I have added constraints to all nodes ( to allow Z rotation. )



But besides axial stress, I am also getting bending stress on the members.



Do I need to use the "Release option" on the Truss members?



It is unclear to me with the Inventor online help.

Share this post


Link to post
Share on other sites
abccad

I have ordered the book; but from the TOC, I didn't see the Truss analysis.



The analysis results are showing additional bending stress, which shouldn't exist in Trusses.



Anybody has done "Truss analysis" in Inventor?

Share this post


Link to post
Share on other sites
