lucyislay Posted July 29, 2009 Share Posted July 29, 2009 Hi im new to inventor and was wondering how to draw a bolt head with a radius/chamfer on the top ive tried all sorts but no luck, there are tutorials for making the thread which i can already do but cant find anything on drawing the head any tips would be greatly appreciated thanks weaver Quote Link to comment Share on other sites More sharing options...
ReMark Posted July 29, 2009 Share Posted July 29, 2009 Did you check the Inventor tutorials at forum member and Inventor guru J.D. Mather's website? He's the man when it comes to that kind of stuff. Quote Link to comment Share on other sites More sharing options...
lucyislay Posted July 29, 2009 Author Share Posted July 29, 2009 thanks for the reply do you happen to know the name of his site. weaver Quote Link to comment Share on other sites More sharing options...
lucyislay Posted July 29, 2009 Author Share Posted July 29, 2009 Found the site but still cant figure it, guess im gonna have a late night Quote Link to comment Share on other sites More sharing options...
JD Mather Posted July 30, 2009 Share Posted July 30, 2009 still cant figure it Step 13 & 14 (combined into one command - extrude in Inventor) http://home.pct.edu/~jmather/content/CAD238/AutoCAD%202007%20Tutorial%204.pdf Can't be many things easier in Inventor. or You can do exactly how it is done out on the shop floor - Revolve an angled tool with cut option around axis. If you can't figure out either method zip and attach what you have so far. Quote Link to comment Share on other sites More sharing options...

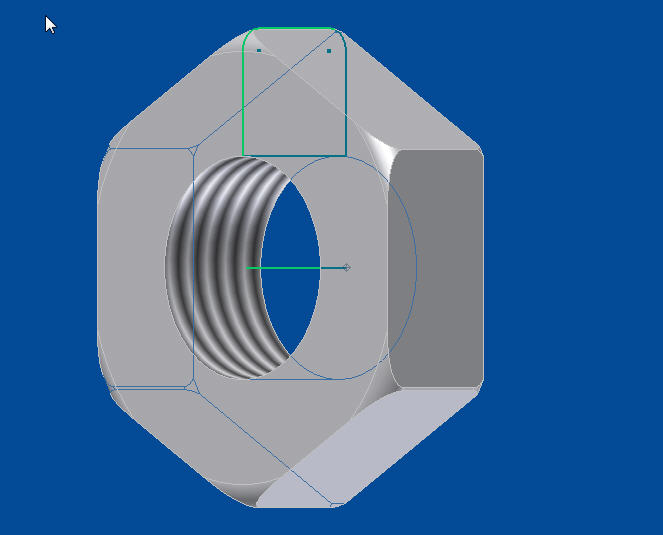

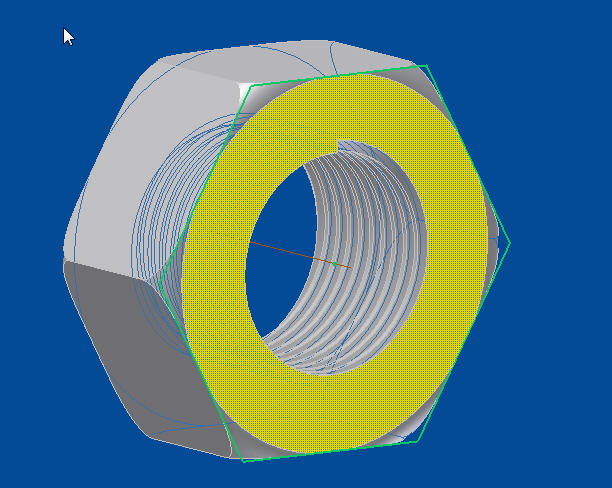

kencaz Posted July 30, 2009 Share Posted July 30, 2009 Found the site but still cant figure it, guess im gonna have a late night You can either revolve a sketch profile of the bolt with the fillet then extrude a hexagon using intersect which will give you something like this: Or, you can extrude a circle profile the desired height (in yellow), then add the fillet to your feature after, then again, extrude your hexagon using intersect. Then add either bit mapped threads or cut your own. hope this helps. KC Quote Link to comment Share on other sites More sharing options...
lucyislay Posted July 30, 2009 Author Share Posted July 30, 2009 thanks for the help but i cant seem to figure out how to intersect ? Quote Link to comment Share on other sites More sharing options...
lucyislay Posted July 30, 2009 Author Share Posted July 30, 2009 ive done it. thank you both for your help it is some times hard for a beginner to get help on forums you have been really helpfull Quote Link to comment Share on other sites More sharing options...

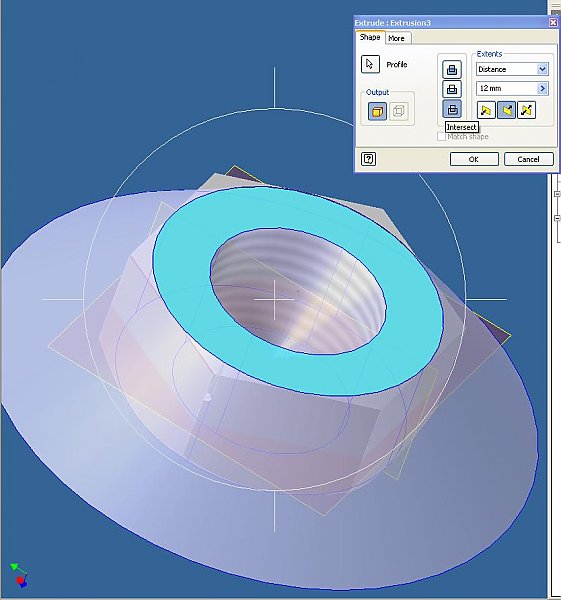

czc Posted July 30, 2009 Share Posted July 30, 2009 thanks for the help but i cant seem to figure out how to intersect ? I hope this image helps. Quote Link to comment Share on other sites More sharing options...
