cnetplanet Posted April 23, 2005 Share Posted April 23, 2005 i am a new user of autocad. i want to know about to "fillet" in 3D surface. i want to know about to fillet a corner of a solid rectangle block. and also want to know about to fillet the whole single face of pyramid solid. can i use "fillet" in 3D surface?? hoping to get solution. Quote Link to comment Share on other sites More sharing options...
CADTutor Posted April 23, 2005 Share Posted April 23, 2005 See this topic. Also, if you use the Forum Search facility, you'll find lots of topics to do with the Fillet command. Quote Link to comment Share on other sites More sharing options...
Fidani Posted November 23, 2008 Share Posted November 23, 2008 how to drawing fillet in autocad 2004 Quote Link to comment Share on other sites More sharing options...

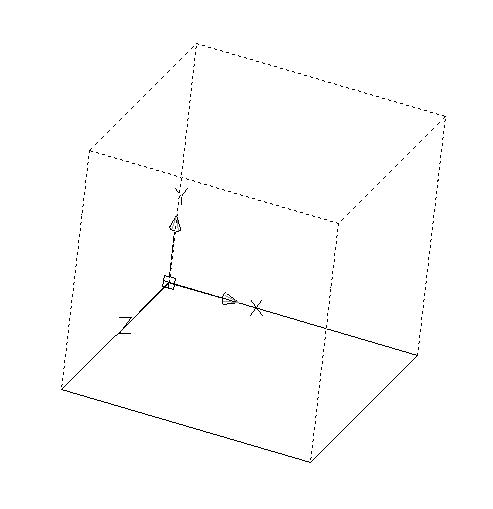

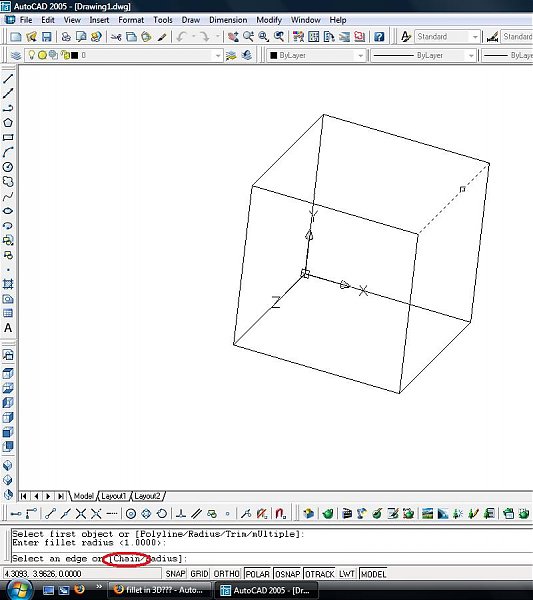

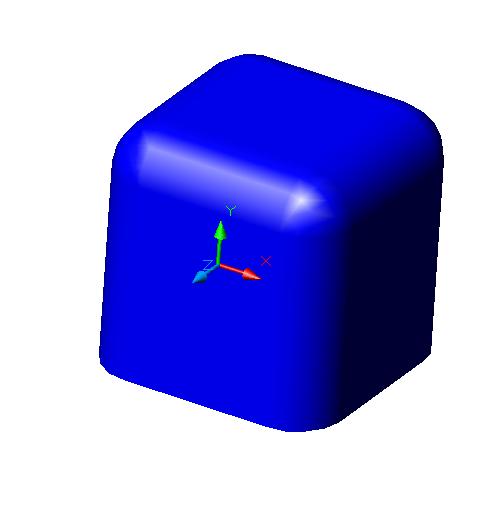

shift1313 Posted November 23, 2008 Share Posted November 23, 2008 you can use fillet on two lines that are no connected, on polylines and on 3d solids. There are limitations. You cant fillet an edge that does not have enough room to complete the fillet. For instance if you drew a line that was from (0,0) to (0,.4) to (.4,.4) you could not apply a .5" radius fillet because there isnt enough line(someone correct me if im wrong). It would help to know what kinds of things you are drawing. Here is a simple cube. I drew a cube that was 5x5x5. Type FILLET, R>enter, 1.0(for the radius)>enter, it will prompt you to select an edge, i select one edge i wish to fillet>enter, it prompts you for the radius, if you did not enter it previously you can enter it here>enter, Then you have another option to Chain/Radius or enter. Press C>enter and select other edges you wish to chain together with this fillet. I selected all the edges of my box(dashed lines) except the bottom square. Quote Link to comment Share on other sites More sharing options...
