cordgrass

ploting using Cartesian coordinate system

Recommended Posts

cordgrass

what is the command to enter ccs into cad.



ex point 180.736 101.489??



how do i plot this point.





Share this post


Link to post
Share on other sites
kencaz

Command: point



Current point modes: PDMODE=0 PDSIZE=0.0000

Specify a point: 180.736,101.489







Command: list

1 found



POINT Layer: "0"

Space: Model space

Handle = 189

at point, X= 180.7360 Y= 101.4890 Z= 0.0000



KC

Share this post


Link to post
Share on other sites
eldon
Command: point



Current point modes: PDMODE=0 PDSIZE=0.0000





Could I point out that you have to have very good eyesight to find the point if you leave those settings as they are. The point is just a tiny dot. :?



Find how to format Point styles, and you will see the point much easier :D

Share this post


Link to post
Share on other sites
Lee Mac

PDMODE = 34 is my fav :)

Share this post


Link to post
Share on other sites
kencaz
Could I point out that you have to have very good eyesight to find the point if you leave those settings as they are. The point is just a tiny dot. :?



Find how to format Point styles, and you will see the point much easier :D



I never use points anyway, I only used that for demo purposes. In fact that is probably only the second time I have ever used it.



KC

Share this post


Link to post
Share on other sites
tejinder01

what is the command to enter ccs into cad.





ex point 180.736 101.489??





how do i plot this point.



command. Point



in the command in bottom line it will read " Specify Point" then enter the Co-ordinate (x,y). ie. 180.736,101.489

Share this post


Link to post
Share on other sites
montiff

A follow up question. How do you plot another point with similar coordinates that is connected by a line?

Share this post


Link to post
Share on other sites
eldon

Plotting Points and drawing Lines are two different commands.



Start one or the other, and feed in the coordinates as needed at the command line :D



To finish the line command, when the command line wants another coordinate, just press Enter and the command will be ended.

Share this post


Link to post
Share on other sites
montiff

I've tried to feed the coordinates into the command line and it works fine for the first one. It gives me 2 windows for my x and y. Once I've finished that it only now gives me distance and degrees instead of another x and y point.

Share this post


Link to post
Share on other sites
eldon

I don't understand your windows for x and y.



I start the Line command, and the command line says "LINE Specify first point" and then for the next point it says "Specify next point". At each you can type in coordinates or angle and distance or other ways.



What command are you using? and can you post a picture of your screen?

Share this post


Link to post
Share on other sites
Lee Mac

Perhaps he is referring to the dynamic input windows. :)

Share this post


Link to post
Share on other sites
eldon

I am not sufficiently dynamic to handle that. I can only use the Command line :shock:

Share this post


Link to post
Share on other sites
montiff
Perhaps he is referring to the dynamic input windows. :)



That is correct,sorry for my non user talk.

Share this post


Link to post
Share on other sites
eldon

As the dynamic window depends on the crosshair position which is controlled by your mouse, I would say that it is not a very accurate way of working.



Look out for the COMMAND LINE, and type coordinates into that. :D

Share this post


Link to post
Share on other sites
montiff

Screen shot maybe hard.



Here is my command line:



LINE Specify first point:3150704.27, 696953.51



(now it wants me to)



Specify next point or [undo]



(this is where i want to add an additional point of 3150380.25,696827.47)

(Here is where I get a single dynamic input or a double with a one dynamic input wanting a degree.)

Share this post


Link to post
Share on other sites
eldon

I have absolutely no understanding with the Dynamic input, so you will have to wait until someone more up-to-date can put you right.



I don't see why you cannot just type the coordinates after "Specify next point or [undo].



This dynamic input is meant to be an improvement :shock::shock:

Share this post


Link to post
Share on other sites
montiff
I don't understand your windows for x and y.



I start the Line command, and the command line says "LINE Specify first point" and then for the next point it says "Specify next point". At each you can type in coordinates or angle and distance or other ways.



What command are you using? and can you post a picture of your screen?



Ok, I will send you one. Once I upload it up to google pictures.

Share this post


Link to post
Share on other sites
Lee Mac

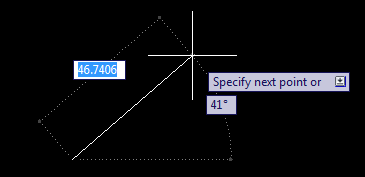

Ok, from what you are saying, I believe you are receiving something like this, only allowing a distance input, then prompting for an angle:










From here you have two options, you can either switch off dynamic input, and use the command line (press F12 to do this), or you can switch the dynamic polar input to cartesian, by pressing the UP arrow.

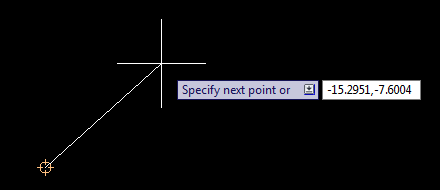

After pressing the UP arrow, you should see something like this:






In my opinion, I find the Dynamic Input gets in the way and clutters the drawing space when you are trying to do something, so I don't use it, but I have provided you with both options :)



Hope this helps,



Lee

Share this post


Link to post
Share on other sites
