3d Fillet

[profdrift]

I'm trying to model a part of a power press. I'm not sure but i think its called the pitman screw ball joint. It consists of a cylinder with external threading and a spherical ball attached below the cylinder's base. Or just imagine a large bolt with a spherical head instead of a hexagonal one. My problem is that I'm not able to fillet the joint of the sphere to the cylinder. I'm just a beginner in 3D. Any suggestions?



Thanks in advance

[ReMark]

A cylinder with a ball mounted to it? I might have approached it a slightly different way using a profile of the objects and the Revolve command.

[ReMark]

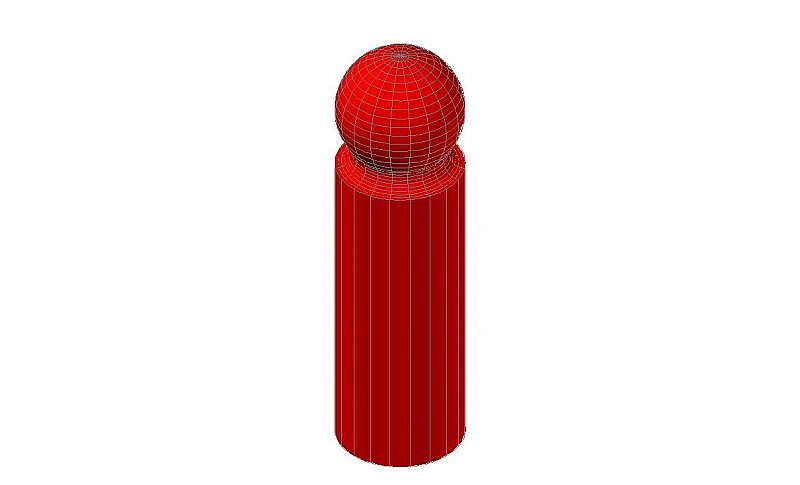

Is this something along the lines of what you were trying to do?



[Patrick Hughes]

A cylinder with a ball mounted to it? I might have approached it a slightly different way using a profile of the objects and the Revolve command.



This is a good suggestion. Another option is to do as you'e already approached it but after creating the shank and the sphere simply union the two together, then perform the fillet command on the interface.

[profdrift]

Yep, I got the answer..... I modeled the view in 2D, trimmed one half and revolved it along the center line.



Thanks a ton for your help!!!

[ReMark]

You're entirely welcomed profdrift. I'm glad to hear you were able to solve your problem.
