surface -> planar surface

Recommended Posts

frunza_samuel

Hallo everyone

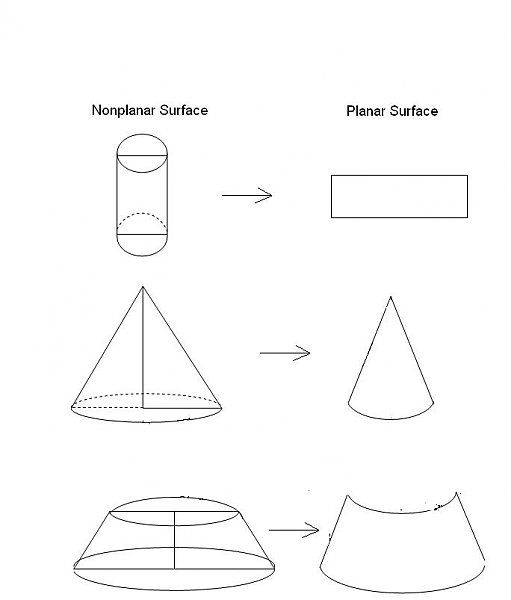

I know there is a procedure to turn a surface into a planar surface, but i don't really know if autocad can do that, or how to do it. By this procedure i mead transforming a cone into a surface, a cilinder into a surface for example, but in my case the main surface is not a basic surface (as show in the image) and the procedure is quite tricky. I'm thinking that it may be a command i didn't figured out, or a lisp procedure that could help me with this..

Thanks for help


Share this post


Link to post
Share on other sites
JD Mather
but in my case the main surface is not a basic surface



You forgot to post a picture of your case.

Share this post


Link to post
Share on other sites
frunza_samuel

i didn't post a picture for my surface because it's different from case to case. I need somethng that can do well with any nonplanar surface. I heared there is a procedure to this, don't know how is it called, and i am interesed if it is implemented in autocad as a lisp procedure, or something similar

Share this post


Link to post
Share on other sites
frunza_samuel

basic surfaces have mathemathic fomulas, but there are procedures for solving the others. can u please lend me a hand on this, or tell me where to search?



thank u for your help

Share this post


Link to post
Share on other sites
Hoozin

Just to clarify, you're talking about unrolling a surface (i.e. unrolling a complex object so that you know how to cut the plate so that it comes together properly) and not projecting the surface?



I know that Rhino can do this easily, don't know how well AutoCAD does it though.

Share this post


Link to post
Share on other sites
frunza_samuel

yes, unrolling, that's what i'm trying to get

But it isn't an autocad command for that. I'm thinking that there are some lisp procedures that can help :unsure:

Share this post


Link to post
Share on other sites
scj

Suppose, you have to look for Third-party solutions - for instance search for AutoPOL or http://www.ant-ares.de

Good luck

Jochen

Share this post


Link to post
Share on other sites
frunza_samuel

yes, that seems to be a solution

Even so, it's far from free for a stundent like me :roll:

thanks for help

Share this post


Link to post
Share on other sites
JD Mather
yes, that seems to be a solution

Even so, it's far from free for a stundent.



Autodesk Inventor is free to students http://engineersrule.org

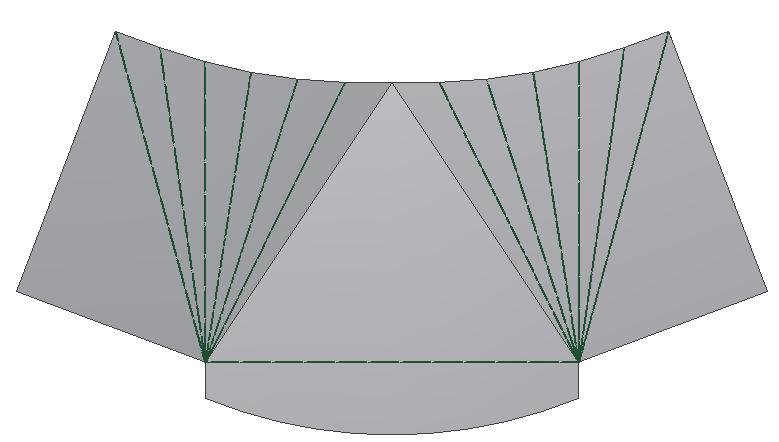

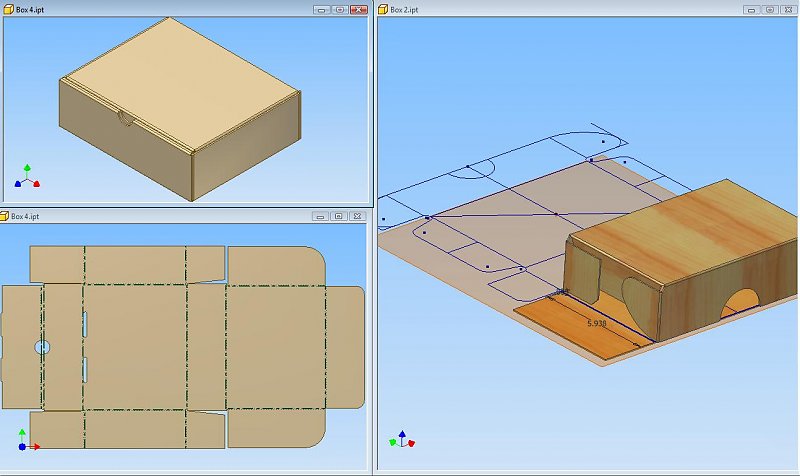

flat pattern.jpg




Share this post


Link to post
Share on other sites
stargatefan

Hello. Maybe you know where I could find this flat surface function on 2012 autocad mechanical or infusion?

Share this post


Link to post
Share on other sites
JD Mather

You need Autodesk Inventor.

What is this "infusion"? Did you mean Fusion? Inventor Fusion does not have this fuctionality.

Do not confuse the free Inventor Fusion with the full featured Autodesk Inventor.

Share this post


Link to post
Share on other sites
