help plot my drawing in 1:100 scale!!!


Recommended Posts

shidotoruki

i draw my drawing in meter unit (1drawing=1meter)!! how do plot this in a 20"x30" paper size!!!



kind post the step by step procedure!!!



i'll also attach the file!!



thanks!!!



need in my school project (autocad 2008 ) asap!!!

Link to post
Share on other sites

You'd get more responses if you explain what the problem is, where are you getting stuck with the plotting?



What confuses me is that you are drawing in meters, but say the paper-size in inches...



I can give you a start, find the Page Setup Manager (right-click on your Layout-tab, or under File) and set up your paper like it should be printed.

Link to post
Share on other sites
shidotoruki

i draw it in 1:1 anotation!! my unit is meter!!!! and i want to plot it in a 20"x30" (502mmX762mm) paper!!!! with a scale of 1:100!!!

Link to post
Share on other sites
shidotoruki

ahhm sorry for the exclamation! an i'm not shouting. i read the link and i think that the one i'm doing now., the only prob now is the scale anotation,. i use the 10:1 and i dont know if its correct., so that my drawing become 1:100 when print.,,



just like i said i draw in 1drawingUnit=1meter unit (ex. i need to draw 3m, and i put 3drawing unit in the model..,,



thanks alot to all that help me..,



sorry if my english is poor..,, ^_^

Link to post
Share on other sites
The_Cad_Kid

viewpoint/viewport scale is available in a small box just above and slightly right of the command bar ( in your page view tab ) (im guessing), you may also need to select the scale from one of the menus but im not certain as to which one as i dont currently have autocad infront of me. sorry x

Link to post
Share on other sites
  • 11 years later...

i draw it in 1:1 anotation my unit is meter and i want to plot it in a 20"x30" (502mmX762mm) paper with a scale of 1:100.

can someone help me with this? :D


Link to post
Share on other sites
Steven P
On 4/22/2021 at 3:39 PM, ren said:

i draw it in 1:1 anotation my unit is meter and i want to plot it in a 20"x30" (502mmX762mm) paper with a scale of 1:100.

can someone help me with this? :D


  •



Look at the links in the answers above?

Link to post
Share on other sites
CyberAngel
On 4/22/2021 at 10:39 AM, ren said:

i draw it in 1:1 anotation my unit is meter and i want to plot it in a 20"x30" (502mmX762mm) paper with a scale of 1:100.

can someone help me with this? :D

Do some research on viewports, paper space, and scales. You will use that information on a regular basis when working with AutoCAD.



If you go to a paper space layout and create a viewport with the proper scale, your model will fit on the paper. In a metric drawing, you'll probably have a 1:100 scale already available.

Link to post
Share on other sites
eldon

What is not always clear is that AutoCAD was programmed for millimetres when using metric, and therefore when using metres as the drawing unit, there is a factor of 1000 to be accounted for when plotting.



Your viewport scale should be 10 if you want to plot metres at a scale of 1 to 100.

Link to post
Share on other sites
eldon

Put a scale bar in the drawing so you can physically check with a scale rule when it is printed. But do remember when printing the PDF to go to Page Sizing & Handling and set it to 'Actual Size' rather than the default 'Fit'

Link to post
Share on other sites
BIGAL

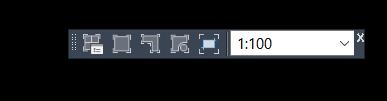

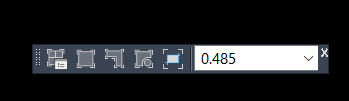

Open the Viewports toolbar it has a current scale indicator so can tell straight away, as your metric its real helpful, go into a viewport zoom etc, will see a number appear in the toolbar type 10 in that box that is 1:100 it is found by 1000/scale so 1000/100 = 10 1000/250 = 4







Edited by BIGAL
Link to post
