drafting_man

spline lisp

Recommended Posts

drafting_man

hi guyes

i wish anybody can help me

i'm searching for lisp make spline at the end point of lines that i selected .

Share this post


Link to post
Share on other sites
ReMark

I don't understand the question. Make a spline at the end point of a line? Do you mean create a spline between the endpoints of two or more lines?

Share this post


Link to post
Share on other sites
drafting_man

firest thank's mr remark for your reply

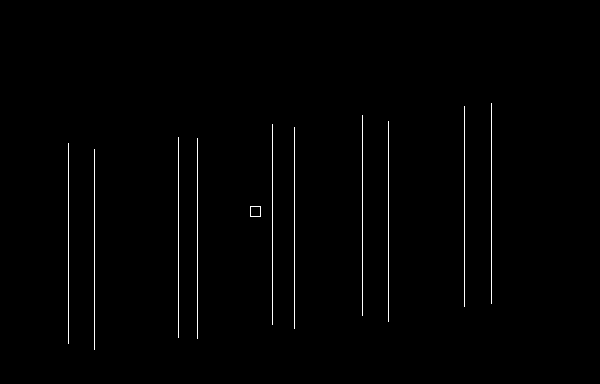

what i mean i have many lines and i want to create spline from the end point of each line like this image


Share this post


Link to post
Share on other sites
ReMark

I don't know of a lisp routine that will do what you want. My advice would be to do an Internet search for lisp routines that involve splines. Example:



"autocad"+"lisp"+"spline"



I know that Cadalyst magazine has a section of their website called Cad Tips where various CAD users have posted their own lisp routines. There are other websites that also post custom lisp routines.



We have a handful of people here who also have created custom routines for themselves and at the request of other forum members. Perhaps one of them will see your thread and respond in due time. Remember, we all volunteer our time and expertise so please be patient. Sometimes an answer does not come as quickly as we may want. OK?

Share this post


Link to post
Share on other sites
drafting_man

mr remark thank's for advice

i'm waiting for someone to help

Share this post


Link to post
Share on other sites
ReMark

I see you did not get any further responses.



Did you find anything on the Internet?

Share this post


Link to post
Share on other sites
alanjt

Fun quickie, now back to watching He-Man with my little girl...

(defun c:SPLC (/ ss lst)
 ;; Spline Connect
 ;; Alan J. Thompson, 05.15.10
 (vl-load-com)
 (if (setq ss (ssget '((0 . "LINE"))))
   (progn
     (vl-cmdf "_.spline")
     (foreach p (vl-sort
                  ((lambda (i)
                     (while (setq e (ssname ss (setq i (1+ i))))
                       (setq lst
                              (cons
                                (car
                                  (vl-sort (list (vlax-curve-getStartPoint e) (vlax-curve-getEndPoint e))
                                           (function (lambda (a b) (> (cadr a) (cadr b))))
                                  )
                                )
                                lst
                              )
                       )
                     )
                   )
                    -1
                  )
                  (function (lambda (a b) (< (car a) (car b))))
                )
       (vl-cmdf "_non" [color=Red](trans p 0 1)[/color])
     )
     (vl-cmdf "" "" "")
   )
 )
 (princ)
)


Share this post


Link to post
Share on other sites
asos2000

alanjt Thanks

Share this post


Link to post
Share on other sites
ReMark

Ask...and ye shall receive.



Where else can you get service like this?



You know what it is don't you? Priceless.

Share this post


Link to post
Share on other sites
alanjt

Code updated to account for non-WCS (completely forgot).



alanjt Thanks

You're welcome. Enjoy.



Ask...and ye shall receive.



Where else can you get service like this?



You know what it is don't you? Priceless.

:)

Share this post


Link to post
Share on other sites
drafting_man

wow alanjt u did it that what i want

than;'s man u are genius

Share this post


Link to post
Share on other sites
asos2000

alanjt

Thanks for update

in this case there is a request to keep the origen and post the update in a new post. Thats for the beginner (same as me) to learn how to avoid the commets.



Thanks again

Share this post


Link to post
Share on other sites
alanjt
wow alanjt u did it that what i want

than;'s man u are genius

:) You're welcome and enjoy.



alanjt

Thanks for update

in this case there is a request to keep the origen and post the update in a new post. Thats for the beginner (same as me) to learn how to avoid the commets.



Thanks again

Good point. I marked the updated portion in red.



Trans information:



trans

(trans pt from to [disp])

Arguments

pt A list of three reals that can be interpreted as either a 3D

point or a 3D displacement (vector).

from An integer code, entity name, or 3D extrusion vector

identifying the coordinate system in which pt is

expressed. The integer code can be one of the following:

0 World (WCS)

1 User (current UCS)

2 If used with code 0 or 1, this indicates the Display

Coordinate System (DCS) of the current viewport. When

used with code 3, it indicates the DCS of the current

model space viewport.

3 Paper space DCS (used only with code 2)

to An integer code, entity name, or 3D extrusion vector

identifying the coordinate system of the returned point.

See the from argument for a list of valid integer codes.

disp If present and is not nil, this argument specifies that pt is

to be treated as a 3D displacement rather than as a point.

If you use an entity name for the from or to arguments, it must be passed in

the format returned by the entnext, entlast, entsel, nentsel, and ssname

functions. This format lets you translate a point to and from the Object Coordinate

System (OCS) of a particular object. (For some objects, the OCS is

equivalent to the WCS; for these objects, conversion between OCS and WCS

is a null operation.) A 3D extrusion vector (a list of three reals) is another

method of converting to and from an object’s OCS. However, this does not

work for those objects whose OCS is equivalent to the WCS.

Share this post


Link to post
Share on other sites
asos2000

Is the update

 (vl-cmdf "_non"(trans p 0 1))

insteat of

(vl-cmdf "_non" p)

Isnt it



What I am thinking about is?




;(vl-cmdf "_non" p) for non UCS
(vl-cmdf "_non" (trans p 0 1)) ;update



The deference between the 2 versions is clear.

Share this post


Link to post
Share on other sites
alanjt

Correct, the only change. :) Since I was using command for spline, I had to convert the points return with vlax-curve-* from wcs to ucs.

Share this post


Link to post
Share on other sites
asos2000

alanjt

not only the change

but post whole code again and remark the change with deference color or copy the same line and add ; next to the line



for example this is a part of the first post

                      )
                   )
                    -1
                  )
                  (function (lambda (a b) (< (car a) (car b))))
                )
       (vl-cmdf "_non" p)
     )
     (vl-cmdf "" "" "")
   )



and for second post (or updated)

                      )
                   )
                    -1
                  )
                  (function (lambda (a b) (< (car a) (car b))))
                )
       (vl-cmdf "_non" [color=red](trans p 0 1)[/color])
     )
     (vl-cmdf "" "" "")
   )

Share this post


Link to post
Share on other sites
asos2000

or

                      )
                   )
                    -1
                  )
                  (function (lambda (a b) (< (car a) (car b))))
                )
       ;(vl-cmdf "_non" p)
       (vl-cmdf "_non" [color=red](trans p 0 1)[/color]) ; updated to avoid UCS
     )
     (vl-cmdf "" "" "")
   )

Share this post


Link to post
Share on other sites
rkmcswain
Fun quickie, now back to watching He-Man with my little girl...



...and stolen I mean copied here.

Share this post


Link to post
Share on other sites
benhubel
...and stolen I mean copied here.



I assume that "Greate" is an alien language that I am unfamiliar with. In the case, however, that this is English, you might want to update the post title.

o:)





**Edit**

Thank you for posting it, btw. These blog posts are the type of things that originally helped me get into writing LISP code.

Edited by benhubel
Added comment

Share this post


Link to post
Share on other sites
