Bobzy20 Posted June 9, 2010 Share Posted June 9, 2010 Hi guys I’m trying to fillet this pipe (see illustration below) but the fillet seems to go the wrong way. I have used the ‘Union’ command to bind them together but the fillet should be filleting between the pipe and the wall. I have also attached the DWG file (Un-Unioned) (zipped). Any help would be great. Thanks Bobzy20 Quote Link to comment Share on other sites More sharing options...

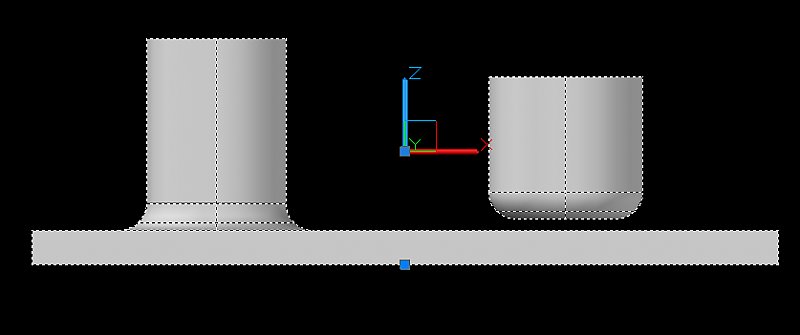

kencaz Posted June 9, 2010 Share Posted June 9, 2010 Make sure the objects are touching when you union them. These objects are all unioned into one, however, the fillet on the right failed because it is not actually in contact with the other part even though AutoCad see's them as 1 piece. KC Quote Link to comment Share on other sites More sharing options...

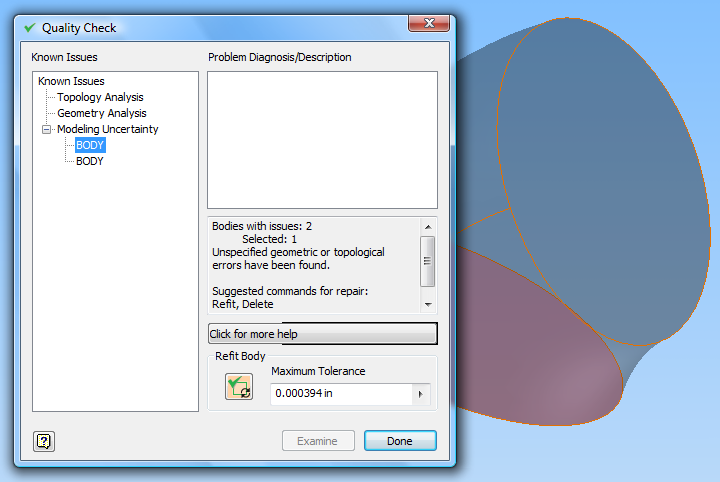

JD Mather Posted June 9, 2010 Share Posted June 9, 2010 A quality check on your solids in an Autodesk next-generation 3D modeling product indicates that the faces do not pass quality check. After Refit of the surfaces it fillets correctly (acisin attached). Part1_JD.zip Quote Link to comment Share on other sites More sharing options...
Bobzy20 Posted June 9, 2010 Author Share Posted June 9, 2010 You guys are unreal, so helpful & knowledgeable! I hope you get paid well in your jobs!!! Thanks very much for that, I was struggling for hours today trying to work that out! Speak to you soon. Bobzy20 Quote Link to comment Share on other sites More sharing options...
