Drawing Dimension line for Isometric dwg

[weiwah]

Hi guys, i faced a problem in drawing a dimension line parallel to the isometric view.

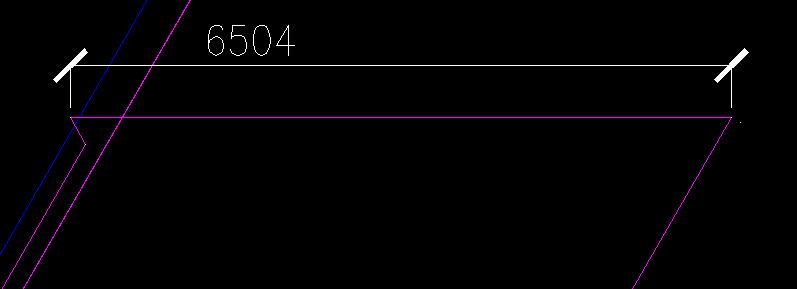

Attached is the print screen of the weird dimension. the dimension lines which showing 6504 value suppose to be parallel to the lines(magenta colour). Aligned and Linear dimension has been tested but produced same result.



Appreciate if any expert can advise me on this matter.Thanks

[lpseifert]

Dimension > Oblique

[Tankman]

Try Chapter 40 and, if you like download the chapter *.pdf file.



http://www.andrew.cmu.edu/course/48-568/2DVideosWEB_files/frame.htm

[weiwah]

Dimension > Oblique



Thanks bro. U save me lot time:D

[weiwah]

Try Chapter 40 and, if you like download the chapter *.pdf file.



Thanks for the link.

[weiwah]

I have 1 more question: is there any method to transform legend in normal plane into isometric shape legend?

[rkent]

I have 1 more question: is there any method to transform legend in normal plane into isometric shape legend?



This lisp routine will turn most anything into an isometric, in one plane.

ISOVIEWS.lsp
