Dear all,



I would appreciate a help with 3D coil drawing (step by step). I am using Autocad Mechanical 2008.



Thanks in advance

Posted

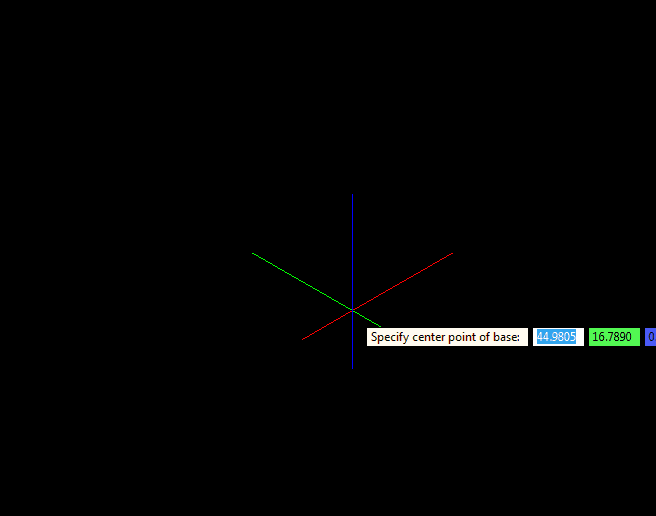

Command: _Helix

Number of turns = 5.0000 Twist=CCW

Specify center point of base:

Specify base radius or [Diameter] : 5

Specify top radius or [Diameter] : 5

Specify helix height or [Axis endpoint/Turns/turn Height/tWist] :






Posted

kencaz



How did you make the gif video did you do use Camtasia or some other?
