adding text after a dimension


Recommended Posts

roaddawgjim

I'm new to autocad 2009 when in a drawing after I dimension something I cant get the text after the dimension such as r2.00 typ I can only get typ before the dimension please help :oops:

Link to post
Share on other sites

You can also type "ed" and then select your dim and edit it there and if you want the text under the dim use this..

(orig dim)\X_your text

(_ = a space)

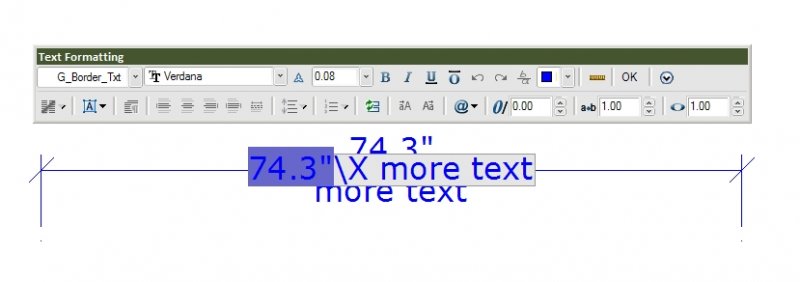

dim text.jpg

Link to post
Share on other sites
set the fits of your dim...related to your limits



HassanCAD: Your answer does not apply to this situation.



Another option is to add the text \XTYP after the brackets . This will result in the letters TYP appearing below the dimension. It comes in handy when space is at a premium.
