How do I get rid of lines on curve?

[jbird68]

Hey,

I have a model of a block. All the curved surfaces have line to show the surfaces. I just want to show th edge lines and not the surface lines. How do I do that?



[JD Mather]

dispsilh is the key.

[roof11]

yes...i think the value is 1 or 10 i guess

[JD Mather]

yes...i think the value is 1 or 10 i guess



Try 1 or 0, not 10.



1=On

0=Off

[jbird68]

dispsilh did not do anything, whether I use 0 or 1.

[ReMark]

Try the variable VSOBSCUREDEDGES. Set it to a value of 0. 1=on. 0=off. Does that do the trick?

[jbird68]

VSOBSCUREDEDGES does not seem to be a valid command. When I try that, I get "Press F1 for Help."

[ReMark]

Mech 2004? Ahhhh....old software.

[ReMark]

AutoCAD settings that affect 3D output.

DISPSILH – Display Sihouette

This setting affects the results of the Hide command. A setting of 0 displays tessellation lines. A setting of 1 suppresses tessellation lines.

FACETRES – Rendered Object Smoothness

This setting affects both rendering and hide results. The default setting is 0.5. The max setting is 10. A lower setting results in a quicker render time but rounded edges will appear as a series of straight segments. A higher setting results in a longer render time but rounded edges will appear much smoother.

ISOLINES – Contour lines per surface

This setting affects the wireframe view but not the Hide or Render commands. Settings can range from 0 to 2047. The default setting is 4.

SPLINESEGS – Segments in a Polyline Curve

This setting controls the number of segments in a polyline curve. The settings range from 0 to 32767 with the default being 8. The higher the setting the smoother the appearance is of a rendered curve.

[jbird68]

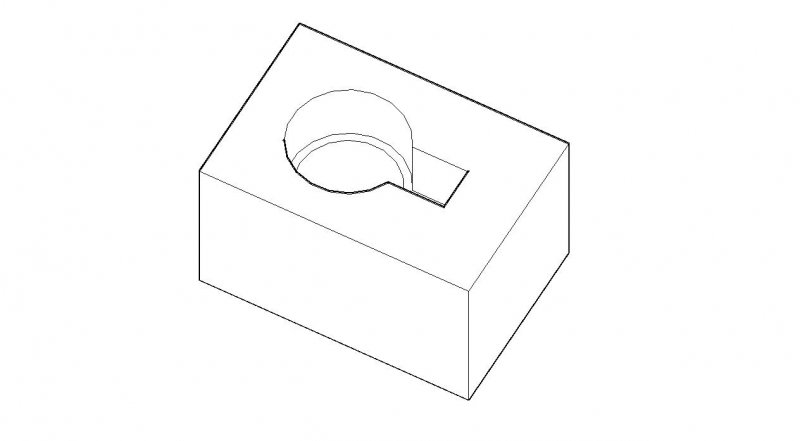

This is what I am trying to accomplish.

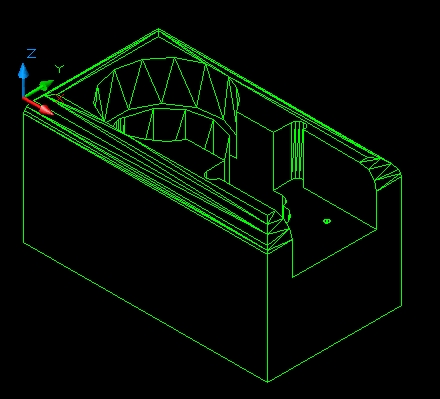

This was done by previous draftman and put into an assembly. I have tried all settings posted here and still can't get rid of the lines. It looks so much cleaner without the lines.

[ReMark]

Let's backtrack.



When you reset DISPSILH to 1 did you do a REGEN immediately afterwards?

[JD Mather]

Attach the file here.

[ReMark]

DISPSILH=1 should have worked as originally suggested by JDM. Try again. I tested it myself.



[jbird68]

I did regen right after making the change. I have attached the original file.



T890-02-20562_item9.dwg

[ReMark]

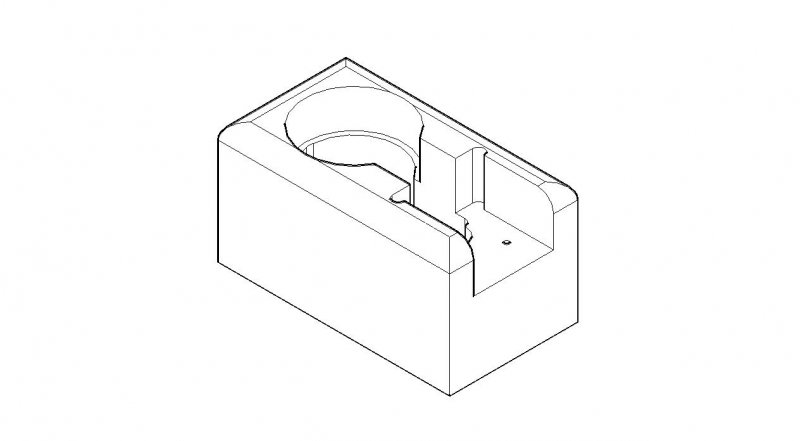

DISPSILH set to 1. 3DHidden view yields this:



[jbird68]

It does not change my view in 3D Hidden. Is there something else that could be set wrong?

[ReMark]

It does not change my view in 3D Hidden. Is there something else that could be set wrong?



Really?



I can get it to work and you can't?



No, I did not change any other setting.



Must be gremlins. Evil creatures they are indeed.



Well this is funny. I just reset DISPSILH to 0 and the tesselation lines did not show up. So, I can't get them back and you can't get rid of them!

[ReMark]

Seems like you really don't have to change any settings.



I closed your drawing without saving it. I reopened the drawing and went immediately to the isometric view. The visual style listed for the viewport is "Current". I changed this to 3DHidden and the lines that have so concerned you disappeared. That's all it takes.

[jbird68]

I don't see where to change it from "Current" to 3DHidden

[ReMark]

Arrrgh!



My brain hardly functions well on Monday mornings and you want me to recall the features of of product that is six years old? Do I look like a machine? Don't answer that. LOL



What happens if you type the word HIDE at the command line?
