Spucing up plain Elevations & Site Plans

MrButtonmush

By MrButtonmush
in AutoCAD Drawing Management & Output

 Share

Recommended Posts

MrButtonmush Contributor

MrButtonmush

Posted
Posted

Dear all,

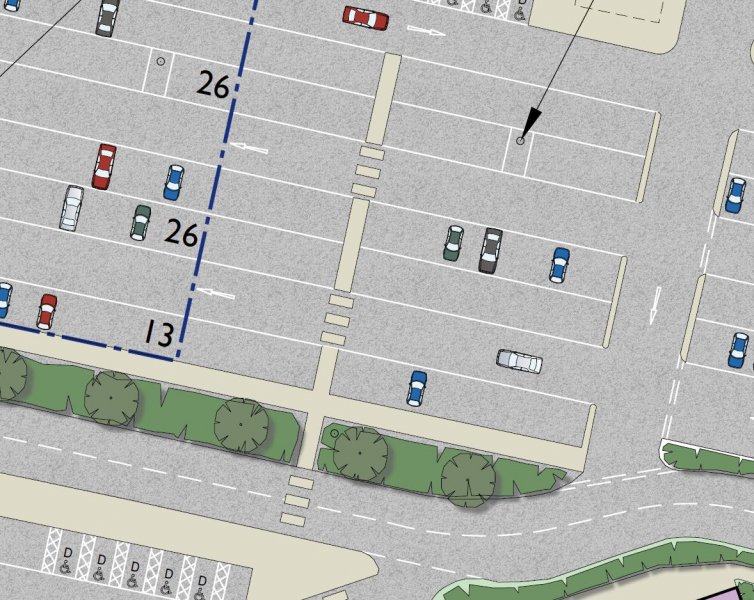

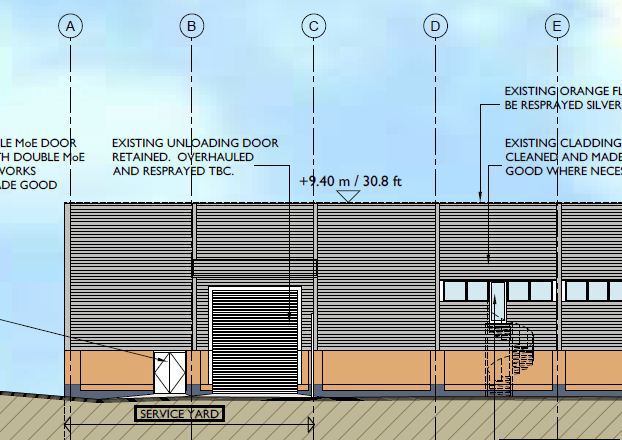

Using Acad 2010/11 only, can anyone tell me the best methods to get a simple line drawing elevation and/or siteplan to look like these examples: Note the car parking is grey with fleck texture, bushes have shadows and elevation has nice sky and stuff. I am aware how to use bring to front / back etc on hatching and screening to lighten colours etcSite.jpg



ReMark Grand Master

ReMark

Posted
Posted

Looks like something that could be accomplished using SketchUp or AutoDesk Impression.
