Spinxy Posted September 9, 2010 Share Posted September 9, 2010 Hey, I'm having trying to force my arrow heads inside my dimension lines! can anyone help? Cheers Quote Link to comment Share on other sites More sharing options...
RobDraw Posted September 9, 2010 Share Posted September 9, 2010 I have no idea what your dimstyle is but if the text is not on the dim line, you can have smaller dimesnions with the arrowheads inside but there is a limit to that. There may be a way to make that limit smaller. If I can find it I will post back. Quote Link to comment Share on other sites More sharing options...
RobDraw Posted September 9, 2010 Share Posted September 9, 2010 Got it. Select the dimension, right click, then select "Flip Arrow". Where you select the dimension determines which arrow head will flip. Quote Link to comment Share on other sites More sharing options...
Spinxy Posted September 9, 2010 Author Share Posted September 9, 2010 thanks rob, i will try that when i'm in work tomorrow, will have to turn my right click menu on!!!! i remember a version or 2 back being able to set this in the dim styles! thanks again Quote Link to comment Share on other sites More sharing options...
AutoMarcus Posted November 14, 2023 Share Posted November 14, 2023 hi guys, i am sure i saw this as an option recently, where you could click on a dimension and force the arrows either inside or outside the dimension lines. however i cant find it now. any thoughts? thanks Quote Link to comment Share on other sites More sharing options...
Seneca Posted January 16 Share Posted January 16 aidimfliparrow Quote Link to comment Share on other sites More sharing options...

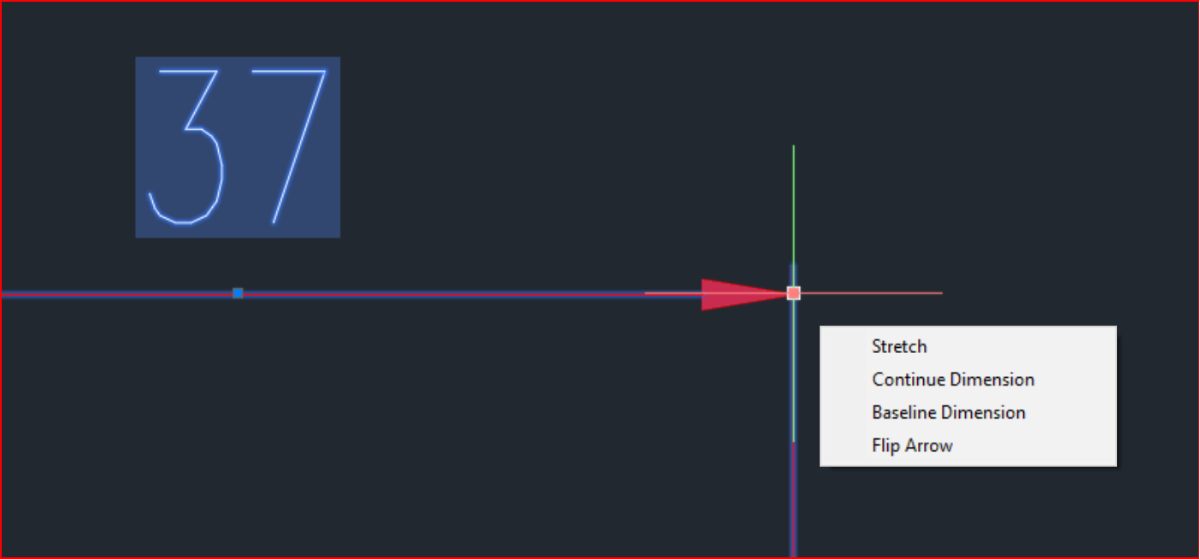

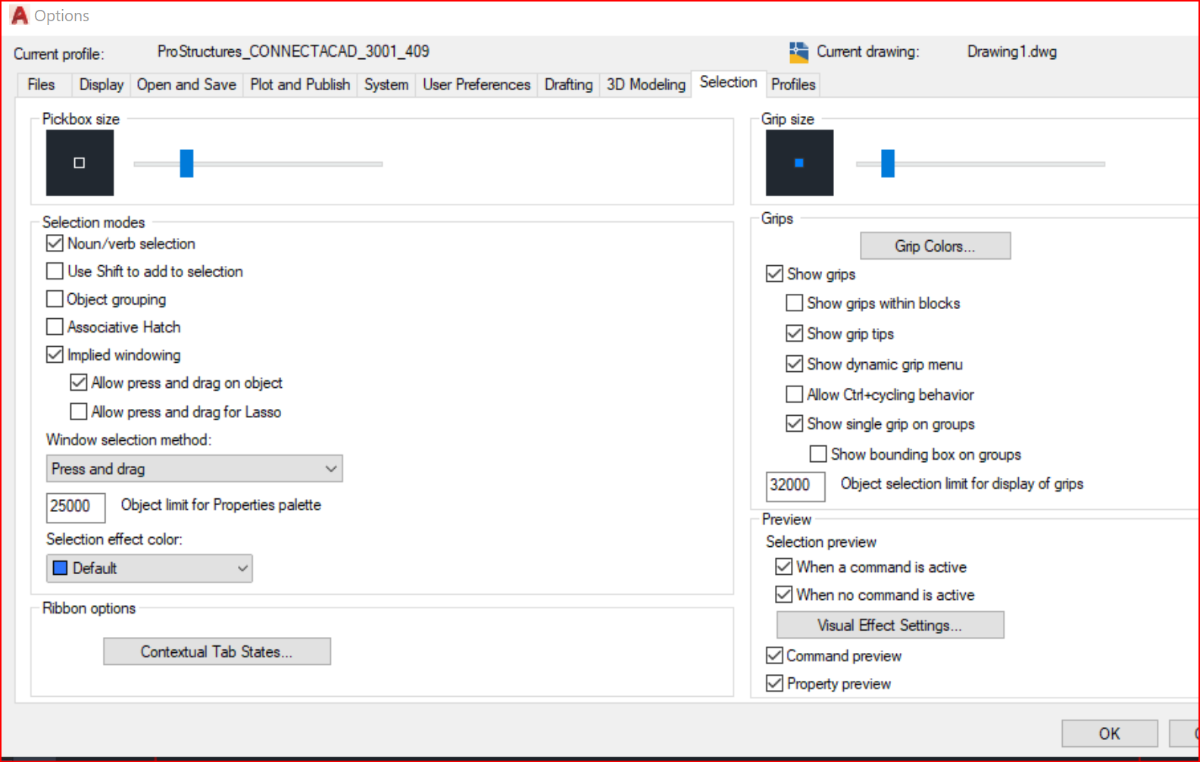

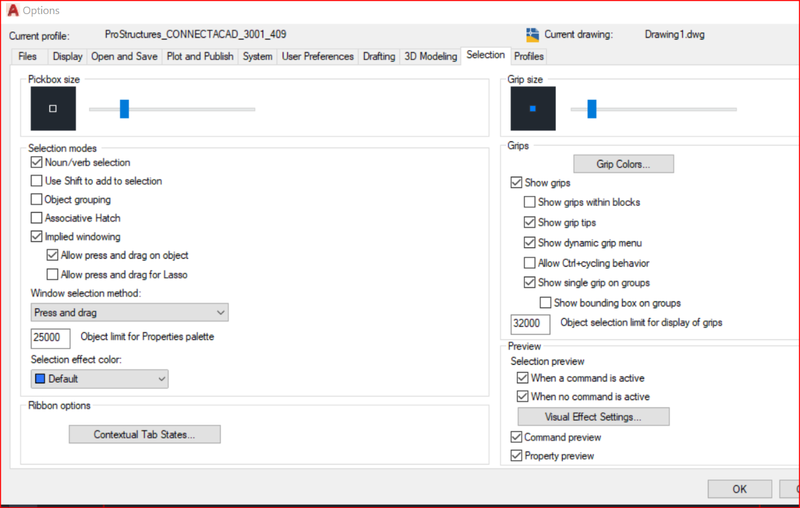

Dadgad Posted February 3 Share Posted February 3 If you have your dynamic GRIP menus enabled, in OPTIONS > Selection tab. Do it like this... Quote Link to comment Share on other sites More sharing options...
Dadgad Posted February 3 Share Posted February 3 On 1/17/2024 at 4:09 AM, Seneca said: aidimfliparrow Welcome to the CadTutor forum Seneca, nice one. Quote Link to comment Share on other sites More sharing options...
