Questions about floor slabs and thickened edges.

Recommended Posts

profcad

Where is the button to load the thickened edge profiles into Revit 2011?





Starting in Revit 2010, my floor slabs drop when I add a slope to it. It there a way to prevent this?





Thanks in advance.

Share this post


Link to post
Share on other sites
rvpas

Hi Profcad

You means (see picture) I am not a sure about my translation for the second point could you show an example ?

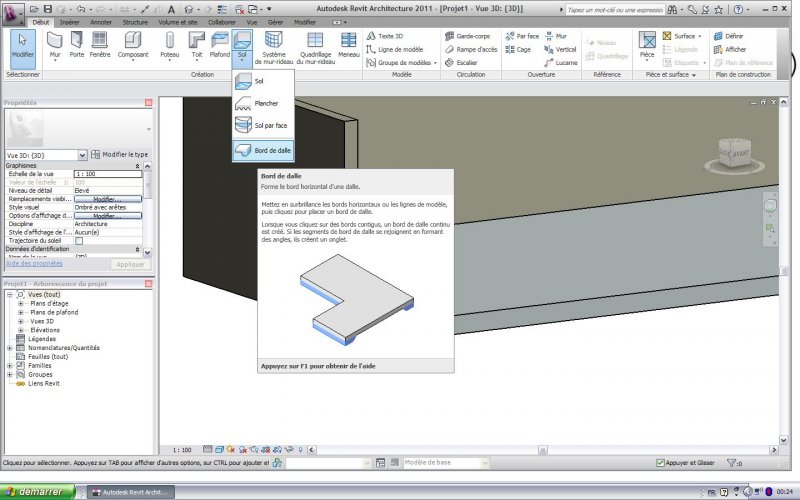

slab edge.jpg

Bye

Pascal

PS sorry I am just got a french version

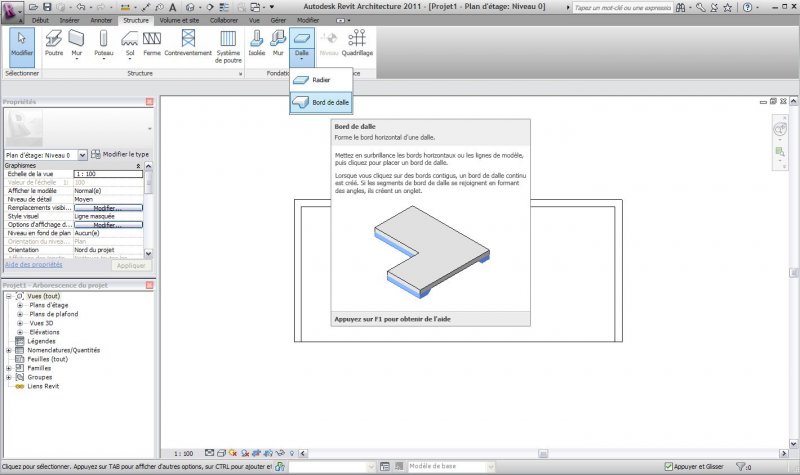

slab edge2.jpg

Share this post


Link to post
Share on other sites
profcad

Pascal,



Your images shows me how to start the slab edge tool.



I'm looking for the Load Profile tool so I can load my own custom Slab edge Profiles.



Thanks

Share this post


Link to post
Share on other sites
rvpas

Ok John

In fact you have to charge your familly in first

1-Insert tab / Load from Library panel / and select your custom profile

2-In project Browser

search Floors familly and expand it, you have 2 subfamillies

Floor type and Floor Slab Edge type

3-right click on slab edge type and select duplicate

4-double click on the type to open Floor Slab Edge Type Properties

5-change the default profile by your own.

That's it

I hope to have been rather clear Bye

Pascal
