Twister bulb - cant sweep along spline?

Recommended Posts

John Kimble

Hey, I'm pretty new to Autocad and I'm trying to draw one of those new energy-saving lightbulbs in 3D. It's a Phillips Mini Decorative Twister bulb to be exact. I'm trying to make it as accurate as possible. I have the base done and I did the spiral/middle part of the bulb, but I ran into a problem when I tried to do the bottom of the bulb where it meets the base. I used a spline since the bottom part of the bulb meets the spiral part at an odd angle, then curves at almost 90 degrees and goes straight to meet with the base. The problem is when I tried to sweep a circle along the spline Autocad wouldn't let me. If someone can help me with this or give me some tips on how best to do the bottom and top parts of the bulb, it would be much appreciated. Thanks.

Share this post


Link to post
Share on other sites
SLW210

Have you tried the loft command?

Share this post


Link to post
Share on other sites
John Kimble

I suppose it could be done that way, it just seems like it would be more of a pain in the you-know-what. I was hoping to do it with sweep. But I'll give it a go with loft. Thanks.

Share this post


Link to post
Share on other sites
Red333

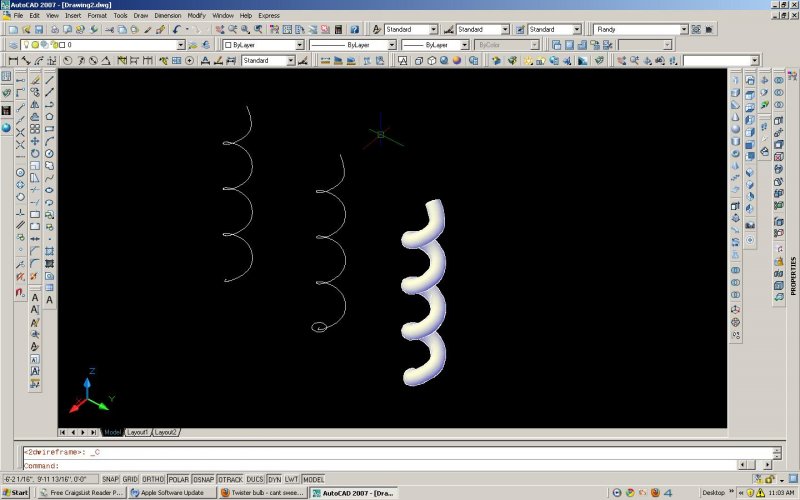

You could try a helix as well, but you should be able to sweep along a spline. Make sure that what you're trying to sweep is perpendicular to the path at the starting point. Here's an example:Example.jpg

Share this post


Link to post
Share on other sites
Jack_O'neill

Sweep won't cooperate if during the operation, the new 3d object intersects itself. You may have to fudge the shape a little if that's whats happening. Could be that the radius is too tight where you make your 90° bend into the base. You can test this by sweeping a very small circle along the path...if that works, then you'll know. if it doesn't, then you may have to find a different way to create it.

Share this post


Link to post
Share on other sites
SLW210
Sweep won't cooperate if during the operation' date=' the new 3d object intersects itself. You may have to fudge the shape a little if that's whats happening. Could be that the radius is too tight where you make your 90° bend into the base. You can test this by sweeping a very small circle along the path...if that works, then you'll know. if it doesn't, then you may have to find a different way to create it.[/quote']



I remember in the old days I would remove half a Torus and rotate and copy to make a 3D spring.:? If I recall correctly, I think the old Helix.lsp worked a little better than the HELIX command in AutoCAD 2008.

Share this post


Link to post
Share on other sites
JD Mather
...If I recall correctly, I think the old Helix.lsp worked a little better than the HELIX command in AutoCAD 2008.

Not even close is my recollection.

Share this post


Link to post
Share on other sites
kencaz

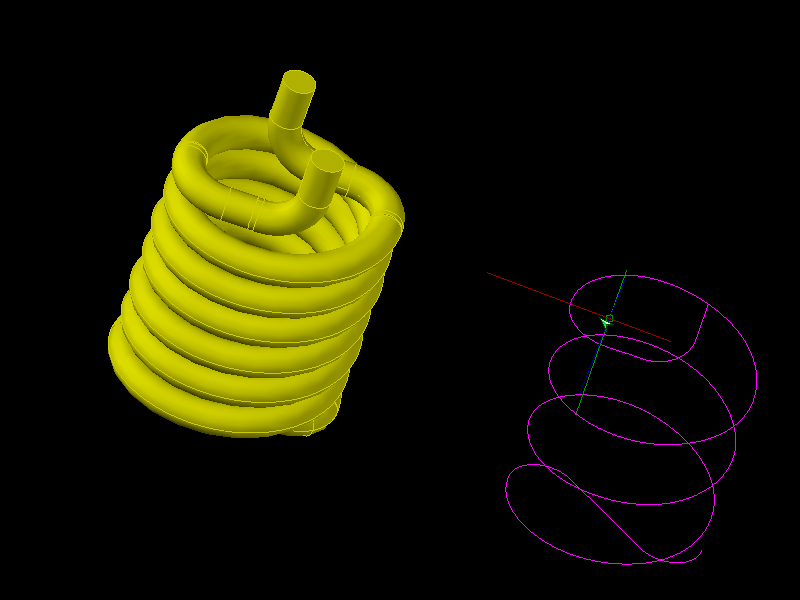

You can get some pretty good results using 2 helix's rotated and 180 and copied. Then manipulating the UCS a litte you can use filleted polylines to make the bends.









This is not a perfect example but it only took a few minutes. You can get a pretty accurate model with a little time.



KC

Share this post


Link to post
Share on other sites
Jack_O'neill
This is not a perfect example but it only took a few minutes. You can get a pretty accurate model with a little time.



KC



Show off!:P

Share this post


Link to post
Share on other sites
marmo

Hello,

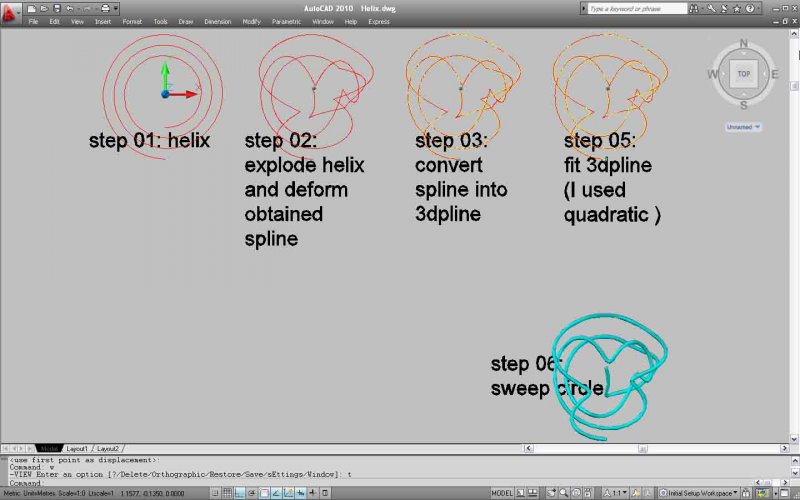

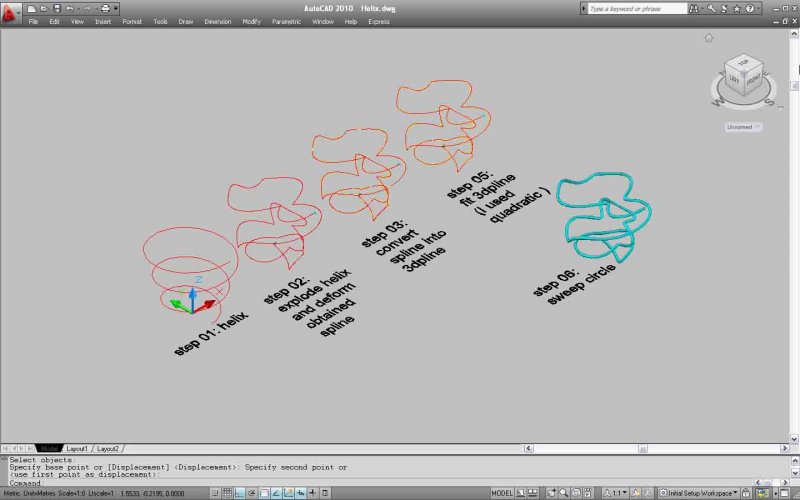

I did an experiment with a helix exploded and converted in spline, and later converted in smoothed 3dpline.

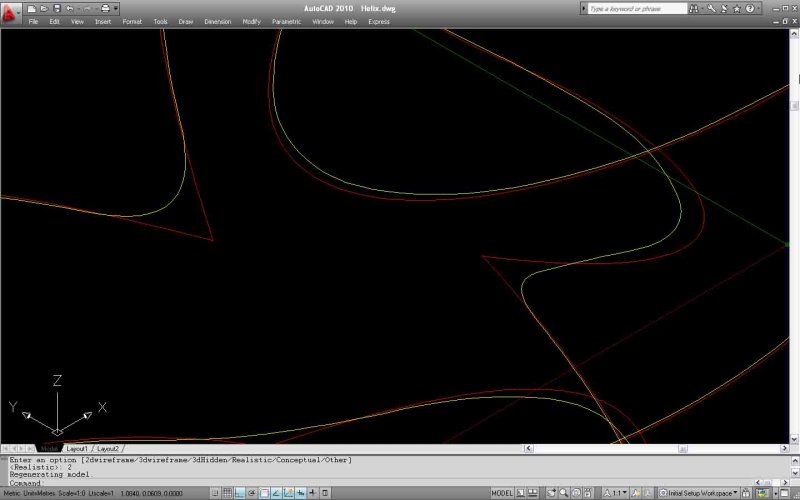

The conversion of spline in 3dpline that eliminates "sharp edges" that prevent the sweep.

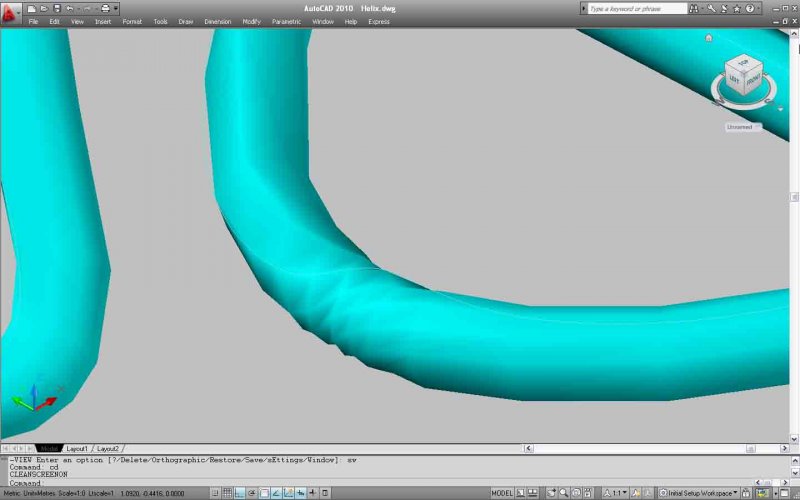

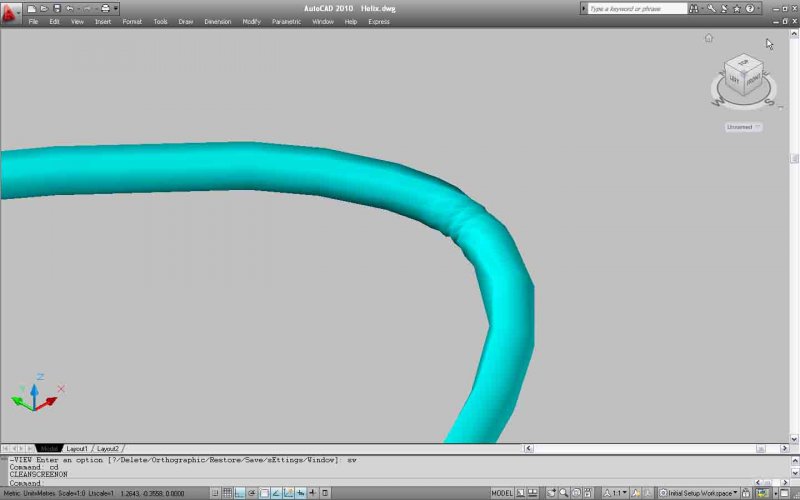

However the solid obtained has no a "clean" geometry as shown in the zoom.

Regards,

ScreenShot001 copy.jpg

ScreenShot002 copy.jpg

ScreenShot003 copy.jpg

ScreenShot004 copy.jpg

ScreenShot005 copy.jpg

Share this post


Link to post
Share on other sites
marmo

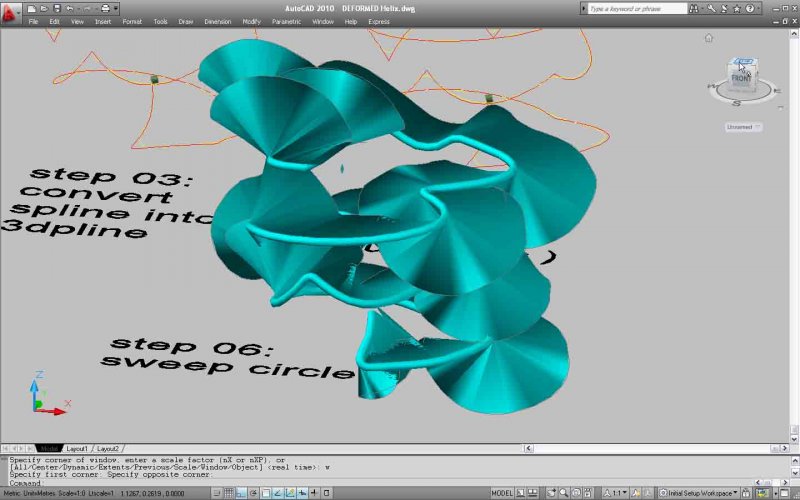

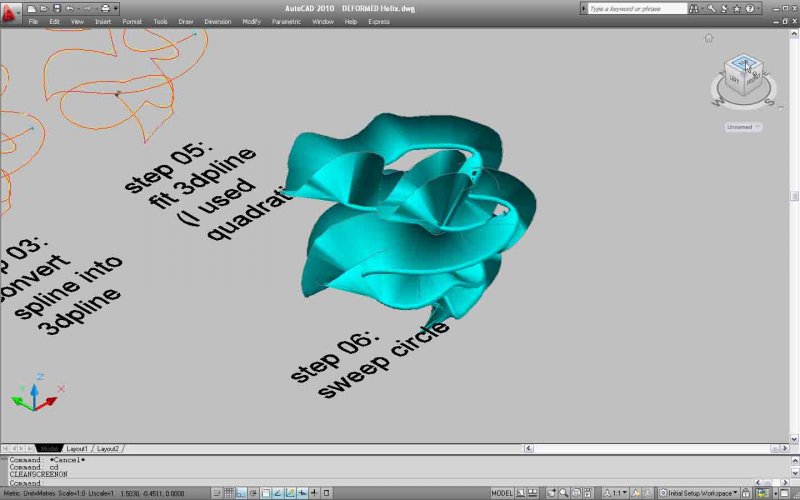

When you use sweep or loft pay attention to the geometries you get.

If they are not "clean" can make you ugly jokes.

When I closed my file, my deformed bulb has become a tropical flower!:shock:



ScreenShot A.jpg



ScreenShot B.jpg
