unroll surface overlap problem

Recommended Posts

rsl

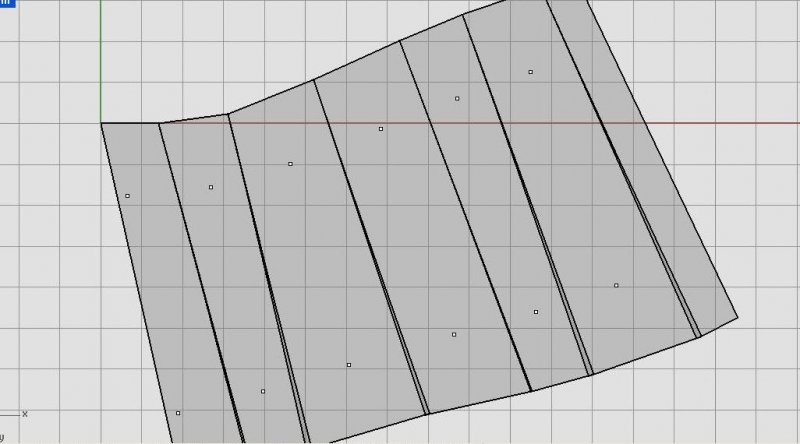

The image below is an unrolled surface of a hexagon tube. Why do the sides overlap? I don't mind if they overlap a little bit, but sometimes it can be pretty bad and obvious.. How do I avoid this? Thank you!




Share this post


Link to post
Share on other sites
JD Mather

Can you zip and attach the original file rather than a picture?

Share this post


Link to post
Share on other sites
rsl
Can you zip and attach the original file rather than a picture?





There you go..


Share this post


Link to post
Share on other sites
Organic

You attached the image again, not the file.

Share this post


Link to post
Share on other sites
rsl

unroll surface-hexagons.zip



Sorry! I was half awake yesterday and didn't read it properly.. Hope I get it right this time :D



Thanks for your patience

Share this post


Link to post
Share on other sites
SEANT

Some of your surfaces have a twist to them so, even though they are ruled surfaces, they are not necessarily developable.



If you relax the tolerance setting (Tools-Options-Document Properties-Units) to 0.2 millimeters the edges match up and the resulting area is still very close to the original.

_LowTol.zip
