How to import google sketchup file into inventor?

Recommended Posts

Ste1978

I I have google sketchup pro and have been given an image to try to insert to inventor, so we can add conveyors and hoppers, various other blocks.



I have managed to export the drawing into a Autocad 3D drawing, but from here I can't seem to find a way to get this in inventor.



Can anyone help? I have attached the dwg file, if anyone can make this into a part/assy for inventor then I would be very grateful and intrigues how you did it!



Many thanks,

Stephen



File is 1.4mb so I have uploaded it to this website:-



http://www.filesonic.com/file/937491264/ironbridge3d.zip

Share this post


Link to post
Share on other sites
Pablo Ferral

The problem you've got here is that Sketchup creates a mesh model and Inventor Creates a solid model. Even if you get the Mesh into Inventor it will appear 'Jagged' - Circles and arcs will look like polygons and faces will be composed of a number of triangles.



Check Out this post for an explanation of the differences:

http://cadsetterout.com/cad-setter-out/resources-choosing-a-3d-package/



You could try exporting to SAT, which Inventor should read.



You could try this download from Sycode:

http://www.sycode.com/products/skp_import_iv/index.htm

(Includes a good graphic that shows what you are going to get)



You would probably be better off re-modelling the part in Inventor.

Share this post


Link to post
Share on other sites
JD Mather

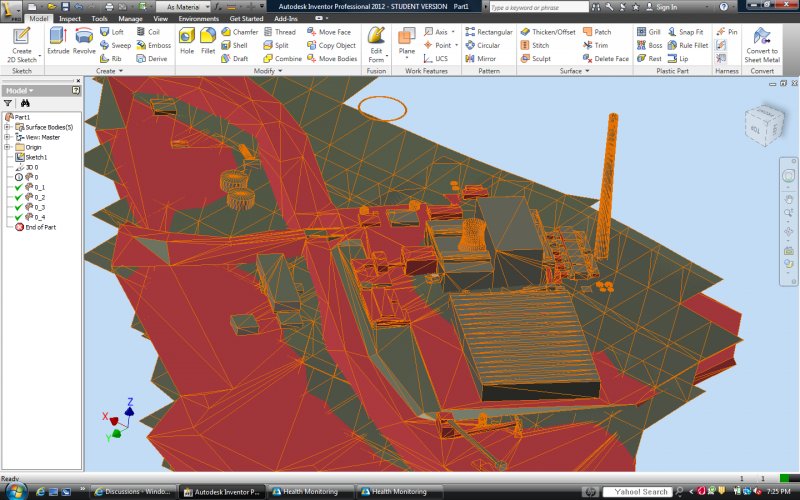

Inventor will import the dwg, but as indicated, faceted surfaces are of little use in Inventor other than for reference.


Share this post


Link to post
Share on other sites
Ste1978
Inventor will import the dwg, but as indicated, faceted surfaces are of little use in Inventor other than for reference.



I see, although when I try and import my Inventor just locks up, it's obvious something is not right. My method will have to be the other way around, export the inventor parts/blocks to 3ds and then add to sketchup, this will be suffice for this project!



Thanks again guys.
