woodman78

Icons for 2011/2012

Recommended Posts

woodman78

I have been looking at how to extra icons for AutoCAD ribbon tabs and panels I have created for our office. I downloaded a few sets of icons from the web but they didn't work our very well.



I then hit on the idea of using Sketchup to create icons. I created a model of the item I wanted to show like this.

icon grab.jpg



And then used Paint.Net to resize and save it as bmp.

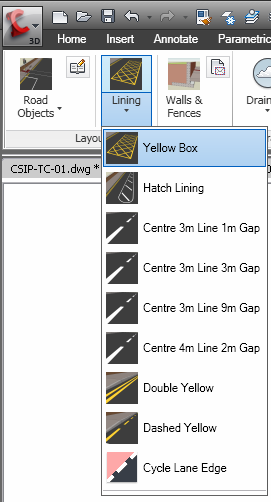

This what I have for icons in CAD then.









Just thought I'd share it.

Share this post


Link to post
Share on other sites
Ahankhah

Nice one but very difficult to guys like me!

Share this post


Link to post
Share on other sites
Organic

They look good. My custom icons are all 1 minute jobs done with the built in AutoCad icon editor lol.

Share this post


Link to post
Share on other sites
tzframpton

Awesome. This should be moved to the "Tips and Tricks" section.

Share this post


Link to post
Share on other sites
SunnyTurtle

Just wow that would make autocad a lot more user friendly that Autocad Icon editor is so restrictive and i just end up with letters

Awesome. This should be moved to the "Tips and Tricks" section.

Yes i agree

Share this post


Link to post
Share on other sites
BlackBox

Very neat tip! :)



Haven't tried paint.net yet, I've always used Photoshop, or the built in icon editor... just made some custom, discipline splash images today for some folks in other groups (environmental, and transportation respectively):



Share this post


Link to post
Share on other sites
woodman78

I have used Photoshop mainly too but gave Paint.net a try and really liked it for light stuff.

Share this post


Link to post
Share on other sites
Organic

That looks a very advanced icon.



Paint.net is a good program, much easier than Photoshop or Paint Shop Pro.



Personally the icons we use I have drawn using the built in AutoCad icon editor, which is like Paint. If people aren't happy with the crappy quality, then too bad. The icons don't make us money.

Share this post


Link to post
Share on other sites
BlackBox

FWIW -



These days I use Gimp (free full, and portable app), and IcoFx (free portable app) to produce all of my custom application, button icons and images for CUIx, etc.. My 'base' images are at 1000x1000 given that CUI automagically re-sizes icons for us in newer versions, but am beginning to do in 5000x5000 and simply re-size down as needed. :thumbsup:
