bracken2 Posted July 6, 2011 Posted July 6, 2011 hi, I have been working on this project, need help!! Benchmark 312, exists at the northwest corner of the survey area. it has a elevation of 88.9 feet and its coordinates are 521662,44895 For the BM symbol, use a 10-foot diameter circle bisected by a horizontal line and a vetical line. it asking me to use hatch apttern ans131, scale 2, angle 45,slelct two points in the symbol,point within the northwest and southeast quarter of the symbol. I'm not able to do this, please help Quote
BlackBox Posted July 6, 2011 Posted July 6, 2011 One minor correction... What [part of your homework] exactly can't you do? LoL Quote
bracken2 Posted July 6, 2011 Author Posted July 6, 2011 sorry it just every project I have been working on has not cime out right, I work all day on 20/20 for kitchen designs, so this is getting me up set Quote

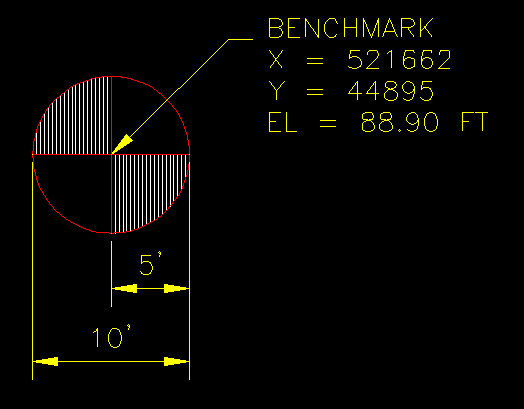

BlackBox Posted July 6, 2011 Posted July 6, 2011 No worries. Sometimes a picture helps things make more sense: Quote
Car5858 Posted July 7, 2011 Posted July 7, 2011 Perhaps this thread will help http://www.cadtutor.net/forum/showthread.php?57959-Civil-drafting-school-project-help&highlight=penn+foster This is another Penn Foster drawing assignment. I wish Penn Foster would correct the instructions. Quote
bracken2 Posted July 7, 2011 Author Posted July 7, 2011 ok, the pic. help, but how did you break the hatching up Quote
Strix Posted July 7, 2011 Posted July 7, 2011 breaking hatching up (exploding) is an offence punishable by death in these parts Did you mean something different? Quote
Organic Posted July 7, 2011 Posted July 7, 2011 breaking hatching up (exploding) is an offence punishable by death in these parts Agreed, had an external dwg with this in it today. Quote
Car5858 Posted July 7, 2011 Posted July 7, 2011 ok, the pic. help, but how did you break the hatching up Use the hatch command, and pic opposite quadrents top and bottom. By just picking 2 of the four quadrents your drawing will look like rendermans drawing. By changing the angle of the hatch in the dialog box, you change how the hatch is displayed. I advise you to use the preview button this will show you what it looks like before you accept it. Never explode hatches your asking for more problems then it is worth. Quote
bracken2 Posted July 7, 2011 Author Posted July 7, 2011 breaking hatching up (exploding) is an offence punishable by death in these parts Did you mean something different? Yes, I quess I did, by looking at the pic. you have two parts that has the hatching in them, that what I'Mm talking about, I'm A student in this class, I feel like these 6 project I need to finish is kicking me. Quote
SLW210 Posted July 7, 2011 Posted July 7, 2011 hi, I have been working on this project, need help!! Benchmark 312, exists at the northwest corner of the survey area. it has a elevation of 88.9 feet and its coordinates are 521662,44895 For the BM symbol, use a 10-foot diameter circle bisected by a horizontal line and a vetical line. it asking me to use hatch apttern ans131, scale 2, angle 45,slelct two points in the symbol,point within the northwest and southeast quarter of the symbol. I'm not able to do this, please help Those instructions seem clear and concise to me. What type of course is this? Are you just handed a book and expected to figure it all out. I have renamed your thread, please let everyone know what you are doing. No need to hide the fact you are a student, as a matter of fact, you will most likely receive more appropriate answers if your skill level is known. Quote
qball Posted July 8, 2011 Posted July 8, 2011 If your units are in feet and inches it will look something like this: Command: cc CIRCLE Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: Specify radius of circle or [Diameter]: d Specify diameter of circle: 10' Command: l LINE Specify first point: Specify next point or [undo]: Specify next point or [undo]: Command: LINE Specify first point: Specify next point or [undo]: Specify next point or [undo]: Command: h HATCH >> Forced layer S-HAT Pick internal point or [select objects/remove Boundaries]: Selecting everything... Selecting everything visible... Analyzing the selected data... Analyzing internal islands... Pick internal point or [select objects/remove Boundaries]: Selecting everything... Selecting everything visible... Analyzing the selected data... Analyzing internal islands... Pick internal point or [select objects/remove Boundaries]: Pick or press Esc to return to dialog or <Right-click to accept hatch>: Command: Command: *Cancel* Commands: CIRCLE (Diameter 10') LINE (Osnap to Quadrants) HATCH (Pick internal points, 2 of the 4 quadrants or chambers of the bisected circle, with the specified hatch pattern) fin edit: I only read the last post, not knowing it had been answered. I thought this was the thread from the other day where everyone was getting frustrated with lack of information. Quote
