Creating arc

Recommended Posts

oceanmyth

2 circle arc.jpg

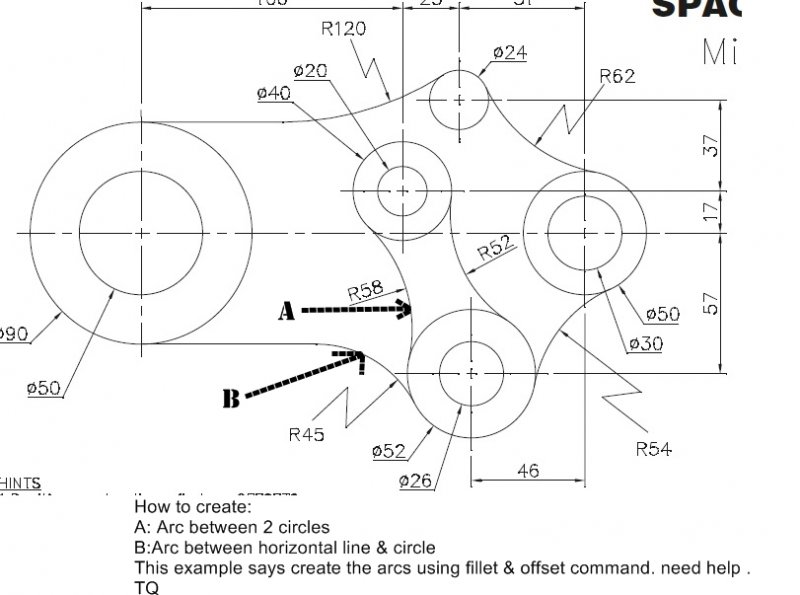

Hello everyone. newbie here. i need some help. i'm quite new to AutoCAD. Currently using AutoCAD 2006. refer to above pic how to create those arc. i've been trying using the arc command, but this exercise says the arcs is create using fillet & offset comm..TQ

Share this post


Link to post
Share on other sites
danellis

Taking arc A first: Your desired radius is 58 units. Offset each of the two circles you're connecting by 58. Draw a new circle, of radius 58, at the intersection of the two new circles. Delete the offset circles and trim the R58 circle to tidy up.



For arc B you essentially take the same process, the difference being that one of the elements you're filleting is a line. Ensure your line extends beyond the likely centrelpoint of the fillet circle. I'd have it touching the right-hand cirlce (with R52). Offset your line and circle by 45 units (the desired fillet radius). Draw a new circle of radius 45 centred on the intersection of the new line and circle. Trim to tidy.



dJE

Share this post


Link to post
Share on other sites
Andy Leach

Or simple option is to: Having already drawn the 52dia. circle and the 40dia. circle and they are in the correct positions, just use fillet.

F = fillet on command line, enter radius of 58 and select the two circles which are to be joined.



Now i'm using ACAD 2010 at the moment so not sure if this still works in 2006. Give it a try



Just drawn it on 2010 and worked fine.

Share this post


Link to post
Share on other sites
Andy Leach

Also, where did you get this image from? I'm creating some help vids for people like yourself for drawing simple things like this. This drawing should take about 10 mins to draw at the most.

Share this post


Link to post
Share on other sites
eldon

I am not sure why you are trying to use arcs when the instructions say use Fillet and Offset commands.



Arc A is a simple fillet between the two circles.



Arc B is a fillet between a line, offset 45 from the centre line, and the circle. You may have to trim the horizontal line at the left hand side. You could also draw a line directly from the Quadrant node, but then you would not be using the Offset command.

Share this post


Link to post
Share on other sites
Andy Leach

Agreed Eldon, otherwise you never learn to use the different commands available!!

Share this post


Link to post
Share on other sites
danellis

I did not know you could fillet to an entire circle like that!



dJE

Share this post


Link to post
Share on other sites
ReMark

Why has no one mentioned the Tan-Tan-Radius option of the Circle command?

Share this post


Link to post
Share on other sites
eldon
Why has no one mentioned the Tan-Tan-Radius option of the Circle command?



Because that would be cheating. :shock:



The object of the exercise was to use the Fillet and Offset commands, and in fact they do a better job than using the Tan-Tan-Radius because there is no trimming. :D

Share this post


Link to post
Share on other sites
ReMark

Depends on the exact wording of the assignment.

Share this post


Link to post
Share on other sites
SLW210

Moved to Student Project Questions Sub-Forum.

Share this post


Link to post
Share on other sites
oceanmyth
Taking arc A first: Your desired radius is 58 units. Offset each of the two circles you're connecting by 58. Draw a new circle, of radius 58, at the intersection of the two new circles. Delete the offset circles and trim the R58 circle to tidy up.



For arc B you essentially take the same process, the difference being that one of the elements you're filleting is a line. Ensure your line extends beyond the likely centrelpoint of the fillet circle. I'd have it touching the right-hand cirlce (with R52). Offset your line and circle by 45 units (the desired fillet radius). Draw a new circle of radius 45 centred on the intersection of the new line and circle. Trim to tidy.





dJE



TQ danellis. work great. now i been able to draw that.

Share this post


Link to post
Share on other sites
oceanmyth
Or simple option is to: Having already drawn the 52dia. circle and the 40dia. circle and they are in the correct positions, just use fillet.

F = fillet on command line, enter radius of 58 and select the two circles which are to be joined.



Now i'm using ACAD 2010 at the moment so not sure if this still works in 2006. Give it a try



Just drawn it on 2010 and worked fine.



TQ. this is the best solution. very simple. gr8!:D

Share this post


Link to post
Share on other sites
oceanmyth

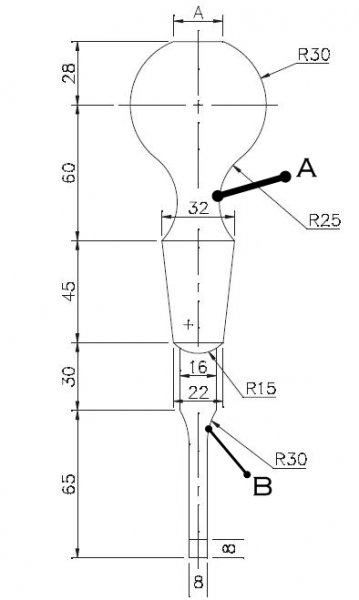

Hi everyone. other problems. need help of creating 2 arcs below.TQ

A: arc between circle & horizontal line

B: arc between 2 vertical lines


Share this post


Link to post
Share on other sites
SEANT

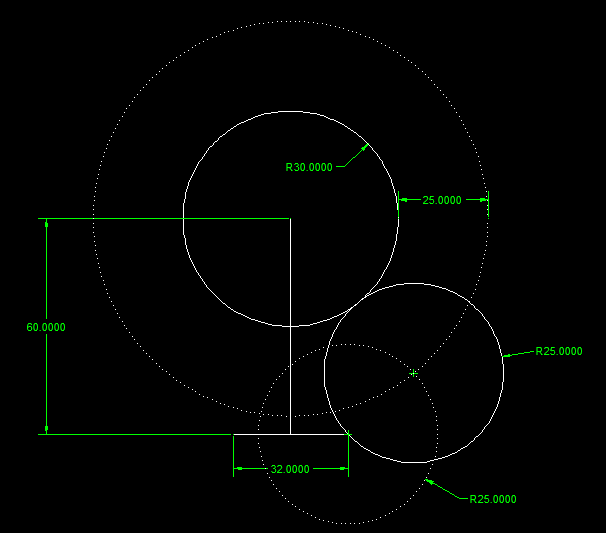

Both problems can be addressed in a similar fashion. Create construction geometry (circles, offsets, etc.) and use the appropriate intersections.


Share this post


Link to post
Share on other sites
oceanmyth

Tqvm seant :D

Share this post


Link to post
Share on other sites
