DRBJR45 Posted February 3, 2012 Posted February 3, 2012 I want to draw an elliptical sheet metal shape using the LOFTED FLANGE command using Inventor 2010. I read that Inventor will not do this using splines (the ellipse). I guess I need to convert the spline to something inventor can work with. AutoCad has the "pellipse" option. Is there something similar in Inventor? The attached file shows the 2 shapes, each on their own workplane. When I start the lofted flange command I am able to pick each profile but when I click ok I get the error. Thanks! DRBJR45 COVER.ipt Quote

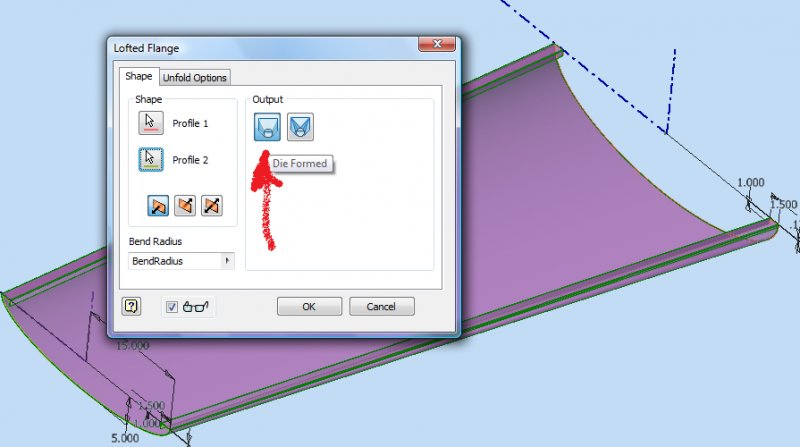

JD Mather Posted February 3, 2012 Posted February 3, 2012 Did you change your Output to Die Formed before selecting the sketches? Works here in 2012. Quote
DRBJR45 Posted February 3, 2012 Author Posted February 3, 2012 JD, thanks.....yes I selected die formed and it still failed. fyi, when i remove the double flange's the process works. but, i get errors with the flat pattern. Quote
JD Mather Posted February 4, 2012 Posted February 4, 2012 Oh well! Works fine in 2012. Maybe time to upgrade? Quote
