Recommended Posts

Tesjay

  1. In autocad 8, how could I get the XYZ coodinates of a point, on the drawing. With ID or list command it is possible to get the coordinates of a point, but they would not appear on the drawing the way dimensions do.

Share this post


Link to post
Share on other sites
ReMark

You could use a custom lisp routine. That would be one option.

Share this post


Link to post
Share on other sites
SLW210

MTEXT with a field.

Share this post


Link to post
Share on other sites
Dadgad

If you create an Mtext. and insert a field in the right click menu to specify the object and location it will display the coordinates, per SLW210's suggestion.

You probably want to set a DDPTYPE for you point first, so you can see it, as I have.

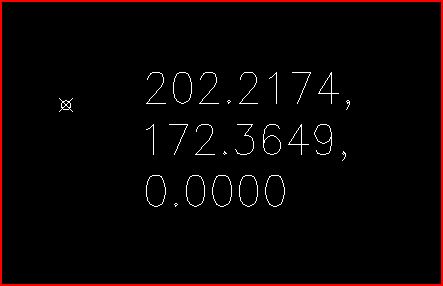

set a DDPTYPE first.JPG

Share this post


Link to post
Share on other sites
ReMark

Can it be set up to display Northing and Easting? Example: N202,456.73, E67,339.01

Share this post


Link to post
Share on other sites
Dadgad

I am clueless as regards northing and easting, but if you assign geographic values to your drawing you could get it to display longitude and lattitude.



I made a simple Mtext, and couldn't get it to display better than this, but with a multiline text you could.


Share this post


Link to post
Share on other sites
ReMark

Many state plane coordinate systems utilize northings and eastings not latitude and longitude. I was just curious. In my job I seldom encounter these types of situations and if I do I use a custom lisp routine that adds the "N" and the "E" designations to the front of the coordinate.

Share this post


Link to post
Share on other sites
eldon

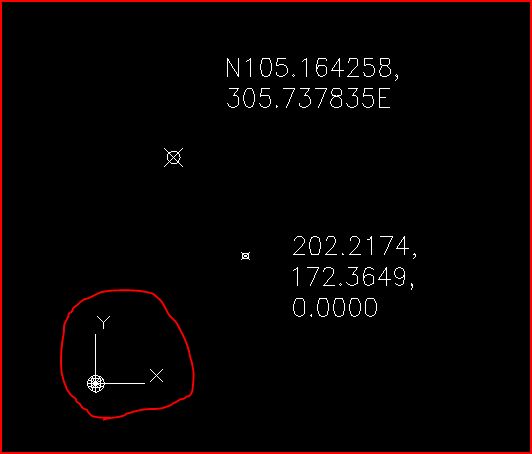

Once you get into Mtext with fields, don't be too greedy and get the position x, y and z all in one go. Format as desired. These are based on the Insertion Point (Top Left)


Share this post


Link to post
Share on other sites
ReMark

eldon is on a tear today. He's just knocking these babies out of the ballpark.:lol:



Unnecessary

Edited by SLW210

Share this post


Link to post
Share on other sites
Murph_map
Many state plane coordinate systems utilize northings and eastings not latitude and longitude. I was just curious. In my job I seldom encounter these types of situations and if I do I use a custom lisp routine that adds the "N" and the "E" designations to the front of the coordinate.



How about creating a block to display it and insert the blocks where you need the text/labels. :)

http://www.lazydrafter.com/autocad-tips/create-a-northing-easting-block-with-fields

Share this post


Link to post
Share on other sites
Dadgad
Once you get into Mtext with fields, don't be too greedy and get the position x, y and z all in one go. Format as desired. These are based on the Insertion Point (Top Left)



......couldn't get it to display better than this, but with a multiline text you could.



That's more to the point Eldon, nicely done.

The first one I did was directed to the OP's inquiry, this plays beautifully to the Northing & Easting question. :beer:

Share this post


Link to post
Share on other sites
