Rickard5 Posted October 30, 2008 Posted October 30, 2008 Today my latest eBay gem arrived I won some LeRoy stuff, and there was an added bonus of a Lead Clutch. so all hot and Happy I made a Holder for the lead clutch for my HP 7440 and did some Plotting with HB lead on Vellum. I Loved that look, and it's got me woundering if there was a way short of Photoshop to plot from Autocad 2002 or 2008, and have it have that Pencile LOOK, something like theese! I'm Really likeing the look of the Pencile sketch Quote
ReMark Posted October 30, 2008 Posted October 30, 2008 I've seen a couple of lisp routines that will take a CAD drawing and apply a "squiggle" or "jitter" factor to the linework to make it appear it was hand drawn. Is that what you're looking for? Quote

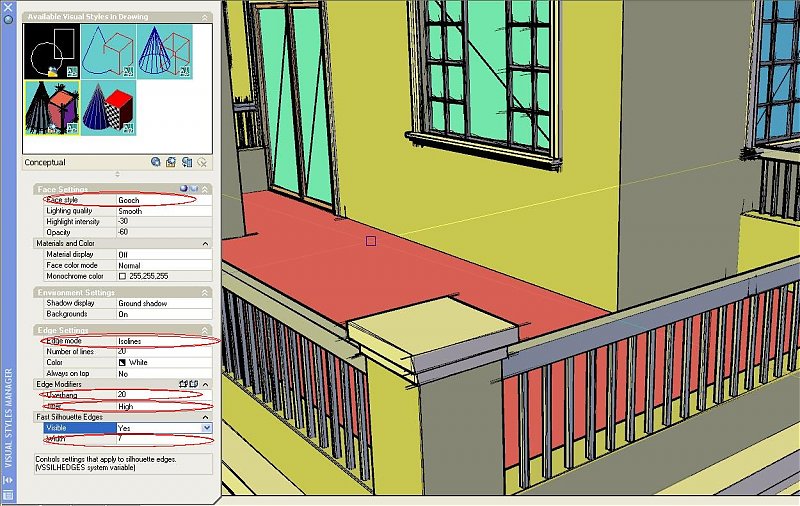

nocturne00 Posted October 30, 2008 Posted October 30, 2008 Today my latest eBay gem arrived I won some LeRoy stuff, and there was an added bonus of a Lead Clutch. so all hot and Happy I made a Holder for the lead clutch for my HP 7440 and did some Plotting with HB lead on Vellum. I Loved that look, and it's got me woundering if there was a way short of Photoshop to plot from Autocad 2002 or 2008, and have it have that Pencile LOOK, something like theese! I'm Really likeing the look of the Pencile sketch For 3D models, yes but not as good as the ones on your link. In cad there's only a way to add pencil like overhangs on edges of a model. Try to play with the visual styles and their settings, ill post a screen. Quote
ReMark Posted October 30, 2008 Posted October 30, 2008 There you go Rickard5. nocturne00's solution looks dead on. If you really want to get "back to basics" why not try using the Sketch command too? I'm not sure it is even documented any more. Quote
nocturne00 Posted October 30, 2008 Posted October 30, 2008 Presentations like Rickard has mentioned are really classic, I like (and also miss) making presentations like those back in college... some revival of it could be on an autodesk wish list, but I believe there's still no beating the good old Drafting Board, paired with all your Technical Pens, Steadler Pencils and a classic Leroy Set... Quote
ReMark Posted October 30, 2008 Posted October 30, 2008 Couldn't agree with you more noctune00. Is this something that can be accomplished with Sketchup? Quote
Rickard5 Posted October 30, 2008 Author Posted October 30, 2008 Thanks guys for the ideas, But what I'm more looking for is some way to give my Plots that "more Soften look" and maybe the Overshot lines look, I really can't explain it. What I do is CHEAT alot, Like when we have a presentation to create to sell a jobmy General work flow is where I'll draw the part in Autocad then Plot a Hidden View and either I'll turn it over to my asst. or I'll do a Marker rendering from that plot, then Replot the Drawing over the marker Rendering with RepdioGraph Pens in my Pen Plotter. or If I need something that is more "Sketchy" I'll even Plot a drawing of the part and then Trace it like I were inking it,but in Pencil on Vellum. Then Scan it back in to make my Presentation. While I could go on an all day Rant about Board Drafting and Strip Mall Cad Operators, Let's just leave it as Autocad is nothing more than tool like a Template, I Try hard to use autocad to enhance my Manual Drafting not to replace it but it would be kind of kool to be able to plot to a laser printer and it look like a copy of an original sketch Quote
f700es Posted October 30, 2008 Posted October 30, 2008 Several ways to get close to this. There is the "Napkin" command for ADT that can get close to this. http://www.cadforum.cz/cadforum_en/download.asp?fileID=102 There are several "freehand" lisp routines that can be used if you have vanilla AutoCAD. SketchUp can be used to do this as well. Remember that you can apply styles to 2D line work just as easy as to 3D objects. I like this result better. You can also download plugins for programs like Photoshop and apply these to raster images of your CAD work. You can also print out your design and trace over with pen on a light table. Quote
f700es Posted October 30, 2008 Posted October 30, 2008 Autodesk Impression, and its free. Free if you have the subscription. That's how I got my copy. Sean Quote
Rickard5 Posted October 30, 2008 Author Posted October 30, 2008 Autodesk Impression, and its free. Impression is exactly what I want but they won't sell it to me Quote
nocturne00 Posted October 31, 2008 Posted October 31, 2008 Couldn't agree with you more noctune00. Is this something that can be accomplished with Sketchup? Yep sketchup could also do this as the guys mentioned above. ive not used autodesk impression yet, some reading about this in order... perhaps the wishlist is already granted. Quote
f700es Posted October 31, 2008 Posted October 31, 2008 Yep sketchup could also do this as the guys mentioned above.ive not used autodesk impression yet, some reading about this in order... perhaps the wishlist is already granted. Impression can do this. I actually think SU does it better and for free (or easier free, since you have to buy the subscription to get Impression). Both Impression and SU have their good points. I might throw up some examples of both and maybe what Acad can do with the freehand lisp. Quote
f700es Posted October 31, 2008 Posted October 31, 2008 OK, here are a few examples... CAD lines in SketchUp with no styles... Here it is with s sketch style... Full CAD file view... Now in SU again... Now in Impression... Quote
f700es Posted November 2, 2008 Posted November 2, 2008 Will SU take a DXF ? All day long :wink: Quote
nocturne00 Posted November 2, 2008 Posted November 2, 2008 All day long :wink: heeeeyyyyy awsome,,, BIG thanks for the heads up on that one. I like the one with the roof shingles that looks like its been done in color pencils. will find some drawings of mine soon to play with on monday. Cheers f700es Quote
f700es Posted November 2, 2008 Posted November 2, 2008 heeeeyyyyy awsome,,, BIG thanks for the heads up on that one. I like the one with the roof shingles that looks like its been done in color pencils. will find some drawings of mine soon to play with on monday. Cheers f700es Now that one is AutoDesk Impression. But a similar look can be acheived in SketchUp. Quote
