Inventor image renderer?

[Lewis C]

Hello, I would like to know if there is another program or plugin you can use with Inventor to produce photorealistic images.



Solidworks have an additional program called Photoview 360. Does anybody know of a similar product to use with Inventor??



Many Thanks.

[Lewis C]

Anybody know of one?

[Lewis C]

Ill take this as a no.

[SLW210]

Wow, you waited less than 2hrs for a response?



Do you have Inventor Studio?

[JD Mather]

Ill take this as a no.



Then I won't give you the two solutions.

[Lewis C]

Hello sorry for my impatience. Umm yes I do have inventor studio, under the environments tab.

JD, can you please tell me the two solutions?



Thank you.

[JD Mather]

You have found the "free" (free in that it is included in Inventor) solution - Inventor Studio.

Also Inventor Publisher. http://usa.autodesk.com/adsk/servlet/pc/index?id=14640987&siteID=123112

If you are a student you can download Inventor Publisher for free as well from http://www.autodesk.com/edcommunity

[Lewis C]

Publisher looks very good, does it produce photo realistic images? If so thats exactly what i'm after. I am not happy with the options you have within Inventor, they are very basic and I cannot set the level of DPI, or lighting properly. Studio is better for that as you can set the DPI, change the lights e.g. spot/point light but you cannot output images using the realistic option, only illustrative or shaded, which I find very annoying.



Also I have just found a program called Keyshot, it looks very good aswell, and apparently compatible with Inventor. Do you have any experience or advice about this program?

[SLW210]

Check out the SHOWCASE forum several there use Keyshot.



Post questions about Keyshot in the DESIGN SOFTWARE forum.

[JD Mather]

...but you cannot output images using the realistic option, ...



Sure you can.

[Lewis C]

The only way I know of producing realistic images with studio is with the render animation command, I set the output as images and set an on screen view, and the duration to last 1 sec, I also have 'Preview no render' unticked. This (long winded) way works but the image quality seems to be the same, even between DPI setting of 100 - 6000! so it seems studio doesn't like producing realistic images this way, and the lighting seems to get outputted slightly off.



Is there another way?



Which would you recommend between studio and publisher?

[JD Mather]

Render Image, not Render Animation.



You might find some information by searching Google for Bill Bogan Inventor Studio tutorials, but I don't think he has written anything recent.



And search http://au.autodesk.com for classes by Flaylor and perhaps others.

[Lewis C]

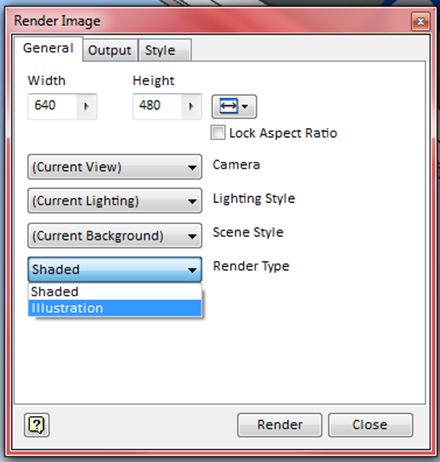

Yes but render image doesn't have the realistic option, only shaded or illustration.

This may be a feature for Inventor Professional only.

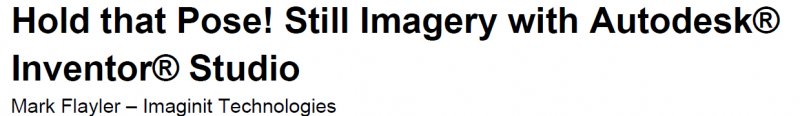

AU looks really useful I have registered an account with them. I do know how to use Studio, I have created some animations recently, but I probably will pick up a few tips from Mark Flayor.

[JD Mather]

Inventor Studio is the same in all releases (except for maybe LT - which I have never seen).

I assume you found the classes by Mark Flaylor - at AU





I did a quick search - I seem to remember several - I think he has some info on Studio on his website as well and be sure to check out the Bill Bogan tutorials.

[Lewis C]

Yes I have had a look, but that tutorial was back in 2009 and i'm sure the older versions of Inventor Studio had the realistic option, but not anymore. I have seen lots of Autodesk forums saying there is no realistic option, im not sure what to believe.



And yes Bill Bogan's tutorials look very useful, ill look him up.

[SLW210]

What options are on the OUTPUT Tab?

[abstracted]

If you don't have access to the previously mentioned programs or don't like inventor studio, you can always use the "realistic" view mode in the model environment. This mode enables ray-tracing and can produce very nice looking images if you have some idea what your doing. This is an example:





There are a few drawbacks of going this route.

1) You can't make animations.

2) You can only image export the master position representation.

3) The UCS in the bottom left (you can cut it out with an image editing program though).

[Lewis C]

The only options under the output tab are to select output destination, and amount of anti-aliasing.

[Lewis C]

Hello abstracted,



Yes I am aware of using this method but I feel it doesn't give you as much realism as other methods, im experimenting with a Keyshot trial at the moment and in my opinion the results are far better. It is easy and very fast.



And btw you can remove the XYZ axis indicator in application options under the display tab.
