Inventor 2011 IGES Thread Export Problem

Recommended Posts

vkmaynard

When exporting to an IGES format the threads are missing.



Why?



Thanks,



Victor

Share this post


Link to post
Share on other sites
JD Mather

Cosmetic threads or modeled threads?



My guess is cosmetic (picture texture that sort of looks like threads). Zoom in and see if you have real threads (v-notch geometry).

Share this post


Link to post
Share on other sites
vkmaynard

The threads were made by drilling a hole in a solid and specifying the thread type.



Victor

Share this post


Link to post
Share on other sites
Bishop

Those threads are just an image map that Inventor applies to give the appearance of threads. They're not really there - it's just a smooth face of the appropriate diameter, as far as exporting goes. If you take a look in the Autodesk exchange, though, you can download an app - made by Autodesk - that will convert your threaded hole features into actual modeled threads. You can export those as actual geometry.

Share this post


Link to post
Share on other sites
vkmaynard

What is Autodesk Exchange?

Share this post


Link to post
Share on other sites
vkmaynard

Thanks. Found it, installed it, does not show on the ribbon.

Share this post


Link to post
Share on other sites
Bishop

Part modeling environment, tools tab, right side.

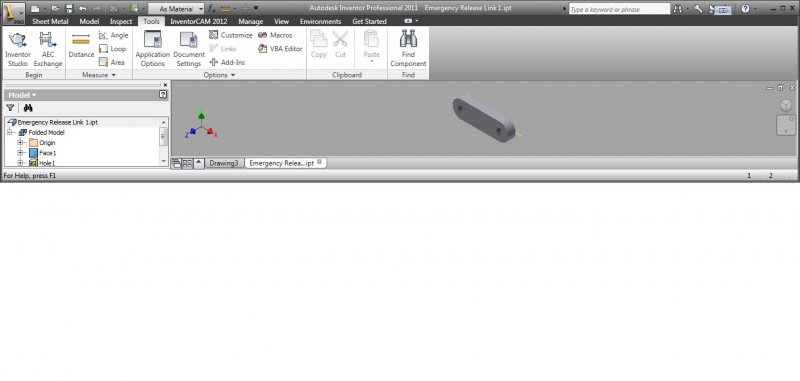

thread modeler.jpg

Share this post


Link to post
Share on other sites
vkmaynard

Not there




Share this post


Link to post
Share on other sites
vkmaynard

Problem solved thanks to PhilippeLeefsma Senior Developer Consultant.

He sent a link to the correct version for 2011.

Note: This tool converts a Thread Festure not a Hole Feature using a thread.

Thanks Philippe!!

Share this post


Link to post
Share on other sites
vkmaynard

One last problem. I cannot use this on o.125" plate with any thread size. I get an error message

---------------------------

Modelization Error

---------------------------

Failed to create CoilFeature... Try with a bigger Pitch Offset value

---------------------------

OK Cancel

---------------------------

Share this post


Link to post
Share on other sites
Bishop

Attach your part here, we'll have a look at it.

Share this post


Link to post
Share on other sites
Bishop

Huh. That's ... interesting.



I think it's got something to do with the sketch that's getting used as a template for the coil feature, but I'm not positive.

Share this post


Link to post
Share on other sites
vkmaynard

I was just told that the plugin does not work with sheet metal parts. Does not make sense.

Share this post


Link to post
Share on other sites
Bishop

Looks to be the case.



As soon as I turned it back into a standard part, Thread Modeler worked out just fine.



That part though, it doesn't really need to use any of Inventor's sheet metal tools, so there's no need to make it as a sheet metal part.

Share this post


Link to post
Share on other sites
vkmaynard

Agree on that part. I do have a sheet metal part that requires bening that has holes. Does not make sense.

Share this post


Link to post
Share on other sites
JD Mather

You can always convert a standard part to sheet metal (or the other way around).

Share this post


Link to post
Share on other sites
Bishop

Once you've used Thread Modeler you can't convert back to sheet metal, JD. Features are incompatible, unfortunately. Although ... this brings up another point: when you convert to .IGS, you're going to be losing all the tooling stuff that Inventor builds into the sheet metal parts. Your flat pattern, bend angles, etc., aren't going to come through. You'll just get a model, so you're really not giving away anything to just make the sheet metal part, then convert to a standard part and do the threads afterwards.

Share this post


Link to post
Share on other sites
vkmaynard

Thanks. I made a backup then converted and threaded. 5 years later ready to send the design for production pricing.
