Autocad 2013 presspull freeze

Recommended Posts

ReMark

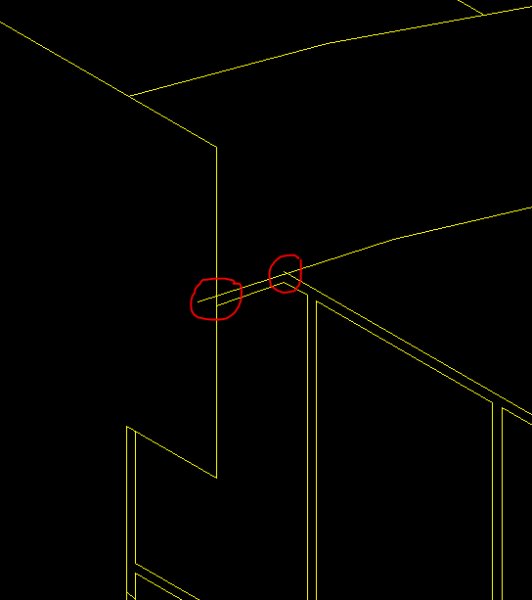

Here is just one example where the underlying geometry is faulty. See the two areas I circled in red? Lines overlap other lines instead of ending cleanly. When AutoCAD encounters something like this it gets confused. It will try to make sense of it but if it can't then it will lock up. Understand?



The other problem for you is that you are probably attempting to use the command on a much larger area of the drawing which means AutoCAD is most likely encountering many more of these anomalies.

Share this post


Link to post
Share on other sites
ckaramfilov

Damn so i need to redraw everything?

Share this post


Link to post
Share on other sites
ckaramfilov

No cant select an object to use it. When i click on the icon next to the extrude box it freezes. I am not trying to do anything on the model. Thats why i think that it can be a sofware problem

Share this post


Link to post
Share on other sites
ReMark

I would try not to redraw everything if I could possibly avoid it. You might however try finding and correcting the problems and working on smaller areas. Since much of your drawing consists of similar objects maybe do one section then copy it how many ever times you need. Follow me?

Share this post


Link to post
Share on other sites
ReMark

If the PressPull command works in another drawing but not this one then it is the drawing that is flawed and not a problem with AutoCAD.

Share this post


Link to post
Share on other sites
ckaramfilov

Yes i follow you. I can make the model without the command using the extrude command but i wanted to use the new one

Share this post


Link to post
Share on other sites
ReMark

In my opinion you could use the PressPull command but you'll have to clean up the geometry first. Then you'll have to work with a smaller subsection of the drawing.



Unfortunately I am in the middle of helping someone about 3000 miles away with a rather more vexing problem (via Skype) so I will have to leave this conversation within the next couple of minutes. However, since this site is open and visited 24 hours a day you might soon be assisted by another forum member so hang in there.



When is this due?

Share this post


Link to post
Share on other sites
ckaramfilov

I have to make the model till monday

Share this post


Link to post
Share on other sites
ReMark

When then you still have plenty of time. I think you can do it but it will take some work.



Sorry, but I have to beg off now. I will check back in the morning (Saturday). Leave a message about what progress you have made before signing off yourself. Good luck.

Share this post


Link to post
Share on other sites
ckaramfilov

Thank you have i nice eavening :)

Share this post


Link to post
Share on other sites
Alzer

Could i make a suggestion..



open autocad and create a new drawing. Determine if the presspull works..



Also from a quick glance at the drawing. As mark suggests. Do some cleaning up on it. If your handy with the trim command. If the lines intersect you can trim them. Esentially creating closed loops.

I would advise not using the 'select all' option due to the fact its freezing up.



Another idea would be to check your graphics tuning. I found from experience with using '3DCONFIG' and changing the settings it can cause the application to lock up

Share this post


Link to post
Share on other sites
ckaramfilov

I am trying to trim atm but the problem is that autocad doesnt want to trim or extend the items

Share this post


Link to post
Share on other sites
Alzer

I would take a quess and say the lines dont actually intersect, were the lines drawn on the same XY plane ??

Share this post


Link to post
Share on other sites
ckaramfilov

i dont know i wasnt me who drew that

Share this post


Link to post
Share on other sites
Alzer

Ah right. Presspull works for me on most of it. Works fine on the geometry in PLAN . On the elevations however i did manage to lock the app up a bit



There is a lot of unneeded geometry in it.

Maybe copy a section of it into a new drawing. Work on one section cleaning it up. You could copy or mirror your work then as a lot of it is the same



By copying a section of it to a new drawing your cutting down on the calculations required for the geometry

Share this post


Link to post
Share on other sites
ReMark

ckara: You've now basically gotten the same advice from two different people. I suggest you start following it. The problem is not with AutoCAD itself but with your geometry.



Looking at the front of the building you have one section that is repeated one additional time (right end of building) and another section that is repeated three additional times. That means you really only have two sections that have to be extruded. You've already reduced your workload by two thirds.

Share this post


Link to post
Share on other sites
