Diameter Extension lines

[Mase123y]

Hi, I want to use diameter extension lines to span the diameter of the circle by forcing the dimension line to be on. When I do that, the arrows are on the outside of the diameter and I want them on the inside so I use the flip arrow command. What happens is the extension line opposite of the dimension text is sticking outside the circle and I want to get rid of it because it just looks bad. I dont see a way of turning off this little extension line. Every thing I turn off doesnt seem to do anything.



[SLW210]

What is DIMATFIT =?

[Mase123y]

My DIMATFIT = 3

[Dadgad]

If you go into your SYSVDLG box you can look up the different settings available for that system variable.

These are the same ones you find when MODIFYING a dimension style in the DIM STYLE MANAGER

on the FIT tab.



Does anybody know where to find the SNIPPING TOOL on Windows 8?

I am lost without it!

[SLW210]

Can you post the .dwg?



I have no problems here getting the lines all inside.

[ReMark]

If you go into your SYSVDLG box you can look up the different settings available for that system variable.

These are the same ones you find when MODIFYING a dimension style in the DIM STYLE MANAGER

on the FIT tab.



Does anybody know where to find the SNIPPING TOOL on Windows 8?

I am lost without it!



For a guy who knows all about SYSVARS.....but can't find the Win8 snipping tool.



https://answers.syr.edu/display/os/Taking+Screenshots+on+Windows+8+-+Using+the+Snipping+Tool+and+keyboard+shortcuts

[Mase123y]

When I use DIMATFIT = 2 then I can get the arrows and lines to be inside the diameters. Thanks

[dbroada]

Does anybody know where to find the SNIPPING TOOL on Windows 8?

I am lost without it!

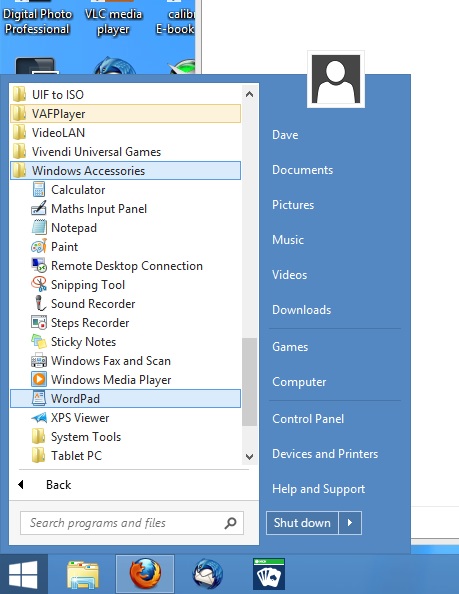

I use Start8 by stardock which gives me a desktop. That allows this....
