Lean-to CAD Shop Drawing


Recommended Posts

Hi,



I am looking for Autocad Shop Drawing with CIS (trapezoidal zinc-coated steel sheet) on timber support support to attach to an open terrace.



Any structural/architectural notes on above is welcomed.

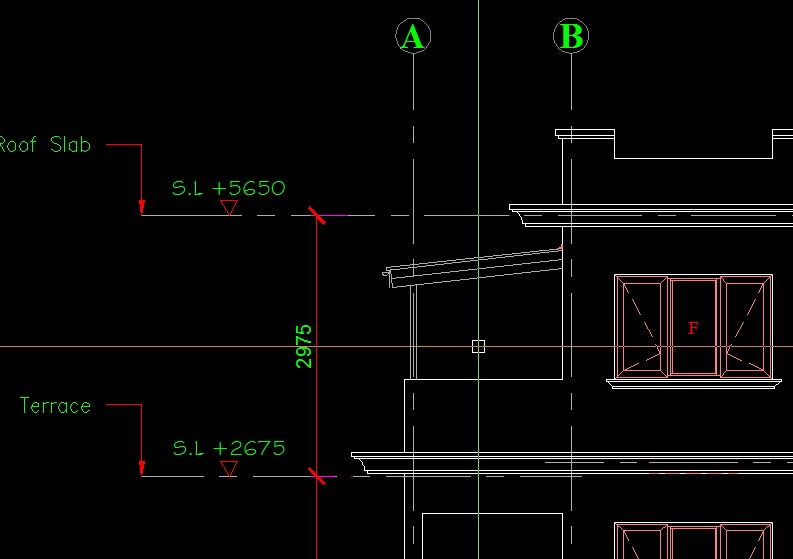

Attached a drawing I am working on. You will note that the gutter/side board/lambrequin is not good at all.



Lean-to CIS on Kewing Timber Support - Side.jpg



Thanks.
