Hex nut / bolt head in isometric


Recommended Posts

Hi all, trying to draw a hex nut in isometric...I've got the ellipse with the inside/outside dimensions but as far as placing the lines and connecting them to make the hexagon perimeter I keep coming up wrong.... any ideas?

Link to comment
Share on other sites

Yes. Draw the bolt in 3D then go to your layout, create a viewport, and choose one of the default isometric views available. If you need a 2D view of a 3D model there are five different ways to accomplish the task using AutoCAD 2014.

Link to comment
Share on other sites

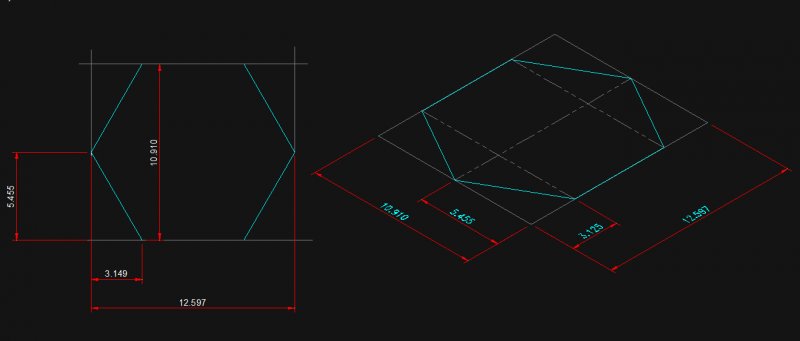

You have to find where non-iso line's endpoints are and connect the dots. Draw a rectangle to enclose the hex, measure where the non-iso lines cross, transfer, connect. See attached.


Or simply draw in 3D. Draw hex, extrude. Switch to iso view, use flatshot, go back to top view...
