FrankG Posted December 2, 2008 Share Posted December 2, 2008 Hello all. I'm new to the forum and don't know the best way to describe the roof I'm trying to create in AutoCAD 09. This is essentially 4 (arcs) that meet at a central point. Between the arcs, the roof follows the profile of the arc to the next one, but other than the shape created by the arcs themselves the roof is still relatively square. I'm relatively new to AutoCAD -- haven't used it in several years -- and I'm building this as a 3D model. I'm a little confused about moving between 2D and 3D and the best way to go aout it. Rough demensions of the roof are 84" at it's lowest point with a rise of 32". Here are some reference photos: Quote Link to comment Share on other sites More sharing options...
fuccaro Posted December 2, 2008 Share Posted December 2, 2008 My job is mechanical so I my be wrong. It seems to me that is the intersection of two equal cylinders that met at 90deg. Quote Link to comment Share on other sites More sharing options...
nocturne00 Posted December 2, 2008 Share Posted December 2, 2008 Had a tough time in using solids to come up with that. I hadnt tried out fuccaro's suggestion yet but Using surfaces seems to be the only way to get the shape. I Used edgesurf using the profile of the roof. also used loft but it wasnt too accurate. Quote Link to comment Share on other sites More sharing options...

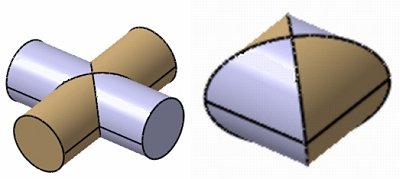

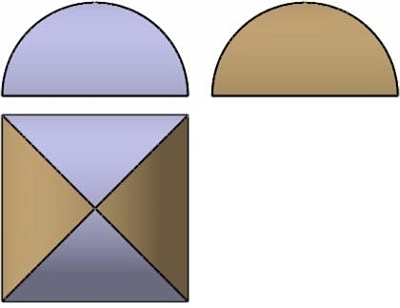

fuccaro Posted December 2, 2008 Share Posted December 2, 2008 see here what I meant: Draw two cylinders and intersect them. Cut the result in half keeping only the upper part Is it close enough what you need? Quote Link to comment Share on other sites More sharing options...
nocturne00 Posted December 2, 2008 Share Posted December 2, 2008 Ok... that was incredibly easy :D ***Scratch my post Quote Link to comment Share on other sites More sharing options...
ReMark Posted December 2, 2008 Share Posted December 2, 2008 I was blind but now I can see. Thanks for opening my eyes fuccaro! Quote Link to comment Share on other sites More sharing options...
fuccaro Posted December 2, 2008 Share Posted December 2, 2008 Thanks for your comments. You made me a good day! Looking again at the images: maybe it should start from elliptical cylinders? Or the solid resulted from regular (circular) cylinders should be scaled down in one direction? Quote Link to comment Share on other sites More sharing options...
FrankG Posted December 2, 2008 Author Share Posted December 2, 2008 Brilliant fix. I agree, these shouldn't be perfectly round. I think it would be a 84"w x 64"h cylinders with the height cut in half to get the 32" final height! I'll let you know how it goes once it's in place on the actual model. Quote Link to comment Share on other sites More sharing options...

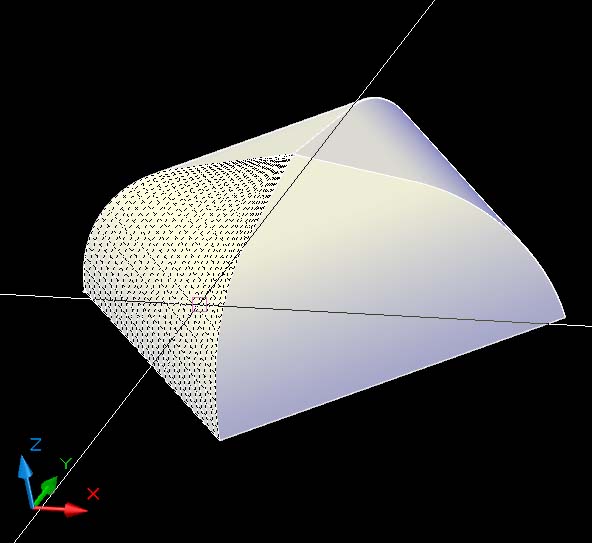

FrankG Posted December 2, 2008 Author Share Posted December 2, 2008 As you can see, the cylinder solution was perfect. Now I can keep going on the model! Note, there's not a ton of detail here because the 3D model is actually for a 1:160 plastic reproduction, so I need to include only what can be manufactured effectively. Quote Link to comment Share on other sites More sharing options...
