JD Mather

Add an angle constraint and then Drive Constraint

or

in Environments>Dynamic Simulation add a Rolling Cylinder on Cylinder joint and then Imposed Motion on Revolution joint.



If you can't figure it out - simply attach your assembly here.

Link to post
Share on other sites
Faouweb
Add an angle constraint and then Drive Constraint
I don't know how to do it :(





in Environments>Dynamic Simulation add a Rolling Cylinder on Cylinder joint and then Imposed Motion on Revolution joint.

We don't have Inventor Pro :cry:

I have attached 2 Parts and 1 Assembly.

Thank you ;)

Assembly1.zip

Spur Gear test.ipt

Part8.ipt

Link to post
Share on other sites
JD Mather

You have attached the wrong files which will result in a delay in getting an answer.

Have you installed all Service Packs for r2013? (the correct answer is - no)

Link to post
Share on other sites
Faouweb

Hi Mather,

The file is a little bit big and I can not attached it, I used Pack and go but is still big.

I will put the Assembly and the Part in the attachment.

Here is what I have.










I did not installed it my self, we have a staff in the company which have access in order to install or modify applications.





---------------------------- Edit ---------------------

Is there a step by step tutorial to do it ?

Thank you :)

Part1.ipt

Design Accelerator.zip

Assembly1.zip

Edited by Faouweb
Link to post
Share on other sites
JD Mather

Step 1

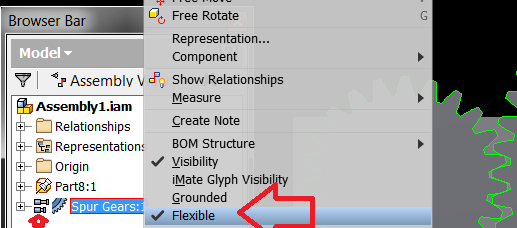

Right click on you Design Accelerator sub-assembly and set it to Flexible as shown below.






You should now be able to drag the gear motion.

Next I will demonstrate how to Drive the motion.



(also notice in the image above your assembly references Part8, yet you attached a Part1?)

Link to post
Share on other sites
Faouweb

I am so happy to see the Gears rotating, but I want to add some Gears and V-Belt to make something more complicate.

How can I add Gear or V-Belt to existing one, I have tried but I am sure it's not a the good way to do it :sweat: as you can see in the picture:

http://s10.postimg.org/hk0b8baax/belt.png

Thank you :)

Link to post
Share on other sites
JD Mather

Notice that your gears created by the Design Accelerator are placed in a special sub-assembly in the browser and must be created in pairs.

I simply drill down and get the *.ipt files and use these like any other parts in my own assemblies and sub-assemblies.

Link to post
Share on other sites
