2D or 3D Sketch

[spiker7221]

I'm new to Inventor 2014 and am having trouble with it's capabilities.

I have a vertical part..rotated in several directions (see below). The top and bottom needs to be level with the ground plane when all is done. Chopped flat.



Plan view - rotate it 37.023 degrees

South elevation - rotate it 2.46 degrees to the left.

West elevation - rotate it 8.75 to the right.



I tried to create a 3d void in the South view, but it first needs a plane to start.....which is rotated and skewed a bit. Can I project a sketch in the South view and use as a void to remove from the piece?



Thanks for any help.

Mike

Test corner vertical.ipt

[JD Mather]

There were no dimensions in Sketch1?

I got lost from there.

[spiker7221]

There were no dimensions in Sketch1?

I got lost from there.

So sorry for that. I figured it out. I created a plane by using Angle to Plane Around Edge. I enabled the visibility of my XZ plane and Z axis. Worked like a charm.



Here's my end result. What do you think?



Thanks for your reply,

Mike in Dallas

Test corner vertical REV 2.ipt

[JD Mather]

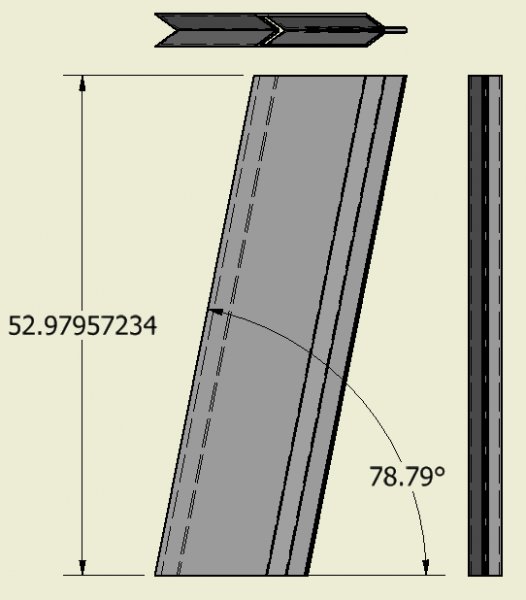

2D drawing view



[JD Mather]

I assume you are going to use some assembly constraints.

This might be an interesting solution (see attached).



Test Corner_JD.ipt
