How to switch from 2D Wireframe views to nomal orthogonal view in AutoCAD 2014


Recommended Posts

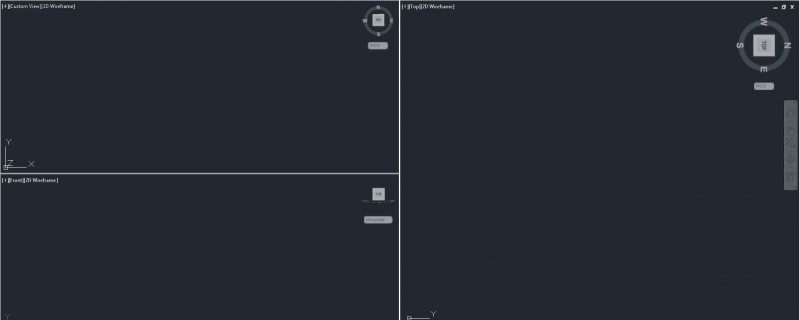

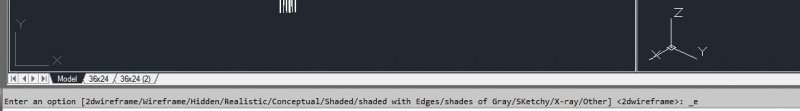

How can I switch from 2D Wireframe views to nomal orthogonal view? Is this possible? I received the drawing from the vendor that was drawn in 2D wireframe of some sort, the obj was shown in 3 windows on the screen (See attach pic), i spent sometime to just change back to 2D view but no luck, i tried to click on top letter "2D wireframe" and tried different option but it didn't work the way i want to. The drawing is big size and always said " no responding" when i switch to other view. I just want to get Top, Front and right views. to be honest i don't know much about 3D autoCAD besind a little knowlegde about inventor. Appreciate any suggestion.

3D wire.jpg

2D wireframe command prompt.jpg

Link to comment
Share on other sites

If you click on the VIEWPORT controls in the upper left corner,

you can choose a new visual style, or a new Perspective, there are 3

controls there, the center one will control your perspective.

Each of these modelspace viewports can be operated independently,

as you are no doubt already aware.

You can also opt for a perspective or parallel view,

and if you select Maximize viewport (in the left most + drop down menu), you will go back to having a single viewport.
