Stanier Posted August 20, 2014 Share Posted August 20, 2014 Hello - I am trying to draw up a globe valve for a model steam fitting and am having trouble in finding out how to blend two radii. Essentially the globe valve is a 7/16" diameter sphere with two inline connections at 180 degrees at 1/4" and 3/16" diameters respectively. My query is this. How do I blend (if that is the term) the central globe into the 180 degree connections to give that professional appearance and avoid the lolly pop-on-a-stick appearance. Kind regards Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 20, 2014 Share Posted August 20, 2014 Is this a 2D or 3D drawing? Quote Link to comment Share on other sites More sharing options...
Stanier Posted August 20, 2014 Author Share Posted August 20, 2014 This is a 2D drawing Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 20, 2014 Share Posted August 20, 2014 Perhaps use the Circle command and the tan-tan-radius option? Post an image of what you have or attach a copy of the drawing to your next post. Quote Link to comment Share on other sites More sharing options...

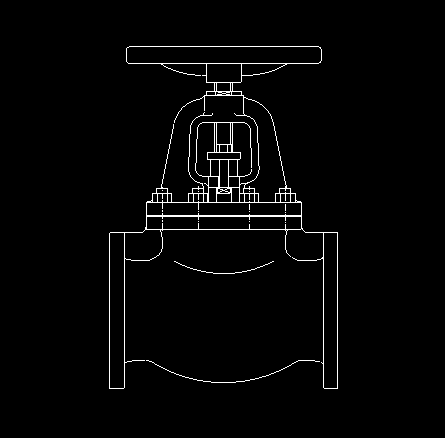

ReMark Posted August 20, 2014 Share Posted August 20, 2014 Here is an example of a 2D globe valve we've used on one of our steam mains. And here is an example of a 2D globe valve we've used on our cooling water lines. Both blocks were downloaded from another website and not created in house. Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 20, 2014 Share Posted August 20, 2014 Stanier: Did you get your globe valve drawn? Can we see an image? Thanks. Quote Link to comment Share on other sites More sharing options...
