AlbatiQue Posted August 29, 2014 Share Posted August 29, 2014 Hey I am a new user to autocad Inventor and already watched a lot of tutorials. So I really start to get the hang of it. Now i'm trying to make a barbecue design but I don't really find how to solve the legs. As you can see the ends have two different end angles. And how I can make this part one time and then divide it in two separate parts? It's mainly the sweep part I got problems with, the circular pattern thing I know how to do. How would u guys tackle this problem? Thanks Quote Link to comment Share on other sites More sharing options...
JD Mather Posted August 29, 2014 Share Posted August 29, 2014 (edited) Attach your *.ipt attempt here. Edited August 29, 2014 by JD Mather Quote Link to comment Share on other sites More sharing options...
AlbatiQue Posted August 29, 2014 Author Share Posted August 29, 2014 Hey, Thanks a lot for your help. I included the file in the attachment. legs_bbq.ipt Quote Link to comment Share on other sites More sharing options...
JD Mather Posted August 30, 2014 Share Posted August 30, 2014 Try going through this http://www.cadtutor.net/forum/showthread.php?85808-Inventor-101 and then I will post my example in a couple of days. Quote Link to comment Share on other sites More sharing options...

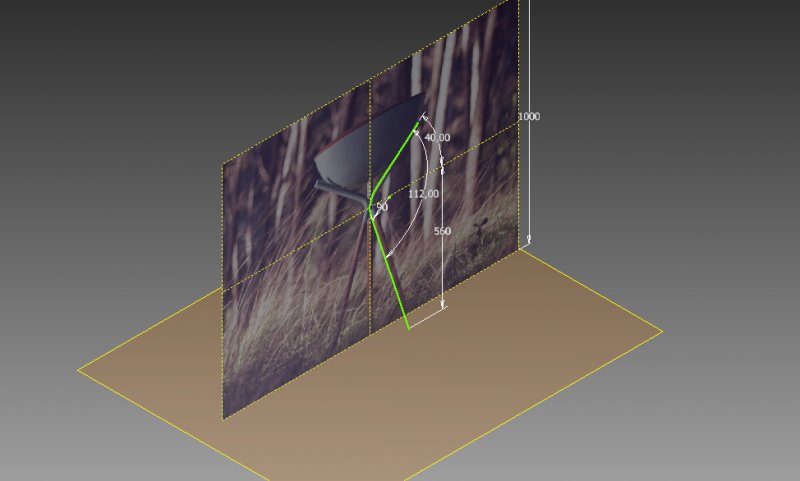

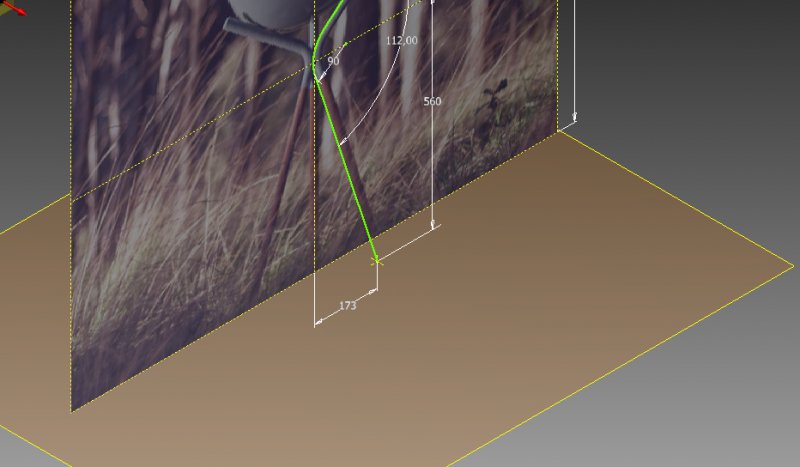

AlbatiQue Posted September 3, 2014 Author Share Posted September 3, 2014 Hey, I tried some other things but did not seem to work out as smoothly as I want. I tried to use the draft tool to make them angles right. Seems like i'm also having a problem constraining all the elements. Thanks Quote Link to comment Share on other sites More sharing options...
